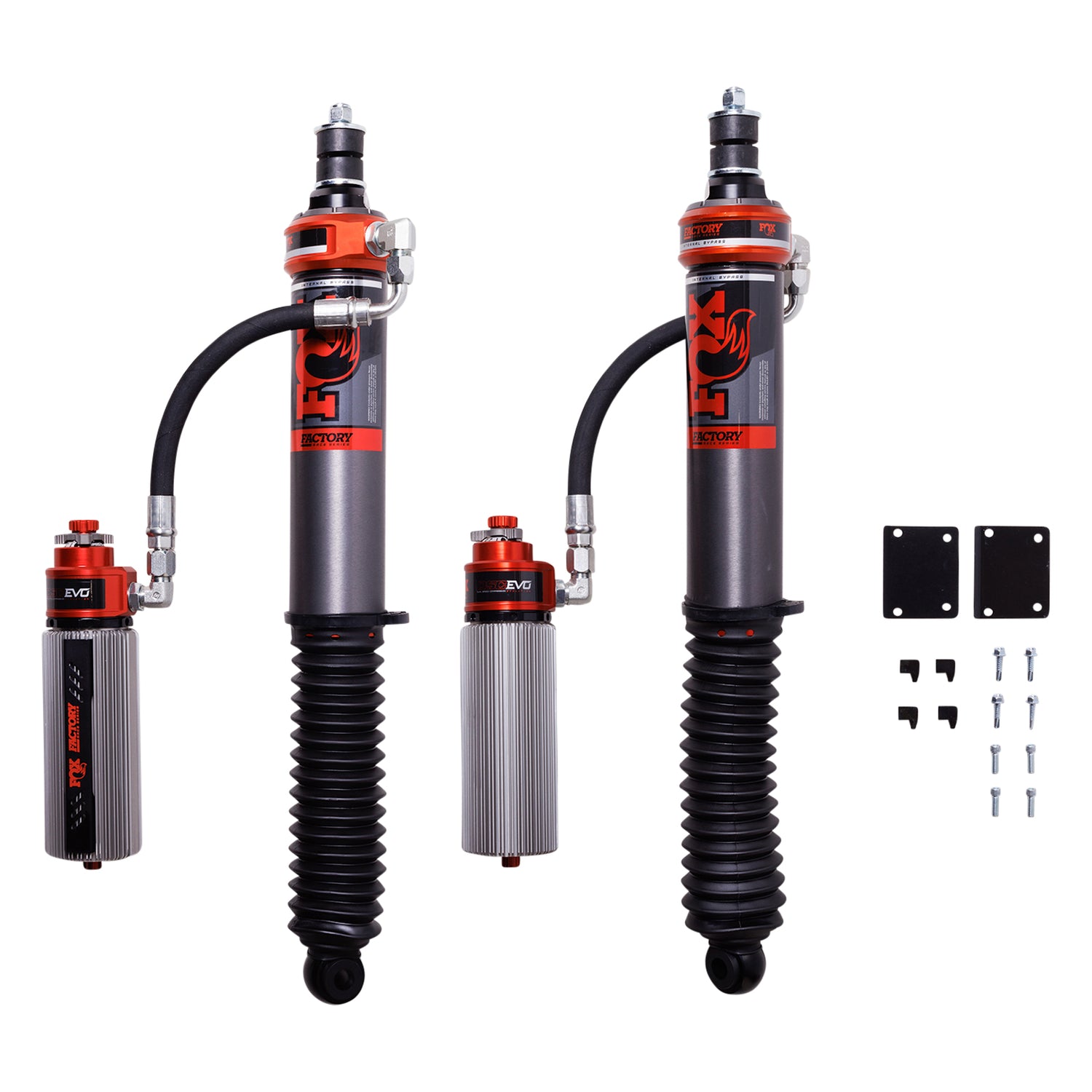

2024-2026 4Runner & Land Cruiser Rear 0-2" Factory Race Series 3.2 Internal Bypass Reservoir Shock w/ DSC EVO (883-26-169)

Description

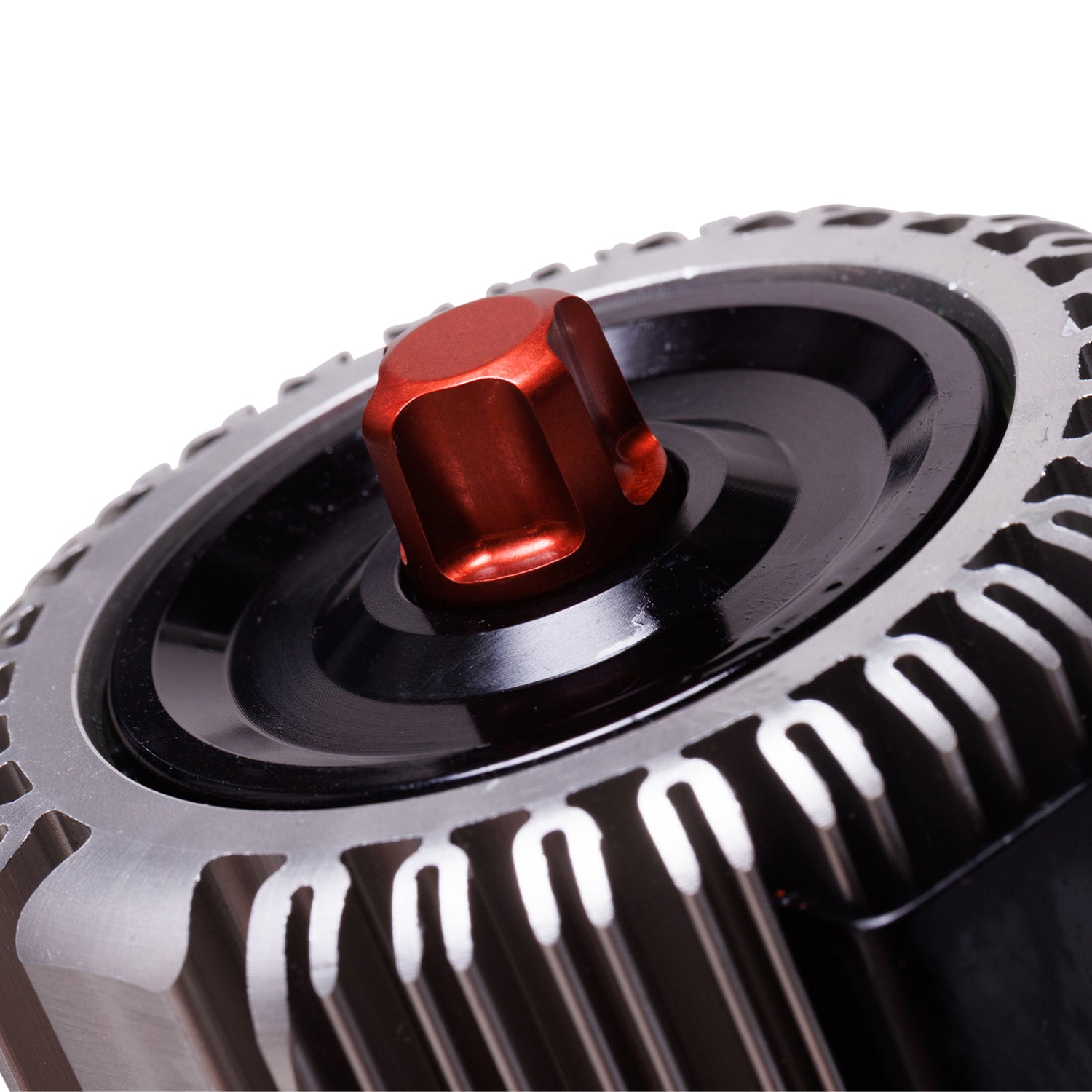

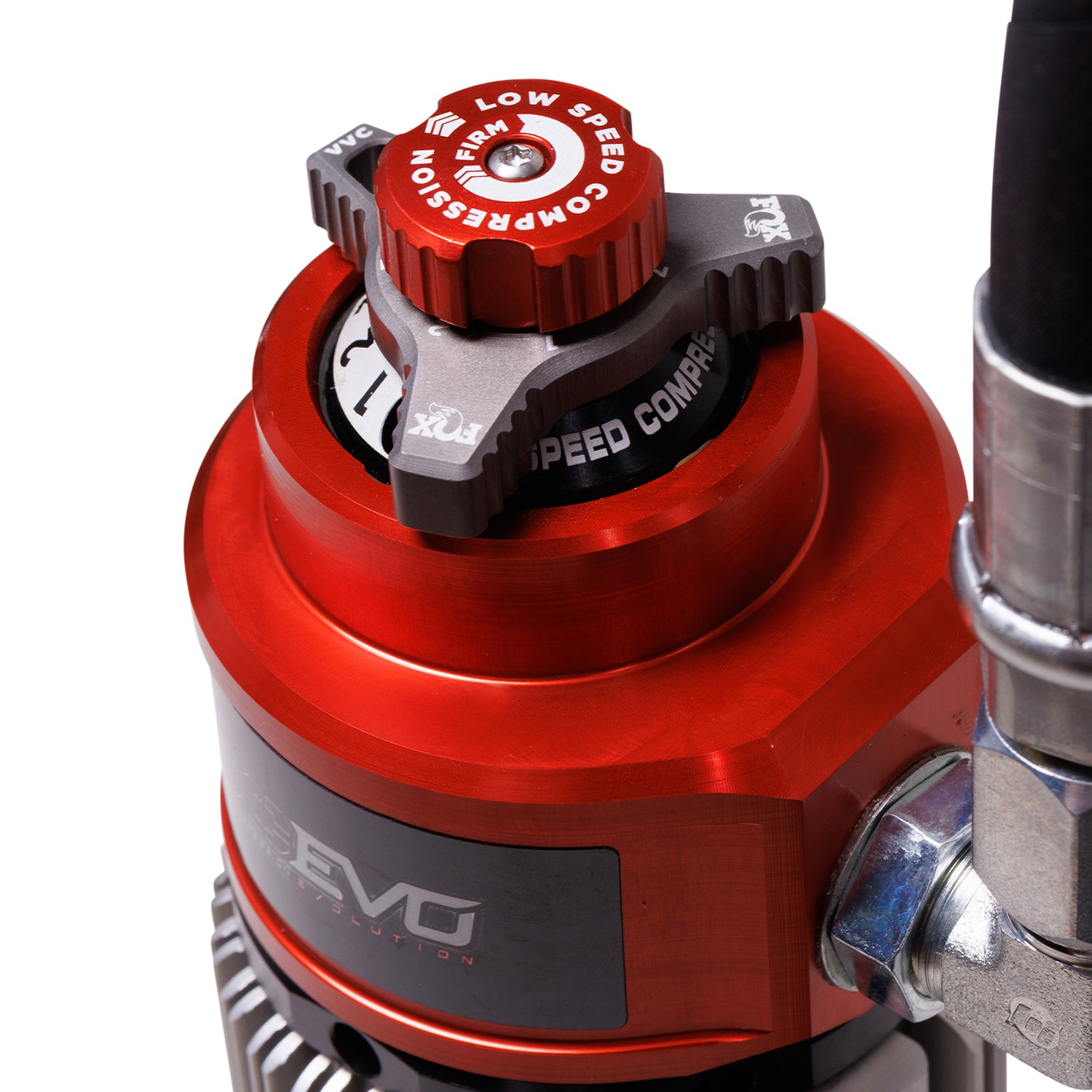

FOX Factory Race Series 3.2 Internal Bypass shocks for the LC250, GX550 and 4Runner chassis deliver velocity and position-sensitive damping, Dual Speed Compression Evolution (DSC EVO) adjustment and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows multiple zones of damping control, giving a comfortable, confident ride with increased damping force through rough terrain. Shock fluid bypasses the main piston through bleed holes in the ride zone; as the shock extends past that zone the bleed holes terminate, forcing fluid through the main piston to control hard bottom-outs and prevent harsh top-outs. Type II anodization protects the 3.2-inch aluminum bodies from corrosion and wear, while finned reservoirs increase oil capacity and house the IFP and DSC EVO adjuster. DSC EVO uses Variable Valve Control on the high-speed circuit, adding high-speed compression without preloading the shim stack or sacrificing small-bump sensitivity.

Part Number: 883-26-169

Features

• 3.2" impact-extruded and CNC-machined 6061-T6 Type II anodized aluminum body
• Position- and velocity-sensitive damping maximize control through any terrain.
• Patented, internal bypass design Finned remote reservoir with DSC EVO adjuster
• Application-specific springs and vehicle-specific tuning maximizes performance.
• 7/8" hard chromed steel shafts
• Redundant sealing pack system: main seal, wiper seal, scraper seal

Installation

Click here for installation instructions
