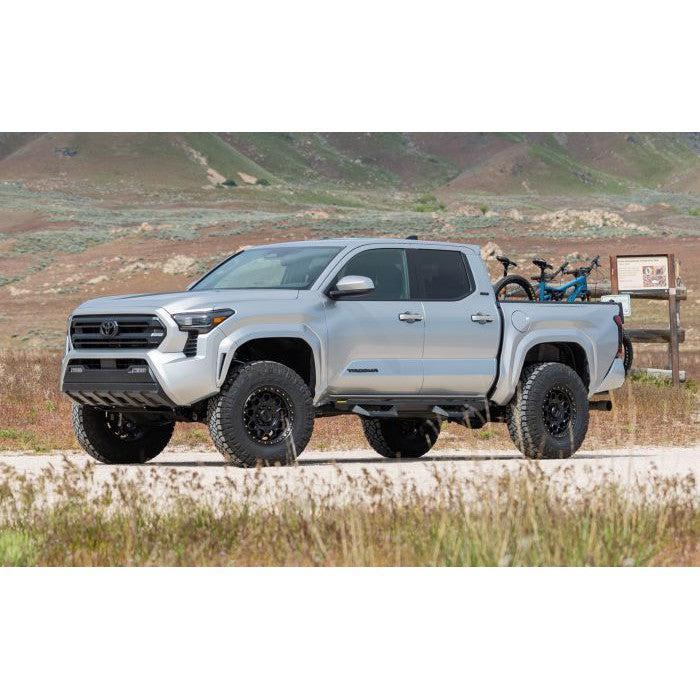

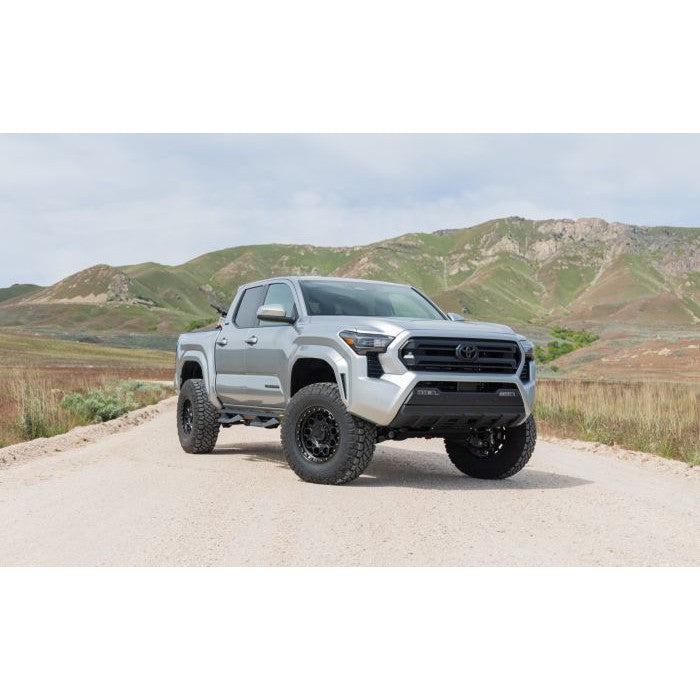

2024 Tacoma 3" SST Lift Kit w/ Falcon 1.1 Monotube Shocks (69-54320)

Description

Part Number: 69-54320

Features

• Bolt-on installation – no modifications required
• 3” front lift with 2” rear coil spring spacers
• Rear Falcon 1.1 Monotube Shocks
• Includes strong tubular steel Upper Control Arms
• HD high-angle proprietary ball joints
• No cutting of OEM parts or welding
• Maintains factory ride quality

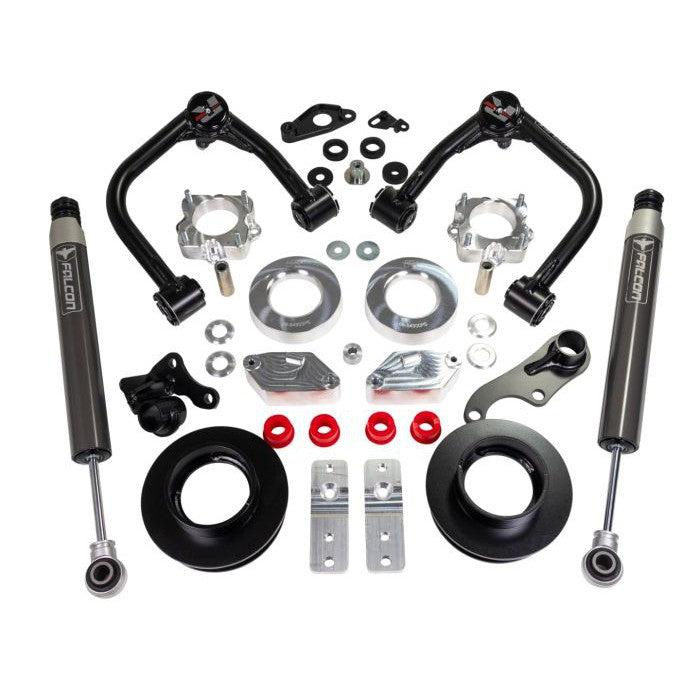

Includes:

• x2 - Hardened steel washer
• Differential Rear Spacer
• x4 - Front Differential Spacer
• 3/8" Laser cut washer
• Rear brake line bracket
• 1/8" Laser cut washer
• Front Differential drop CTR sleeve
• x2 - Front Differential drop CTR bushing
• Front center differential drop

• x2 - 0.87" OD X 0.56 ID X 2.65"L crush sleeve
• x4 - 1.52" OD X 0.85"ID polyurethane bushings
• Left & Right front differential drops
• Left & Right bump stop extensions
• x2 - RR swaybar bracket
• x2 - FR Preload spacer
• x2 RR shock extension crush sleeve
• Left & Right UCA assembly
• Left & Rigth RR shock extension
• x2 - RR 2" spring spacer
• x2 - Front strut spacer

• All necessary hardware

Additional Info

Wheel & Tire Fitment:

• Stock (17x7 +60) 285/70R17 No Trim (Widest tire you can put on, Knuckle clearance)
• Allows for up to 285/75R17 on an 8" wide and +35 offset

• Allows for up to 295/55R20 on an 8.5" wide and +35 offset

• Allows for 315/70R17 with minor trimming

• Allows for 35x12.50 R17 with minor trimming

• 17x8 +35 285/70R17 No Trim
• 17x8 +35 285/75R17 No Trim
• 17x8.5 +47 285/70R17 No Trim
• 17x8.5 +47 285/75R17 No Trim
• 17x8.5 +25 285/70R17 No Trim
• 17x9 +1 285/70R17 May require trimming. (4mm clearance)

Tire Size Comparison:

• 18x8 +35 - 285/65R18 No Trim
• 18x8 +35 - 285/70R18 No Trim
• 18x8.5 +47 - 285/65R18 No Trim
• 18x8.5 +47 - 285/70R18 No Trim
• 18x8.5 +25 - 285/65R18 No Trim
• 18x9 +1 - 285/65R18 May require trimming. (4mm clearance)
• 20x8.5 +35 - 295/55R20 No Trim
• 20x9 +18 - 295/55R20 No Trim
• 20x9 +1 - 295/55R20 May require trimming. (4mm clearance)

Notes

• Kit does not fit Tacoma’s equipped with rear leaf springs, TRD PRO, and Trail Hunter. ReadyLIFT has not tested or confirmed fitment on the optional sway bar disconnect.

Installation

• ReadyLIFT Suspension Inc. and/ or Dirty Diesel Customs LTD is NOT responsible for any damage or failure resulting from improper installation
• Click Here to view installation instructions
