2024 Tacoma 3" 2.1 SST Lift Kit w/ Falcon 2.1 Shocks (62-54340)

Description

This ReadyLift 3" 2.1 SST Lift Kit offers the ideal balance of a modest yet aggressive stance without compromising factory ride and handling, effectively maintaining proper geometry and smooth articulation. Featuring DOM tube steel upper control arms with corrected ball joint angles gives you superior strength and flexibility. These components open the wheel wells up to allow the installation of larger wheels and tires!

Part Number: 62-54340

Features

• 3” front lift with 2” rear coil springs
• Skid plate upfront and rear springs
• Includes strong tubular steel Upper Control Arms
• HD high-angle proprietary ball joints
• Smart Suspension Technology “no-cut” lift kit

• Falcon shock absorber systems are tuned for comfort with predictive handling
• Rear adjustable 3-position Falcon 2.1 shocks are tuned for daily, sport, or work
• Falcon 2.1 Monotube Dampers
• Improved dynamic roll control and low-speed damping

• Optimized fitment for unobstructed suspension travel and articulation
• 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• Smooth-honed internal shock body surface for long-term performance.
• 3/4” induction-hardened chrome-plated shaft resists rock damage, corrosion, and shaft buckling
• Large shaft diameter provides a wide range of adjustments on adjustable shocks
• Hard anodized 6061-T6 aluminum alloy billet piston
• 1-piece Teflon bronze piston wear band w/ O-ring

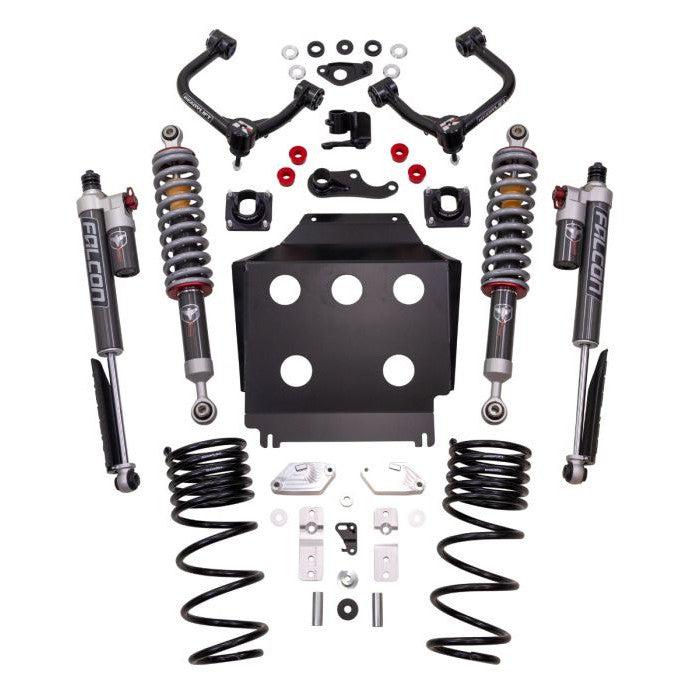

Includes:

• RR Swaybar bracket
• RR SPRG
• Skid Plate
• Front & Rear differential spacer
• 3/8" Laser cut washer
• Rear brake line bracket
• 1/8" Laser cut washer
• Front Differential drop w/ crush sleeve & bushing
• Front Center Differential drop
• 0.87" OD X 0.56 ID X 2.65"L Crush sleeve
• 1.52" OD X 0.85"ID Polyurethane bushing
• Left & Right front differential drop
• Left & Right RR Front differential drop
• Left & Right Front UCA assembly
• Front coilovers, SRS 2 TYP 1
• Left & Right RR Dampener, SRS 3 TYP 2

• Hardened steel washers
• All necessary hardware

Additional Info

Wheel & Tire Fitment:

• 285/75R17 on an 8" wide and +35 offset
• 295/55R20 on an 8.5" wide and +35 offset
• 315/70R17 with minor trimming
• 35x12.50 R17 with minor trimming

• Stock (17x7 +60) 285/70R17 No Trim (Widest tire you can put on, Knuckle clearance)
• 17x8 +35 285/70R17 No Trim
• 17x8 +35 285/75R17 No Trim
• 17x8.5 +47 285/70R17 No Trim
• 17x8.5 +47 285/75R17 No Trim
• 17x8.5 +25 285/70R17 No Trim
• 17x9 +1 285/70R17 May require trimming. (4mm clearance)

Tire Size Comparison:

• 18x8 +35 285/65R18 No Trim
• 18x8 +35 285/70R18 No Trim
• 18x8.5 +47 285/65R18 No Trim
• 18x8.5 +47 285/70R18 No Trim
• 18x8.5 +25 285/65R18 No Trim
• 18x9 +1 285/65R18 May require trimming. (4mm clearance)
• 20x8.5 +35 295/55R20 No Trim
• 20x9 +18 295/55R20 No Trim
• 20x9 +1 295/55R20 May require trimming. (4mm clearance)

Notes

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.

• Click Here to view installation instructions
