2025-2026 Ram 1500 4" Lift FOX 2.5 Performance Elite Coilover (BDS2116FPE)

Description

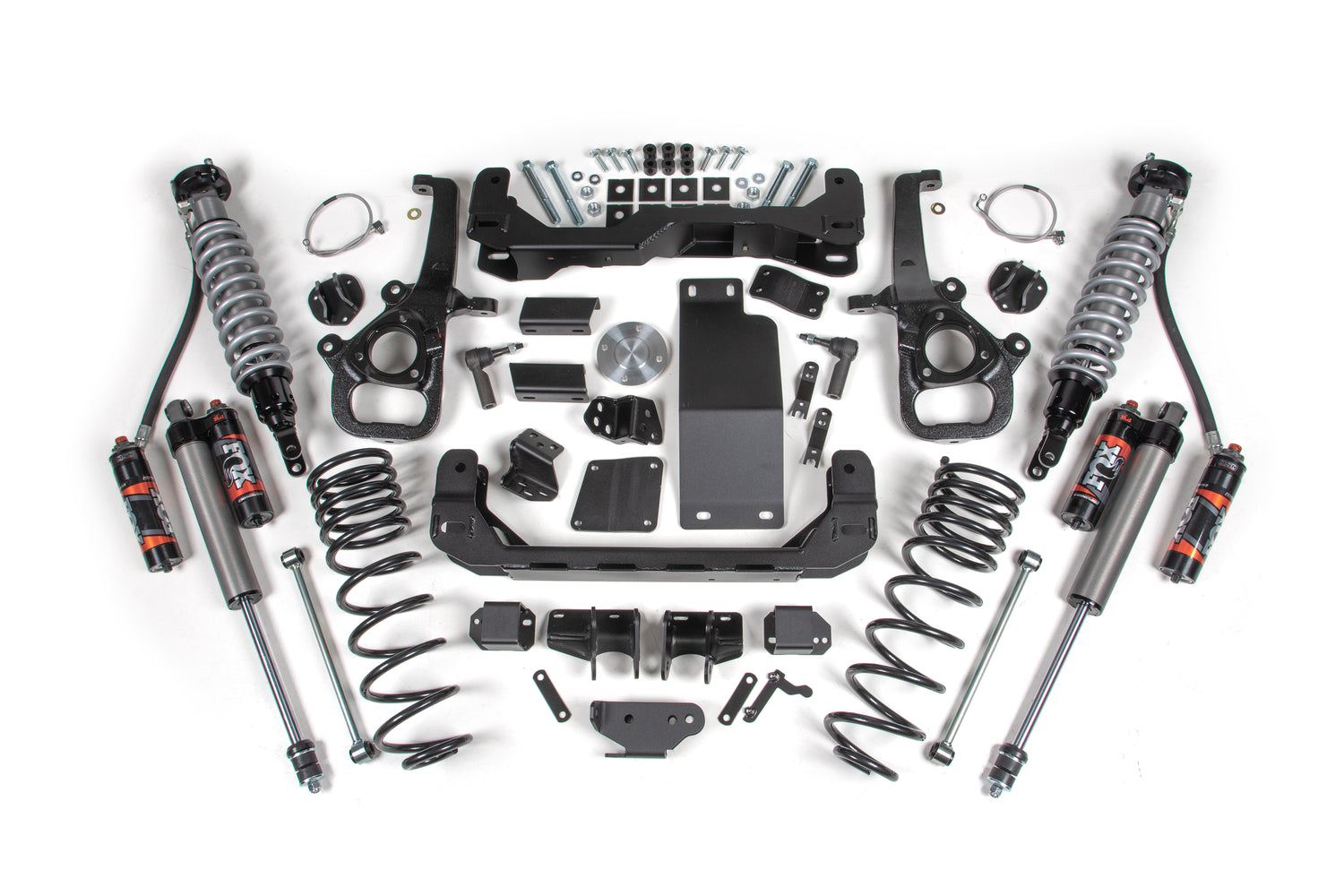

Elevate your Ram 1500 with BDS Suspension's 4" lift system, featuring FOX 2.5 Performance Elite coil-over shocks. This precision-engineered kit combines aggressive ground clearance with advanced damping technology, enabling confident off-road exploration while maintaining composed highway manners. The FOX Performance Elite platform delivers extended suspension articulation and responsive bump absorption across varied terrain, transforming your truck into a capable adventure platform without sacrificing daily drivability.

Features

• The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.

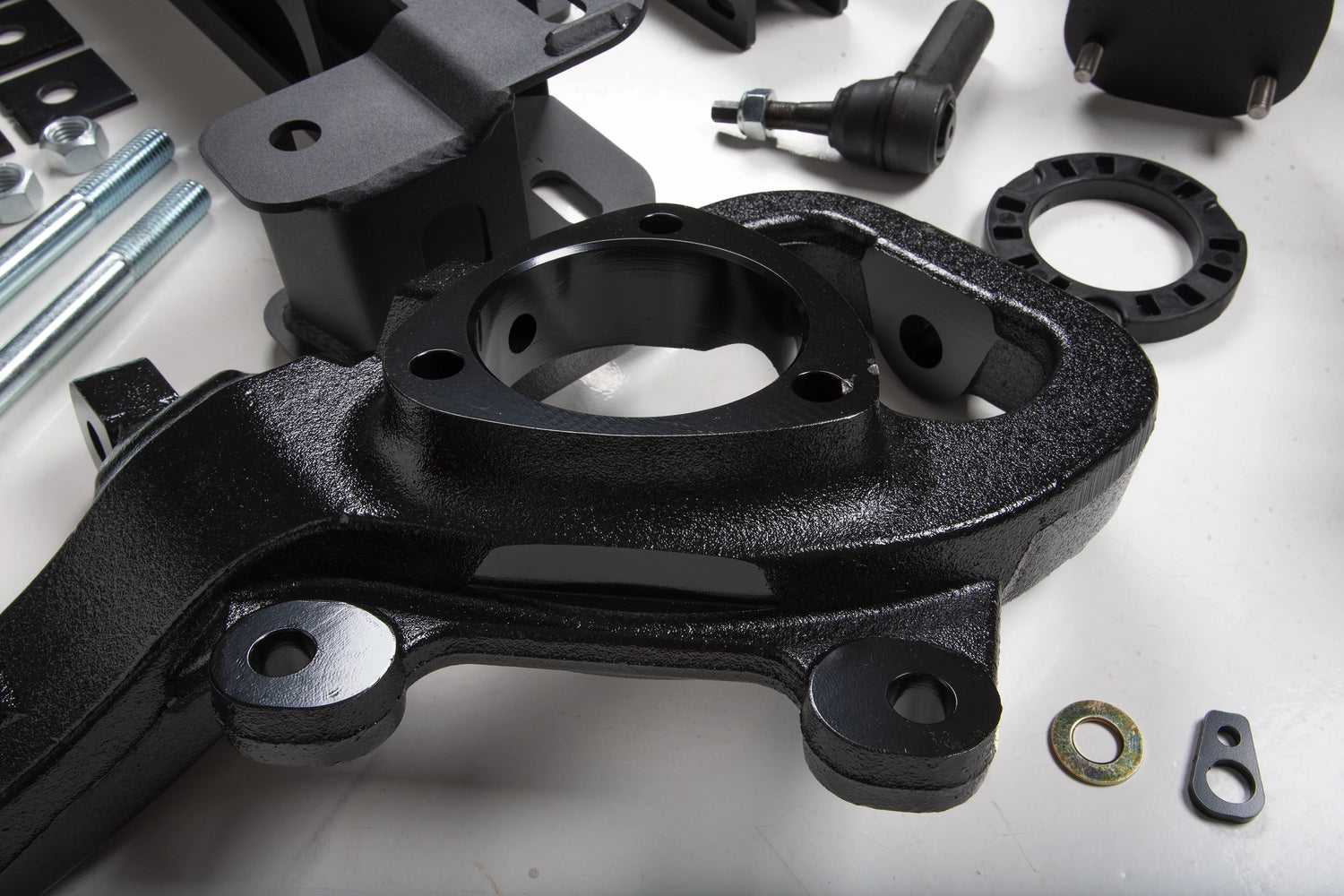

• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance.

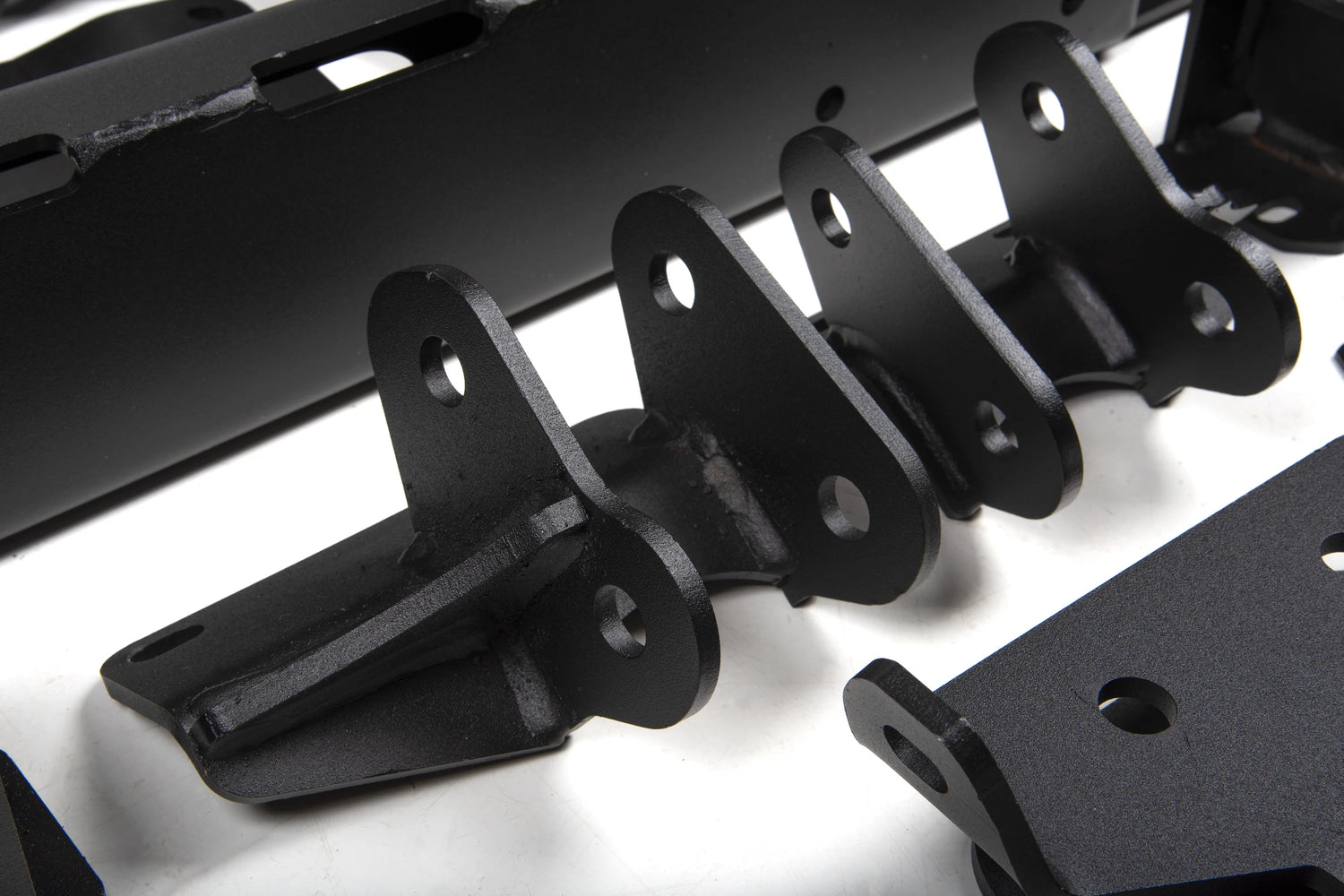

• HD skid plate system improved offroad protection Multipoint differential relocation brackets to secure the front axle and improve CV angles.
• Standard Bore Knuckle
• Factory Protection Plus drivetrain warranty included


Shock features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Notes

• Disconnect BOTH batteries (if equipped), Main and Auxilary before performing install
• Included Replacement front brake lines (22545) do not work on 2025 model year trucks
• Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance

Compatibility Notes

• Fits 4WD models only.
• Fits models with 3.0L Hurricane I6 engines and models with 3.6L V6 engines.
• Will NOT work on diesel models.
• Will NOT fit models equipped with the Thermal Axle option
• Will NOT fit adjustable "air ride" suspension equipped models.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 4"

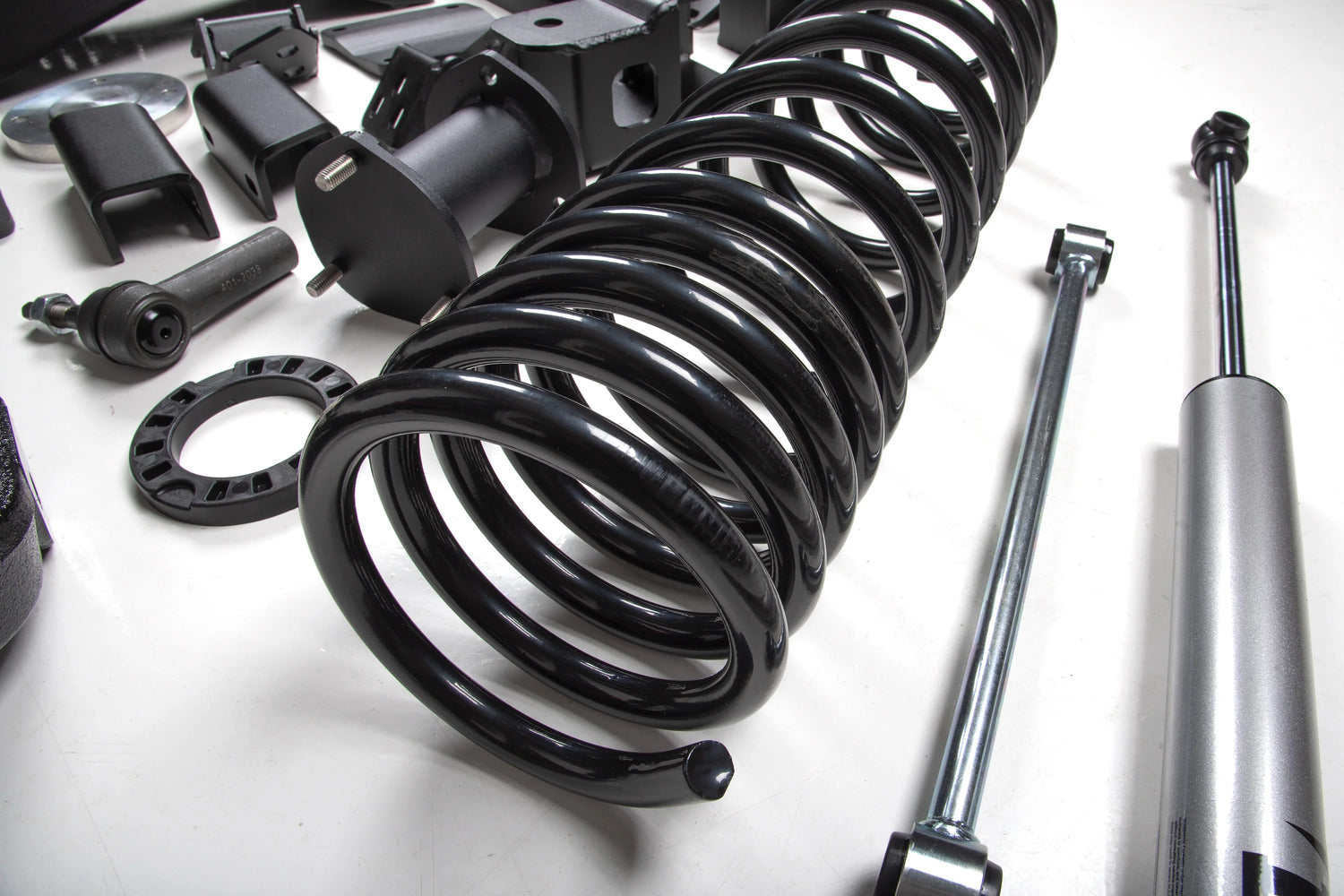

• Rear Lift Method : Coil Spring
• Rear Lift Height : 3"
• Shocks Included : Yes
• Lift Height : 4-5.5"

Tire Fitment

• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and in. Backspace
