2025-2026 Ram 1500 6" Lift FOX 2.5 Performance Elite Coilover Kit (BDS2115FPE)

Description

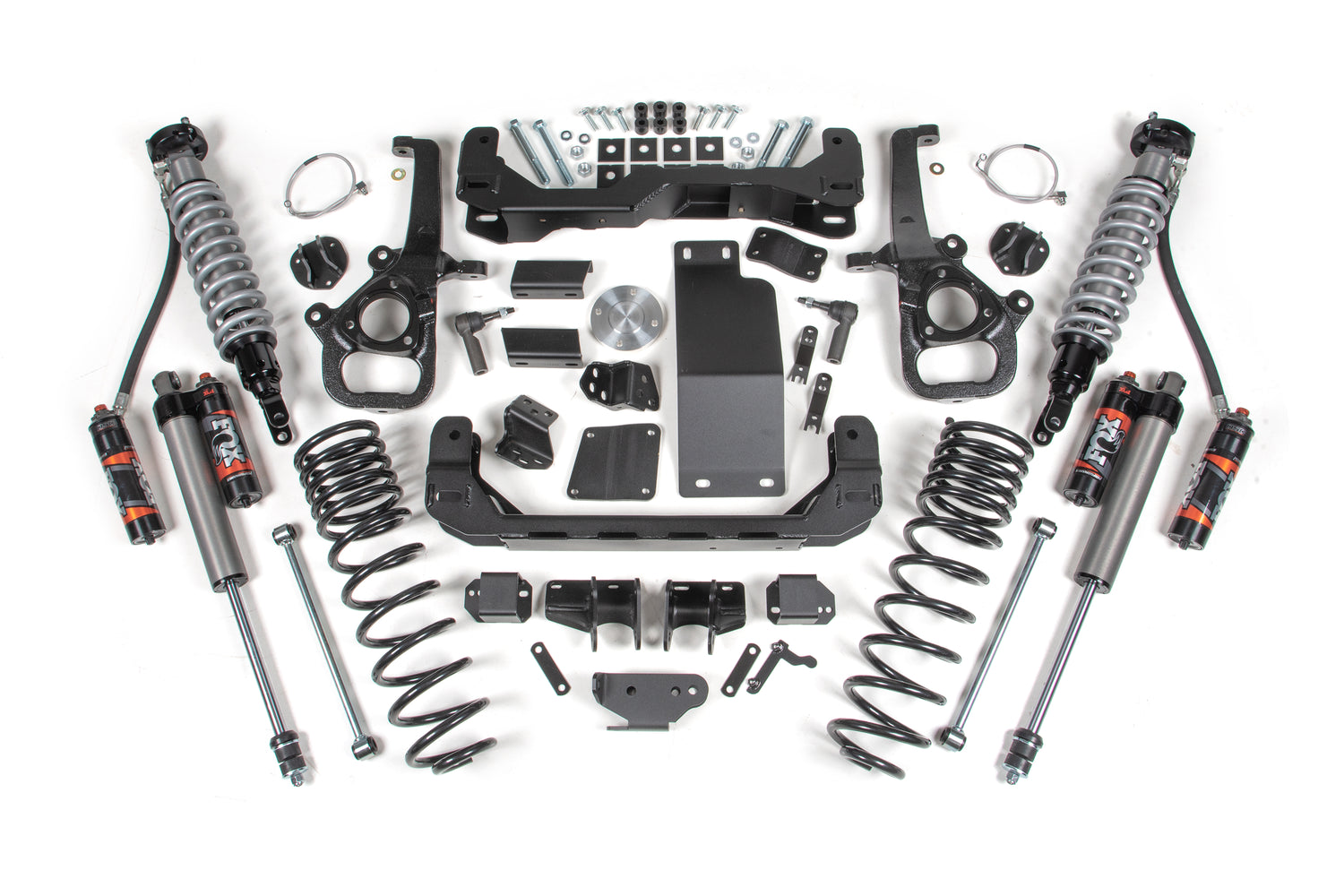

This 2025-2026 Ram 1500 6" Lift FOX 2.5 Performance Elite Coil-Over Kit by BDS Suspension is a complete suspension lift upgrade designed to enhance off-road capability, ground clearance, and handling. Featuring proprietary FOX 2.5 Performance Elite coil-over shocks, the kit delivers superior travel and comfort on and off-road. It includes all necessary components for proper installation and improved suspension and steering geometry, providing compatibility with large 37" tires.

Features

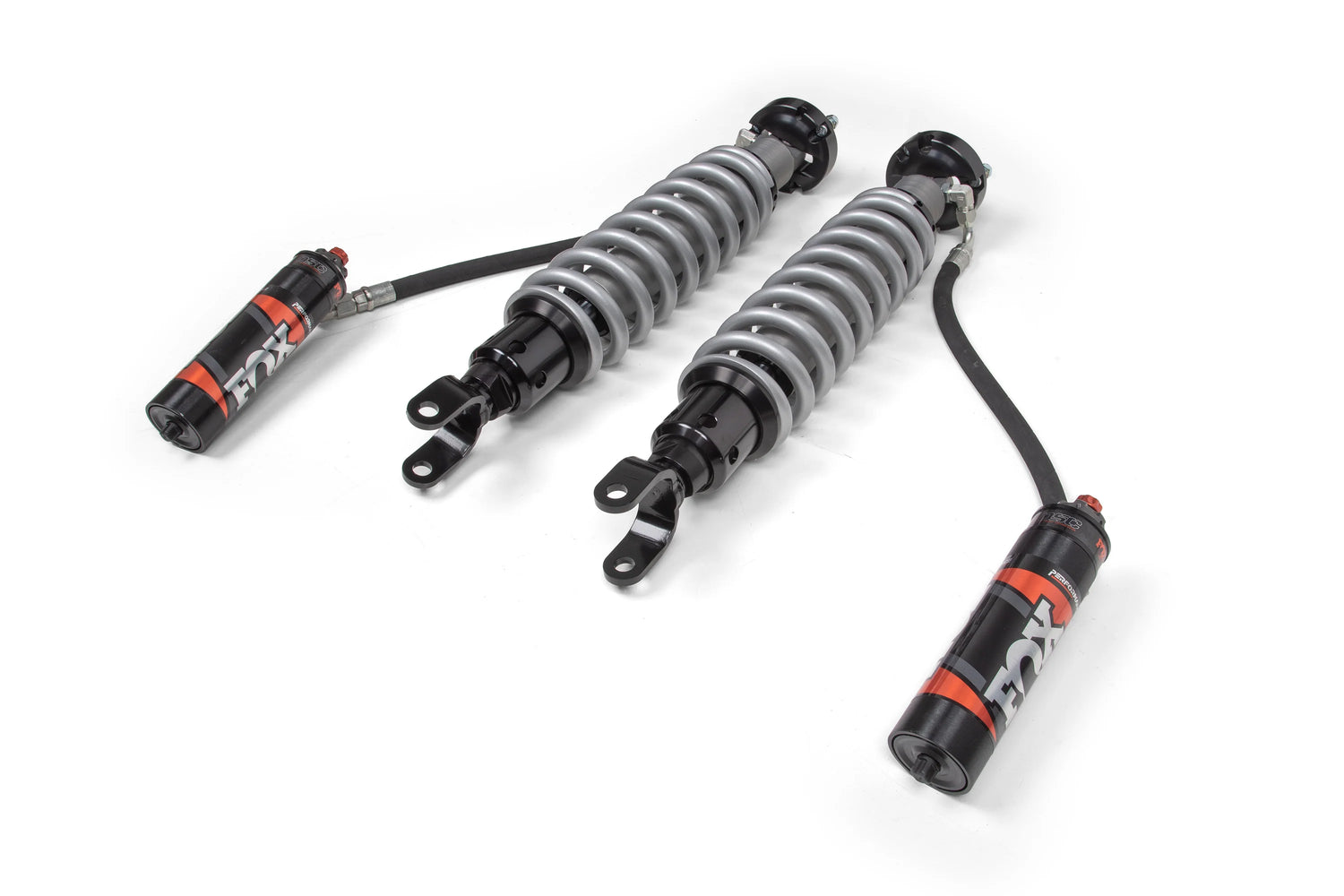

• Fox 2.5 Shocks designed specifically for increased travel and the ability to soak up the roughest terrain.
• The DSC (dual speed compression) adjuster adds remarkable versatility and precise tuning with a simple twist of one or both knobs.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance.
• HD skid plate system improved offroad protection Multipoint differential relocation brackets to secure the front axle and improve CV angles.
• FOX performance series IFP gas rear shocks to improved ride and offroad performance.
• Factory Protection Plus drivetrain warranty included

• Large Bore OE Knuckle Type

Shock Features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen

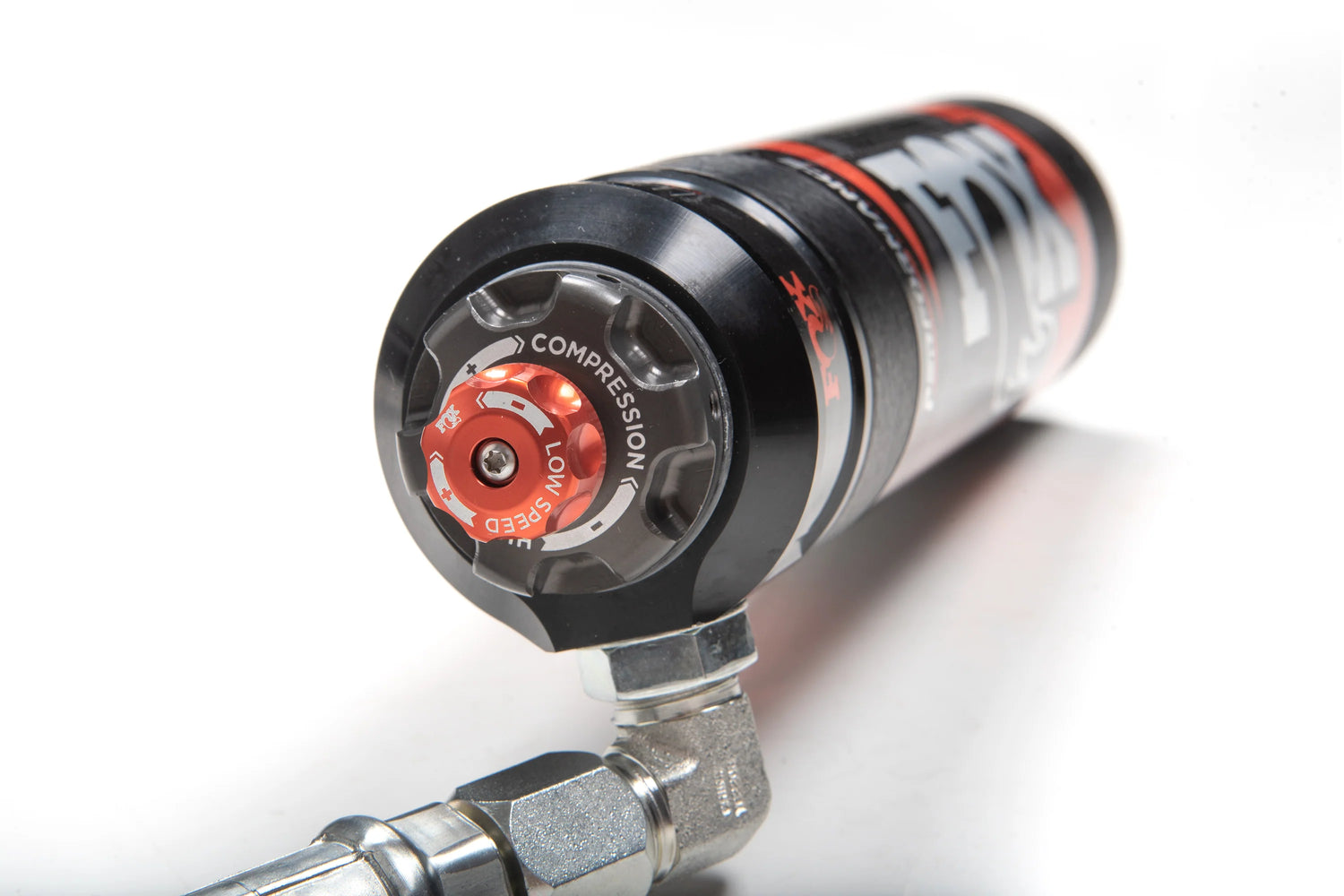

• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Notes

• RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 6
• Rear Lift Method : Coil Spring
• Rear Lift Height : 5"
• Shocks Included : Yes
• Lift Height : 6-7.5"

Compatibility Notes

• Fits 4WD models only.
• Fits models with 3.0L Hurricane I6 engines and models with 3.6L V6 engines.
• Will NOT fit adjustable "air ride" suspension equipped models.
• Will NOT work on diesel models
• Will NOT fit models equipped with the Thermal Axle option.

Tire Fitment

• 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace
