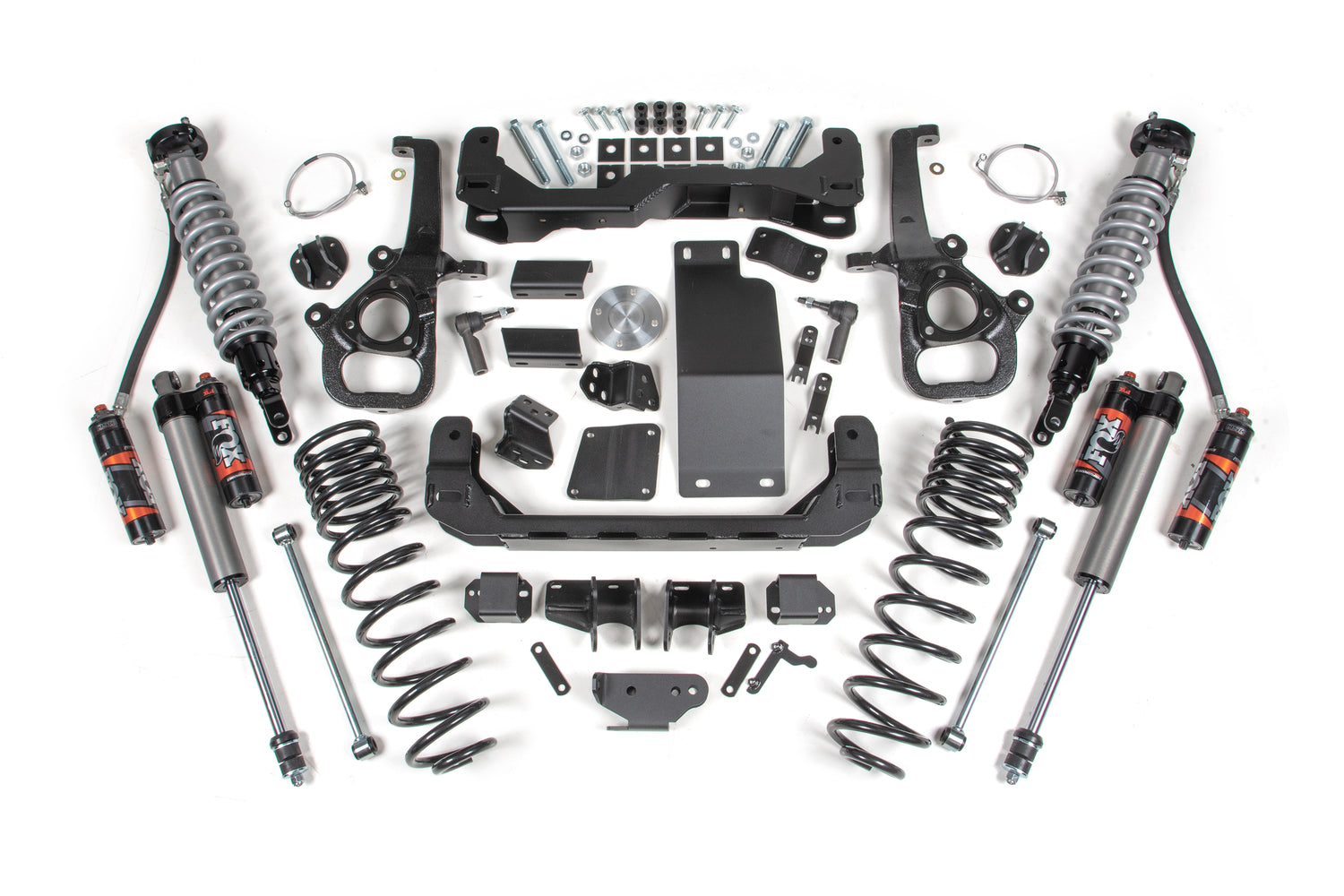

2025-2026 Ram 1500 4WD 6" Lift FOX 2.5 PE Coilovers (BDS2114FPE)

BDS Suspension's 6" lift system for the Ram 1500 4WD combines aggressive ground clearance with refined ride dynamics through integrated FOX 2.5 Performance Elite coil-over technology. This purpose-built kit maximizes suspension articulation for demanding terrain while preserving highway composure, enabling fitment of oversized rubber and optimizing suspension geometry for enhanced stability. Complete with all necessary components, it transforms your truck's capability without compromising daily drivability.

Features

• The DSC (dual speed compression) adjuster adds remarkable versatility and precise tuning with a simple twist of one or both knobs.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance.
• HD skid plate system improved offroad protection Multipoint differential relocation brackets to secure the front axle and improve CV angles.
• Standard Knuckle Type


Shock Features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Notes

• Disconnect BOTH batteries (if equipped), Main and Auxilary before performing install
• Included Replacement front brake lines (22545) do not work on 2025 model year trucks
• RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly

Compatibility Notes

• Fits 4WD models only.
• Fits models with 3.0L Hurricane I6 engines and models with 3.6L V6 engines.
• Will NOT fit adjustable "air ride" suspension equipped models.
• Will NOT work on diesel models.

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 6
• Rear Lift Method : Coil Spring
• Rear Lift Height : 5"
• Shocks Included : Yes
• Lift Height : 6-7.5"

Tire Fitment

• 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace
