2022-2026 Tundra 3" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS838FPE)

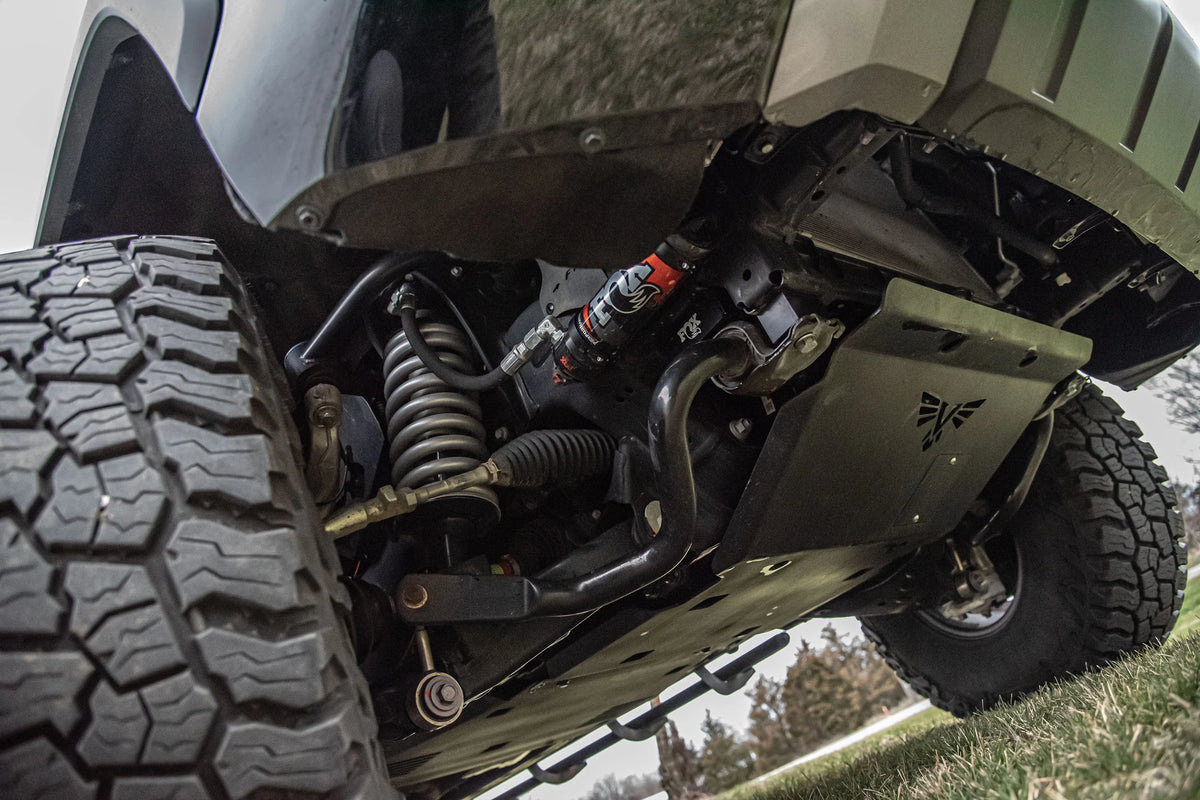

BDS 0-3" lift for the 2022-2026 Toyota Tundra with clearance for up to 35" tires. Up front it includes FOX 2.5 Performance Elite coilovers with Dual Speed Compression Adjust remote reservoirs, heavy duty tubular upper control arms, BDS diff drop brackets, and solid aluminum sway bar drop blocks. The rear uses 1-3/4" BDS heavy duty coil springs and FOX 2.5 Performance Elite reservoir shocks for adjustability. The tubular UCAs use 1.5" OD x .120-wall construction with an indexed ball joint cup to correct ball joint positioning, adding down travel and camber adjustment, with greaseable ball joints and a black powder coat finish.

Features

• FOX 2.5 Performance Elite series Dual Speed Compression Adjust coil-overs offer improved damper performance over stock
• BDS performance UCAs increase strength and allow for more suspension travel
• FOX 2.5 Performance Elite series Dual Speed Compression Adjust rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent bolt-on installation

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 1 inch

Recommended Tire & Wheel Fitment

• Tire Size: 285/65, 35x12.5
• Wheel Diameter: 20x9, 18x9
• Back Spacing: 6.18/5.54

Notes

• TRD Sport models will achieve the same amount of lift but will have a lower front stance than other models.
• Will not work with Adaptive Variable Suspension (AVS) System equipped vehicles.
• Will not work with Air Ride models.
• Will not work with TRD Pro models.
• For regular off-road use, it is recommended to upgrade Non TRD Off-Road trucks' half axles (CVs) to Toyota TRD's (Driver Toyota Part# 434100C020, Passenger Toyota Part 434100C020). Not including TRD Pro models.
• Ball joint cap must be removed for maintenance of ball joint. Remove cap to access grease zerk. Grease at regular maintenance intervals.
• For replacement ball joints, order BDS088200. Ball joints are not directional.
• The ADAS system in some vehicles needs to be recalibrated by a certified shop. Most windshield repair shops (Safelite) and dealers are capable of doing this.
• UCAs are designed to work with Fox Coilovers requiring upper control arms and may not work with all aftermarket spacer lifts / lift kits (will work with BDS 3 inch lift). Ball joint re-indexed for max range of motion with 2-3 inch lifts.
• Tire/wheel fitment: 295/65 R20 w/ 6-7/8 BS (OE TRD wheel); 285/65 R20 or 285/75 R18 w/ 9" wide 6-1/8" BS; 295/60 R20 or 295/70 R18 w/ 9" wide 5-1/2" BS; 305/55 R20 or 305/65 R18 w/ 9" wide 5" BS; 325/60 R20 w/ 9" wide 6-1/8" BS; 35/12.50 R20 or 35/12.50 R18 w/ 9" wide 5-1/2" BS; 295/65 R20 or 305/70 R18 or 285/75 R18 w/ 9" wide 5" BS.

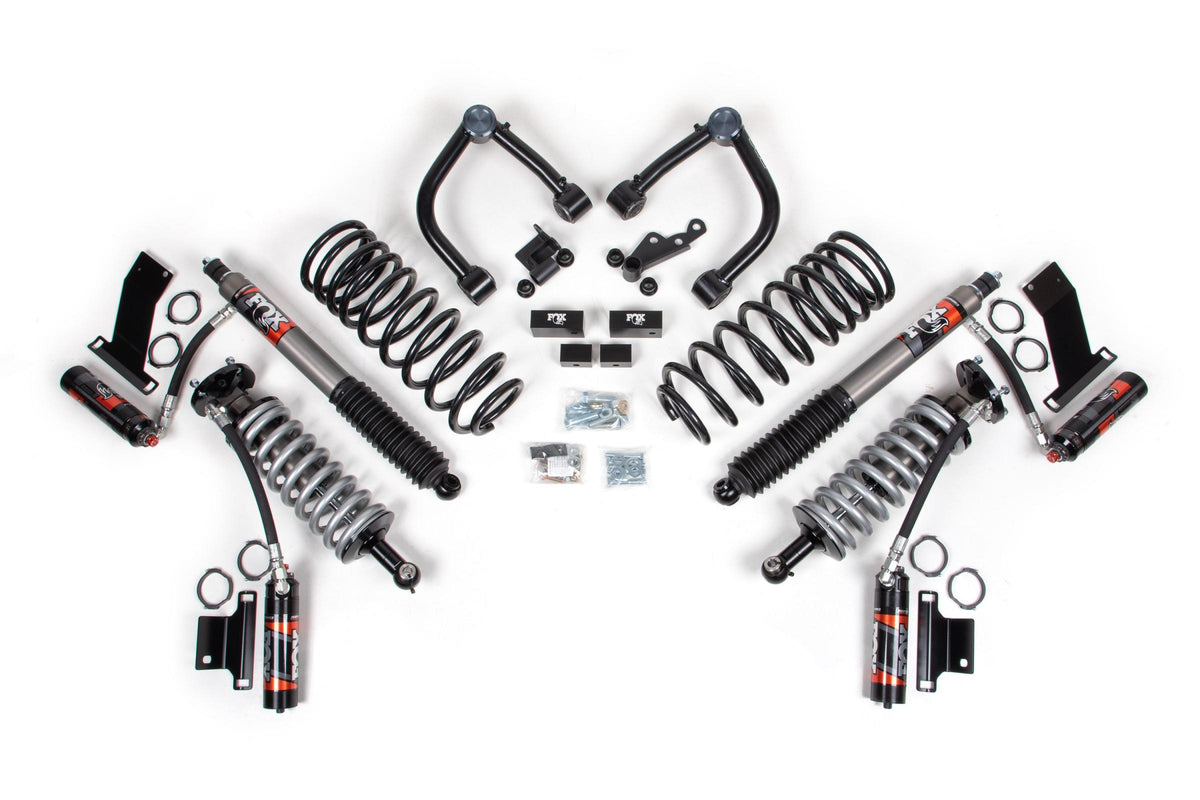

Includes

• BDS028311, 2022 Toyota Tundra 3 inch Front Box Kit (UPC 711745612778)
• BDS038156, 2022 Toyota Tundra, 1-3/4 inch Rear Coil Spring (UPC 711745612785)
• BDS128254, 2022 Toyota Tundra UCA Box Kit (UPC 711745612761)
• FOX88326139, Kit: 22-ON Toyota Tundra, Rear, 2.5 Truck Fox Performance Elite Series, R/R, Dual Speed Compression Adjust, 0-1.5 inch Lift
• FOX88406318, Kit: 22-ON Toyota Tundra, w/UCA, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, Dual Speed Compression Adjust, 3 inch Lift (UPC 711745613829)
