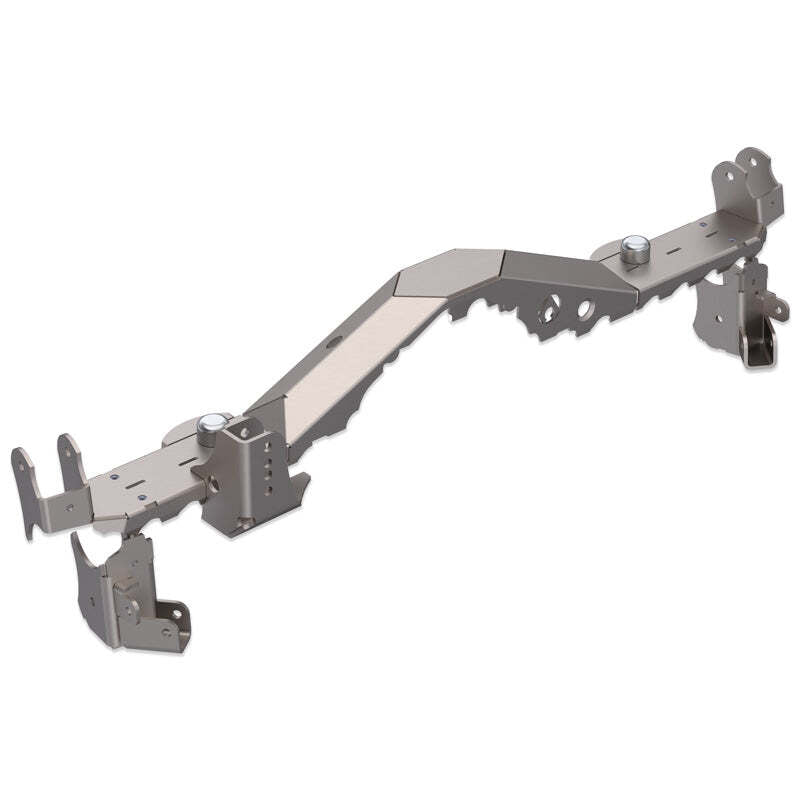

2007-2018 Wrangler JK 1 Ton Apex Rear 14 Bolt Truss Swap Kit (ARTJK1415)

The patented APEX truss system from Artec Industries pushes axle protection and install efficiency to the next level, delivering exceptional strength with reduced weight and simplified fabrication. Designed for demanding JK axle swaps, this truss and bracket system streamlines suspension placement, minimizes welding time, and provides the durability needed to handle extreme off-road abuse.

Features

• Patented peaked top truss design increases rigidity while reducing overall weight
• Requires significantly less welding than traditional truss designs to reduce distortion and install time
• Contours tightly to the differential for improved clearance and strength
• Provides complete end-to-end axle rigidity
• Main truss includes fixture points for accurate suspension bracket alignment
• Integrated coil bracket and bump stop pads extend directly from the axle truss
• Dimpled holes add strength while reducing weight
• Optimized shock bracket and control arm mount locations
• Designed to retain factory link, spring, sway bar, and shock locations
• CNC laser cut in-house for precision and consistency

Specifications

• Material: Mild steel
• Truss thickness: 3/16"
• Bracket thickness: 1/4"

Notes

• For 14 bolt axles, correct axle width is required when using factory upper control arm brackets
• When using a 3-link style system mounted on the truss, axle width should closely match the front axle
• Older 14 bolt axles are not compatible with available ABS brackets
• ABS sensor components are not included and must be configured by the end user
• Welding required for installation
