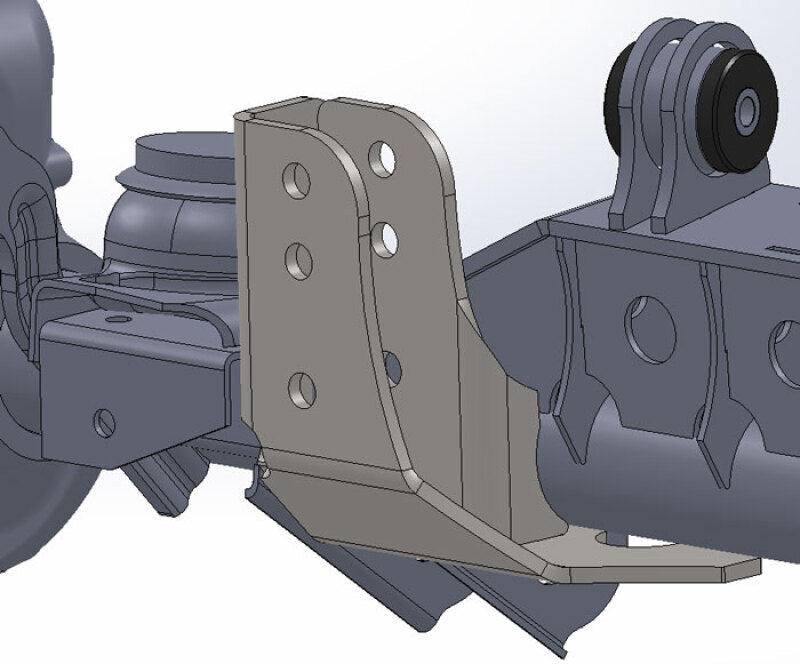

1993-2006 Wrangler TJ Raised Tracbar Bracket Front Axle (ARTTJ3013)

This heavy duty front track bar bracket is designed to replace the factory axle-side bracket to correct link geometry when running crossover steering, allowing the track bar to be set parallel to the drag link for improved handling and stability. Built for solid axle Jeep platforms, the bracket mounts near the factory coil perch and provides multiple raised mounting positions to fine tune roll center and steering geometry on lifted suspensions.

Features

• Constructed from 1/4" thick steel
• CNC laser cut and CNC bent for precise fit
• Engineered using 3D scan data
• Replaces the factory axle-side track bar bracket
• Designed for front Dana 30 and Rubicon 44 axles
• Compatible with crossover steering setups
• Multiple raised track bar mounting holes for geometry tuning
• Engineered for suspension lifts of 3" or greater
• Raises roll center to improve stability
• Improves ground clearance
• Joint mounting width of 1.65"
• Manufactured in the USA

Notes

• Not a bolt-on component and requires welding
• General welding and fabrication skills are required
• Some trial and error may be required to select the ideal mounting hole depending on lift height
• Track bar length will need to be modified or a new track bar fabricated due to the raised mounting position
