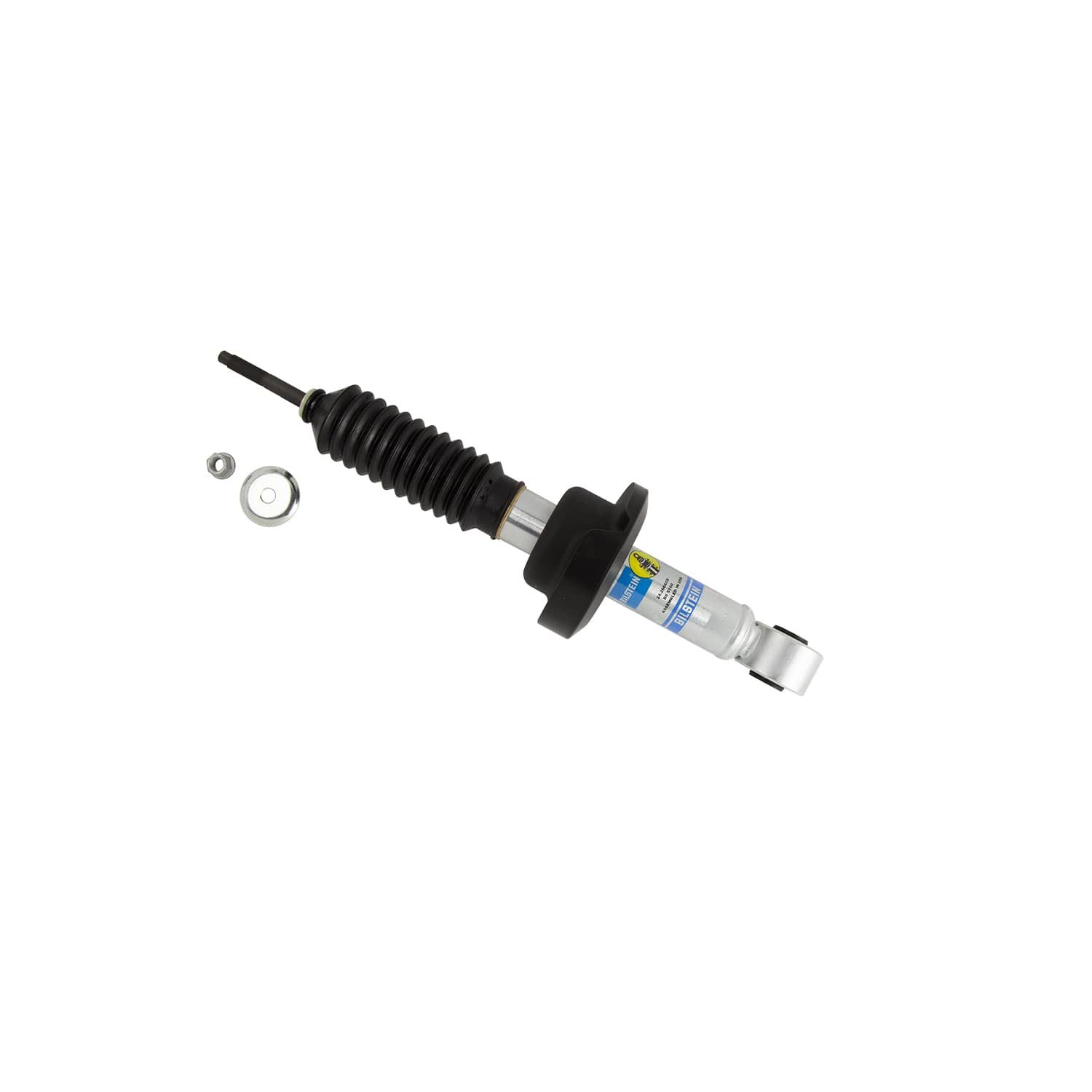

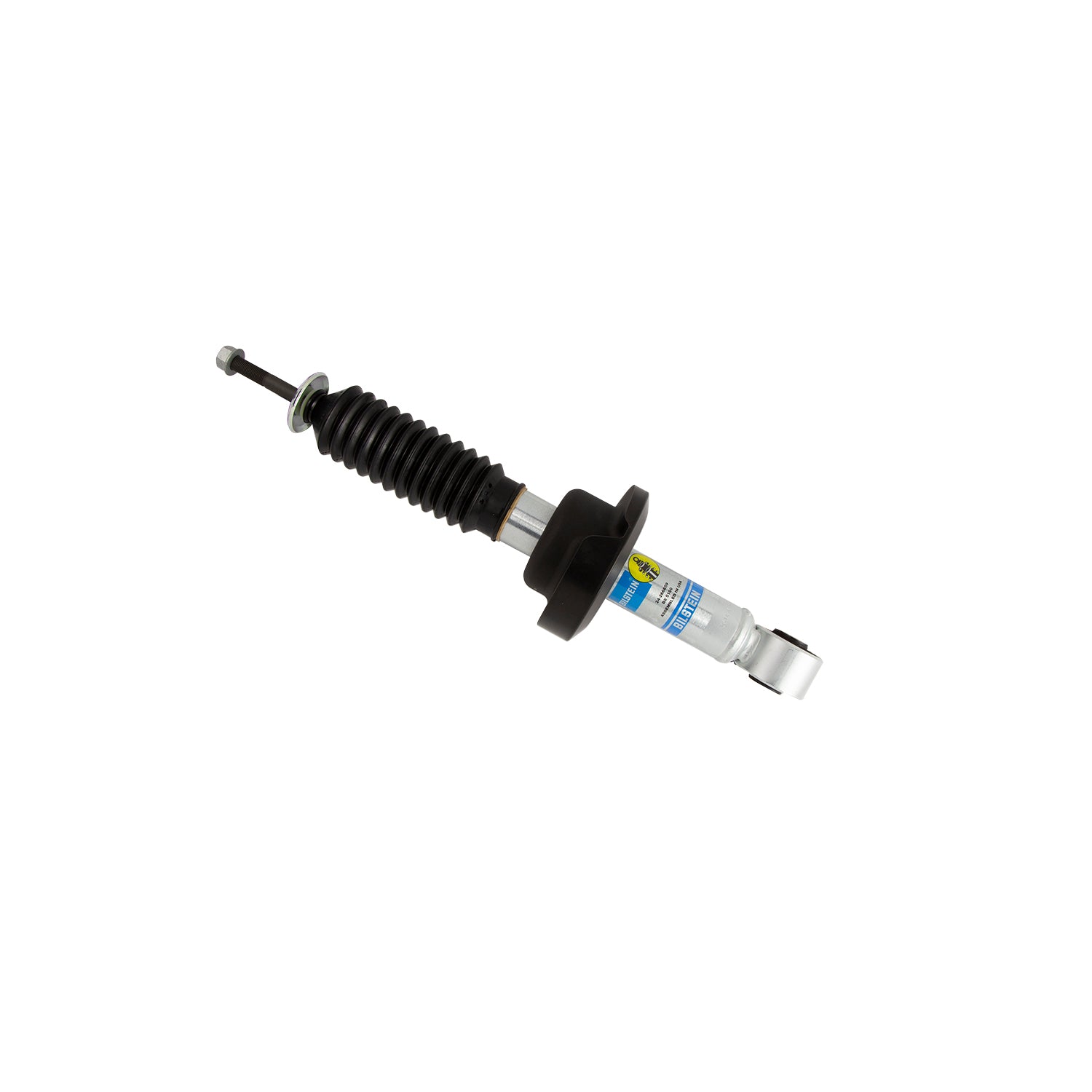

2016-2024 Titan XD 4WD 0-2" Lift 5100 Front Shock (24-266659)

Description

Running a front OE coilover setup? This is the cleanest way to level your truck. Multiple snap-ring grooves let you set the spring seat where you want it, giving up to 3" of front lift on your factory springs — no spacers, nothing stacked. The 46mm digressive piston keeps the ride composed and adds wheel travel while it's at it.

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2" of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-2" of lift, depending on the application

Specs

• Collapsed Length (in): 14.61
• Extended Length (in): 18.62
• Stroke/travel Length (in): 5.15
• Lower Mount Type: Eye 16mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Reservoir: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Boot Included: Black Bellows
• Spring Seat Included: Yes
• Shaft Diameter: 14mm
• Adjustable Damping: Non-Adjustable
