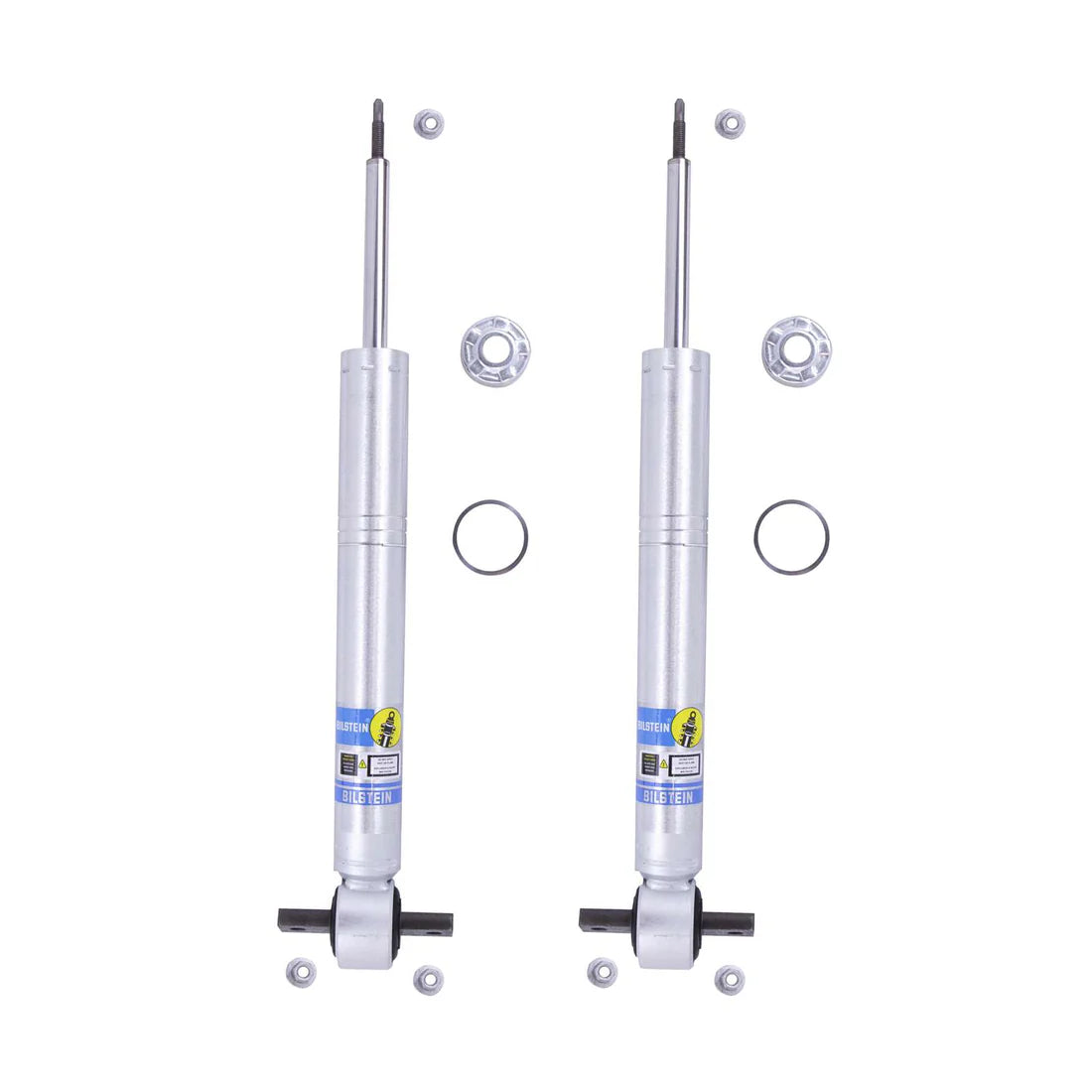

2019-2025 GM 1500 0-1.1" Adj Front Shock (24-337069)

Description

Running a front OE coilover setup? This is the cleanest way to level your truck. Multiple snap-ring grooves let you set the spring seat where you want it, giving up to 3" of front lift on your factory springs — no spacers, nothing stacked. The 46mm digressive piston keeps the ride composed and adds wheel travel while it's at it.

Purpose-built for 2019-2025 Silverado/Sierra 1500 models, these Bilstein B8 5100 monotube shocks offer 0-1.1" of adjustable front ride height using factory springs. The 46mm digressive piston paired with an intelligent self-adjusting valve ensures superior handling dynamics. Strategically positioned snap-ring grooves enable fine-tuned spring seat placement, while the design maximizes suspension articulation and delivers seamless vehicle leveling without requiring additional upgrades.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-3" of lift, depending on the application

Features

• Improves ride control and handling
• Designed for application-specific fitment
• Series: B8 5100 (Ride Height Adjustable)
• Part Type: Height Adjustable Strut
• Position: Front

Specs

• Collapsed Length (in): 17.58
• Extended Length (in): 21.97
• Stroke/travel Length (in): 4.39
• Lower Mount Type: Bar Pin
• Upper Mount Type: Stem
• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Shaft Diameter: 18mm
