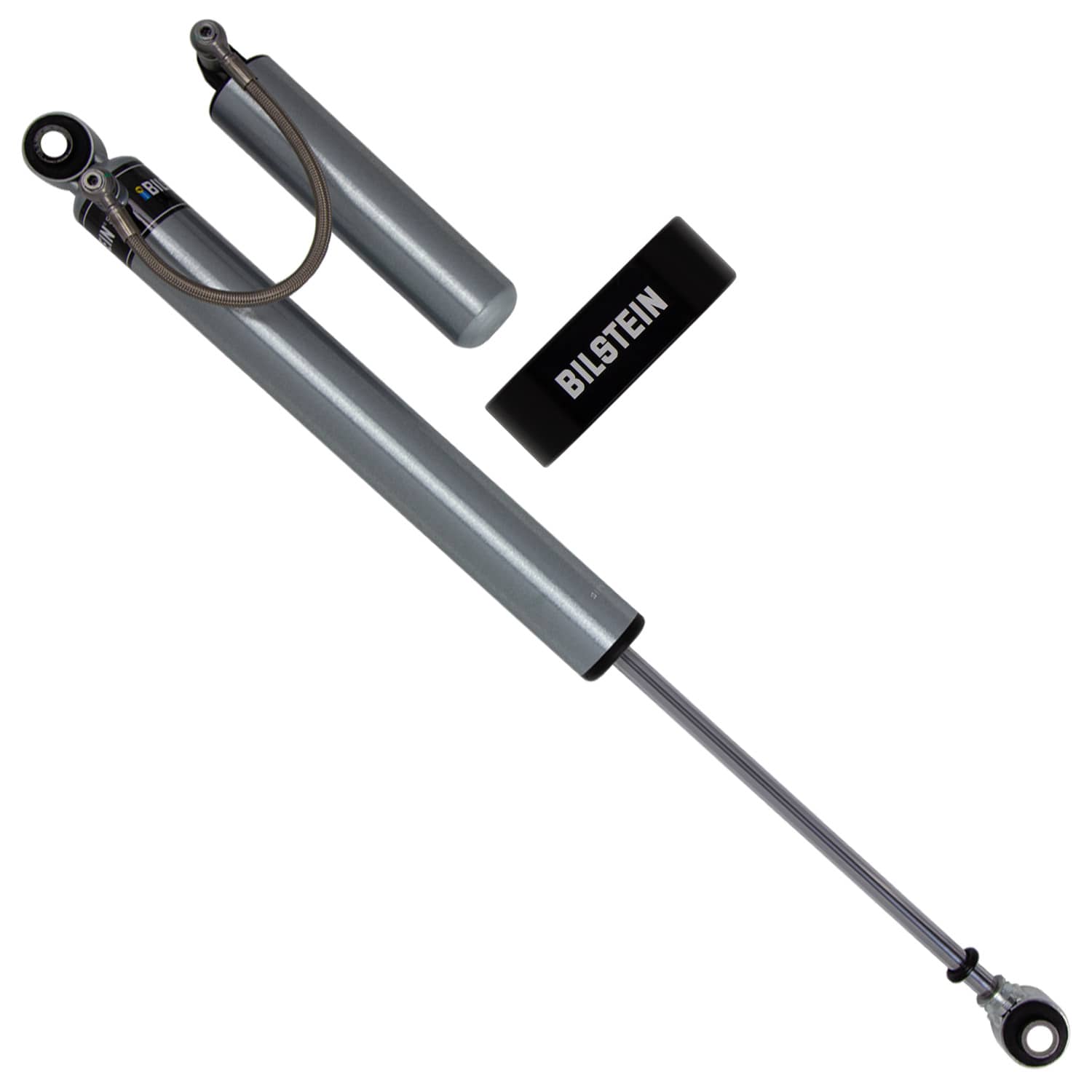

2013-2025 Ram HD 0-3" Rear 5160 Series Remote Reservoir Shock (25-302349)

Purpose-built for lifted Ram HD applications, the Bilstein B8 5160 remote reservoir shock combines monotube construction with intelligent velocity-sensitive damping to maintain consistent performance across variable terrain. The remote reservoir expands cooling capacity and suspension articulation beyond conventional designs, while precision-engineered swivel fittings and billet mounting hardware facilitate a streamlined installation. Engineered for uncompromising durability in extreme off-road environments.

Features

• Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs.
• The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber.
• These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application.
• Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation.
• B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Specs

• Collapsed Length (in): 18.30
• Extended Length (in): 29.90
• Stroke/travel Length (in): 11.60
• Lower Mount Type: Eye 14.1mm
• Upper Mount Type: Eye 14.1mm
• Internal Design: Monotube
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
