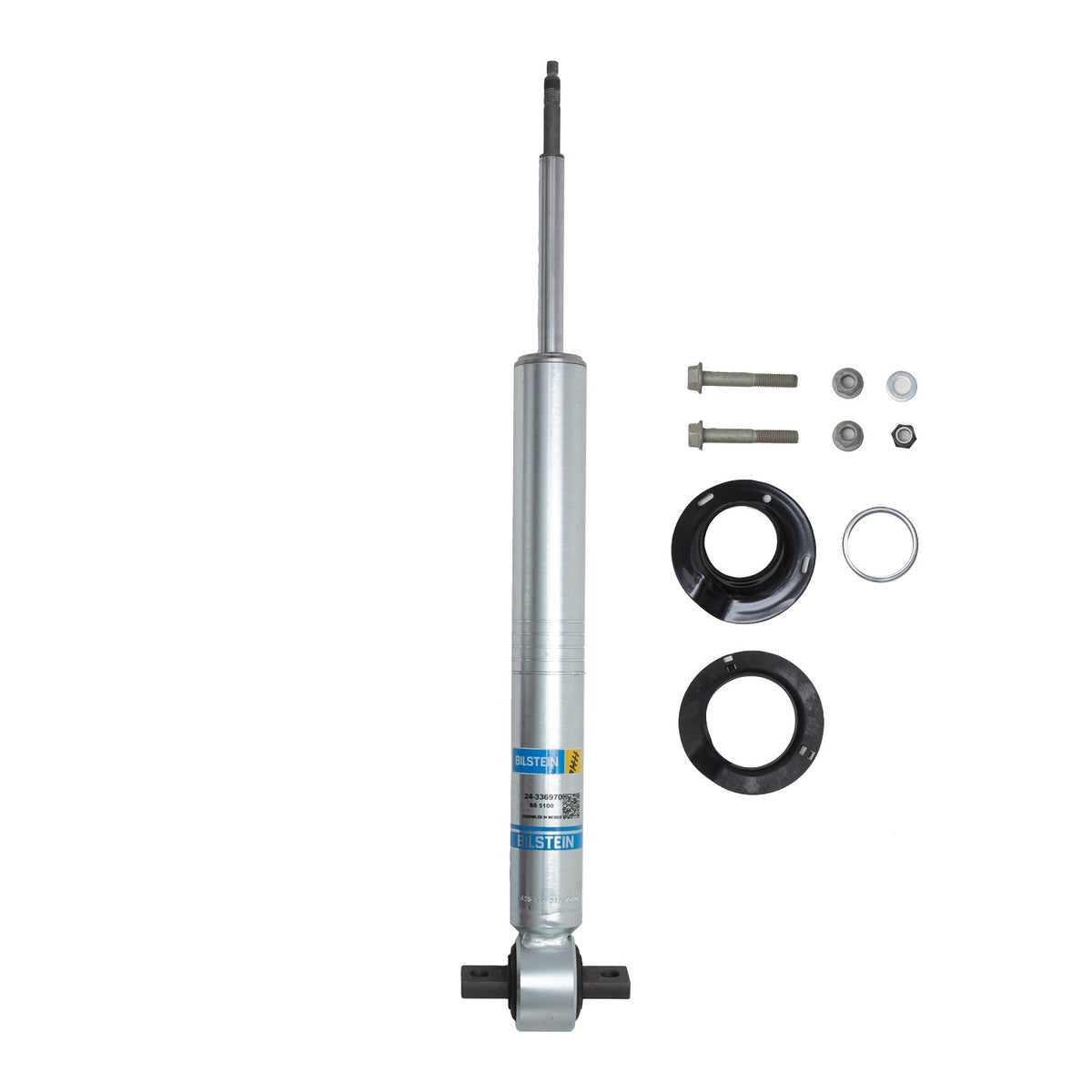

2015-2020 F150 4WD 0-2" Front 5100 Series Ride Height Adj Shock (24-336970)

Description

Running a front OE coilover setup? This is the cleanest way to level your truck. Multiple snap-ring grooves let you set the spring seat where you want it, giving up to 3" of front lift on your factory springs — no spacers, nothing stacked. The 46mm digressive piston keeps the ride composed and adds wheel travel while it's at it.

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for 2015-2020 Ford F-150 trucks with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75" of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston with a self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling, offering the easiest way to level out your vehicle.

• Monotube design ensures consistent, fade-free performance in all conditions
• Multiple snap-ring grooves provide adjustable lift heights
• 46mm digressive piston with self-adjusting deflective disc valving

Features

• Improves ride control and handling
• Designed for application-specific fitment
• Series: B8 5100 (Ride Height Adjustable)
• Part Type: Height Adjustable Strut
• Position: Front

Specs

• Collapsed Length (in): 16.91
• Extended Length (in): 22.41
• Stroke/travel Length (in): 5.50
• Body Diameter (od): 2.0 in.

Notes

Excludes Raptor Models

This shock fits 4WD models only. If your vehicle is 2WD, use this one instead.
