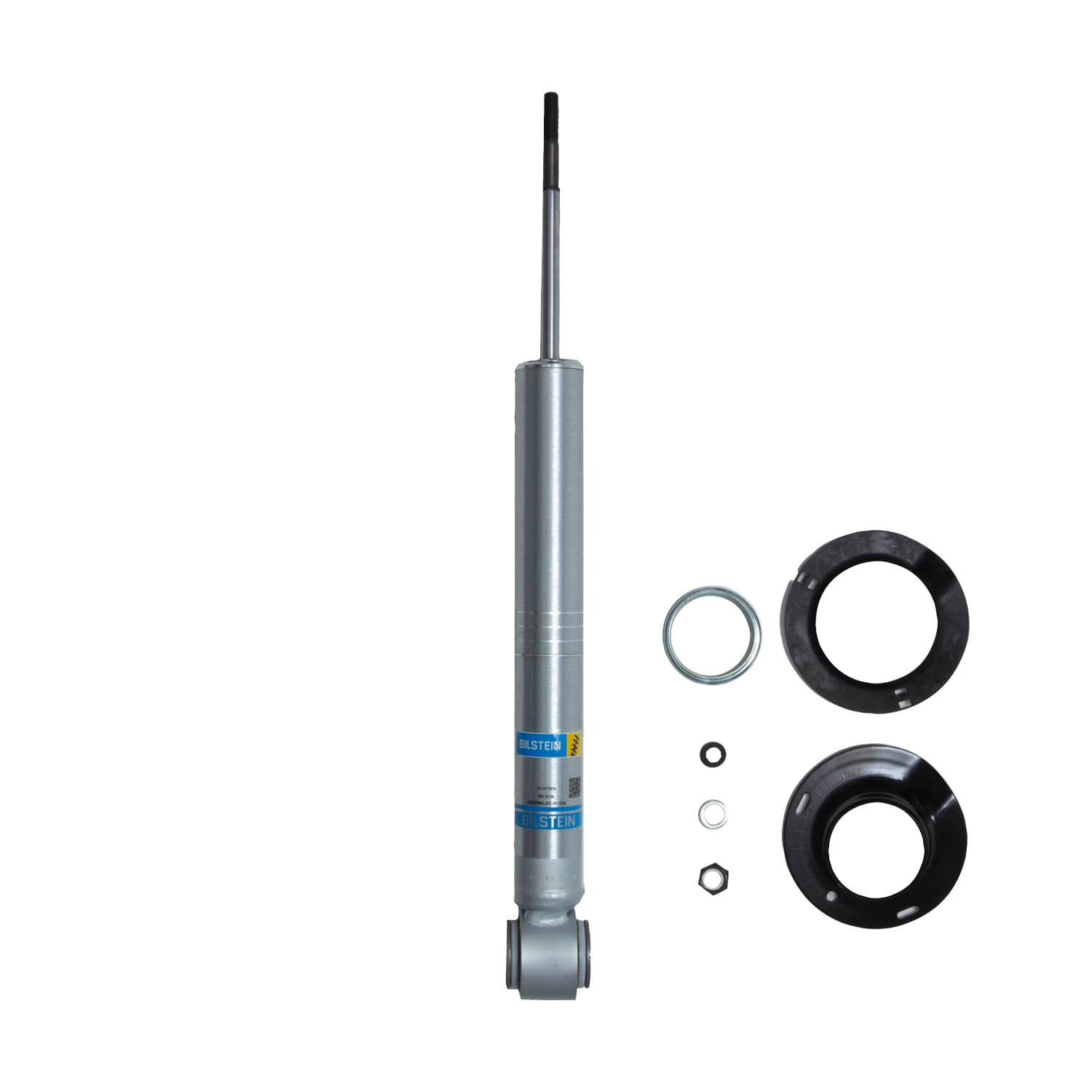

2009-2013 F-150 4WD 0-2.25" Lift B8 5100 Front Adj Shock (24-317856)

Description

Running a front OE coilover setup? This is the cleanest way to level your truck. Multiple snap-ring grooves let you set the spring seat where you want it, giving up to 3" of front lift on your factory springs — no spacers, nothing stacked. The 46mm digressive piston keeps the ride composed and adds wheel travel while it's at it.

Engineered specifically for 2009-2013 F-150 trucks, these Bilstein B8 5100 adjustable shocks deliver 0-2.25" of front lift while maintaining OE spring compatibility. The monotube design incorporates a 46mm digressive piston with self-adjusting deflective disc valve technology for responsive damping control. Multiple snap-ring grooves enable precise ride height customization to match your setup. Enhanced wheel travel and superior handling characteristics make leveling your truck straightforward without requiring additional suspension modifications. An ideal solution for trucks seeking improved geometry and performance.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-2.25" of lift, depending on the application

Specs

• Collapsed Length (in): 16.93
• Extended Length (in): 21.86
• Stroke/travel Length (in): 4.93
• Lower Mount Type: Eye 20.3mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
