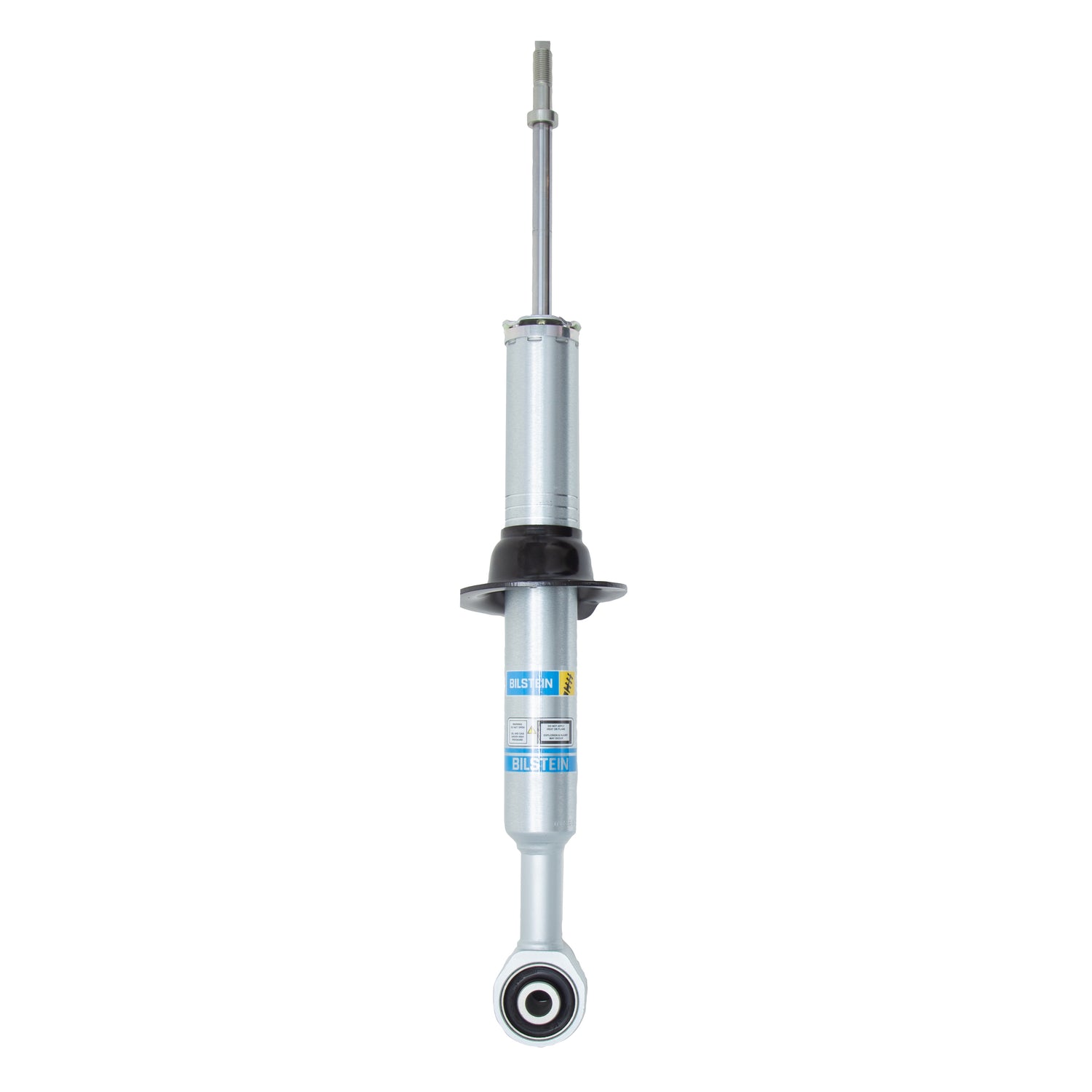

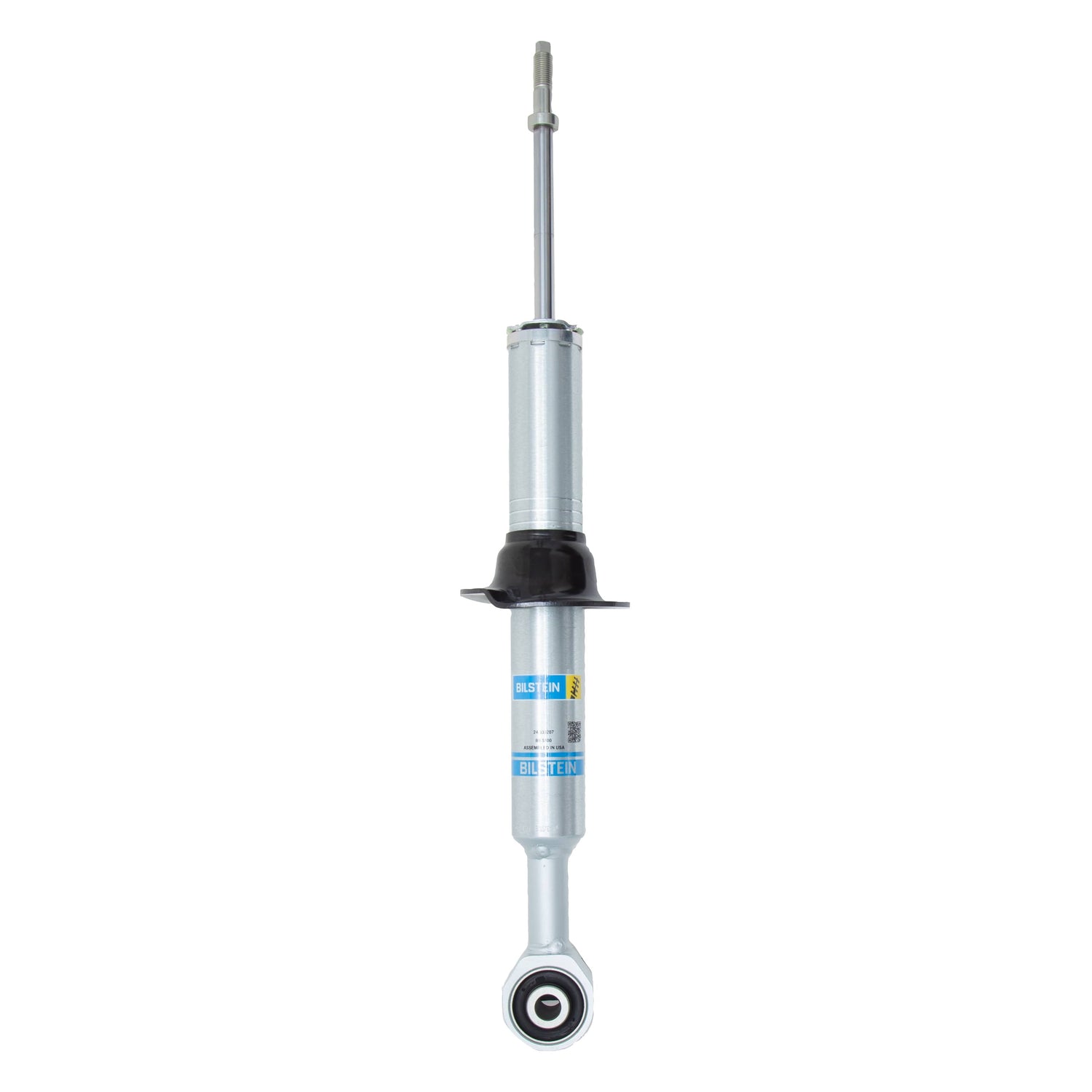

2024-2025 Tacoma 1-2.5" Lift Front Adj 5100 Series Shock (24-333207)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for 2024-2025 Toyota Tacoma trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3" of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston with a self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling, offering the easiest way to level out your vehicle.

Features

• Monotube design ensures consistent, fade-free performance in all conditions
• Multiple snap-ring grooves provide adjustable lift heights
• 46mm digressive piston with self-adjusting deflective disc valving

Specs

• Collapsed Length (in): 19.24
• Extended Length (in): 24.13
• Collapsed Length (mm): 488.8
• Extended Length (mm): 612.8
• Stroke/travel Length (in): 4.89
• Lower Mount Type: Eye 16.3mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Shaft Diameter: 14mm

Notes

• Non Hybrid only
