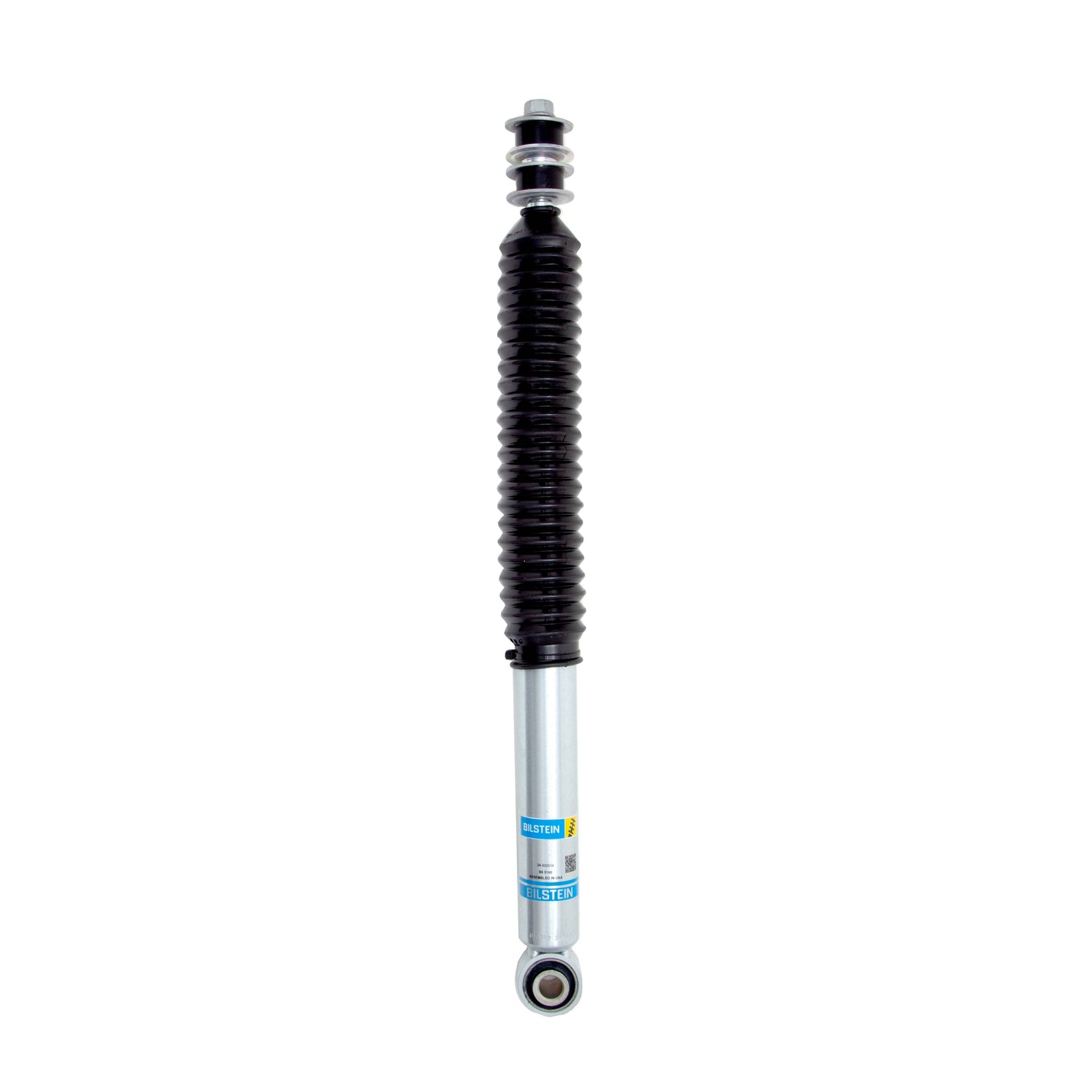

2024-2025 Tacoma 0-1.5" Rear Lift B8 5100 Series Shock (24-333214)

Bilstein B8 5100 shock absorbers are designed as a direct-fit solution for lifted 2024-2025 Toyota Tacoma trucks and SUVs. These shock absorbers feature a monotube design which provides consistent, fade-free performance. B8 5100 shock absorbers utilize a unique, velocity-sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved, offering a significant improvement in ride quality, handling, and comfort.

• Monotube design provides consistent, fade-free performance
• Velocity-sensitive, digressive piston reacts to changing road conditions
• Direct-fit solution for lifted trucks and SUVs

Specs

• Collapsed Length (in): 15.78
• Extended Length (in): 25.44
• Collapsed Length (mm): 400.8
• Extended Length (mm): 646.2
• Stroke/travel Length (in): 9.66
• Lower Mount Type: Eye 19.1mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Body Design: Smooth Body (Non-coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Shaft Diameter: 14mm

Notes

• non Hybrid only
