2021-2025 Bronco 0-2.75" B8 6112 Front Leveling Kit (47-325586)

Bilstein

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

Regular price $1,221.00 CAD
In stock - Ships right away

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

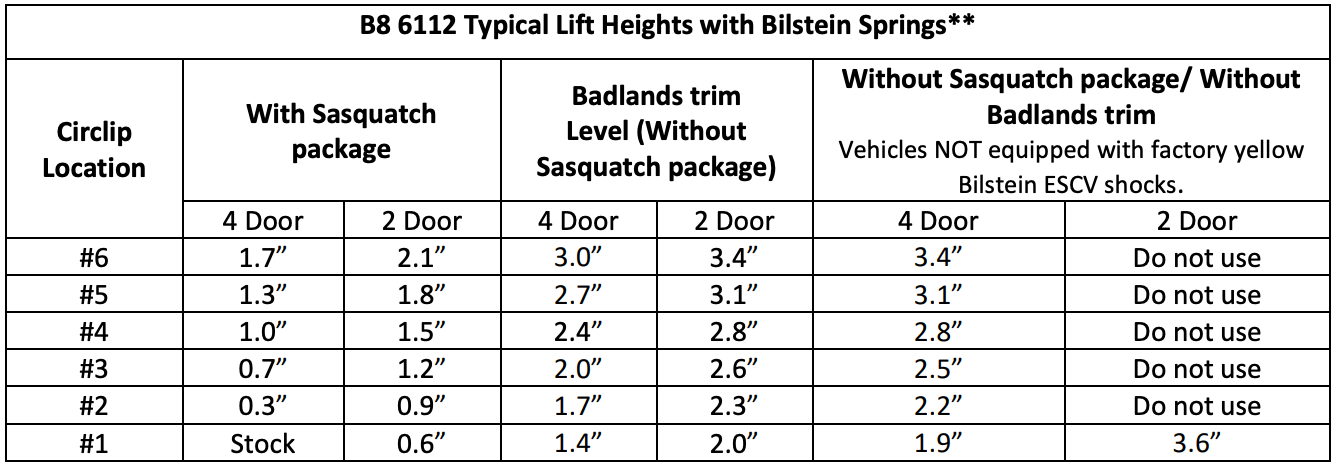

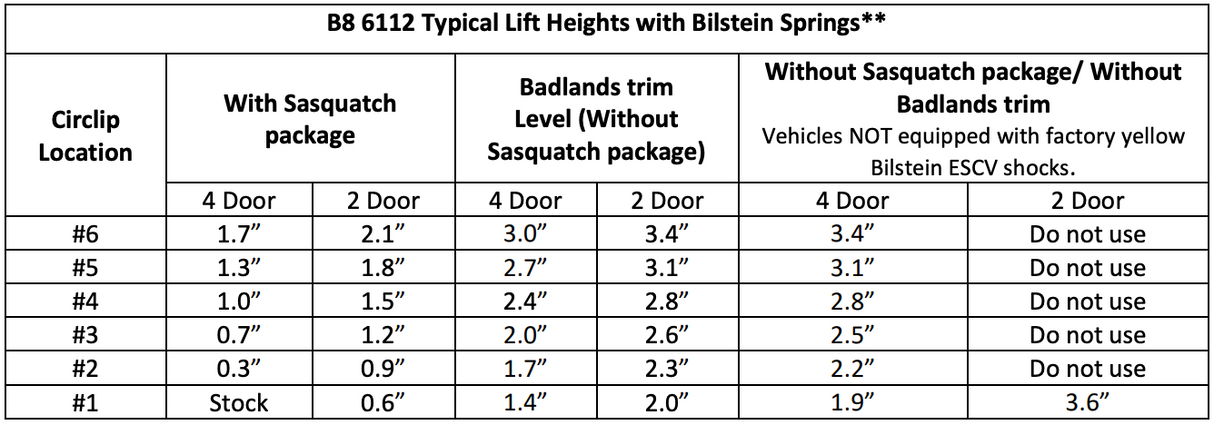

  • Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75" of front lift (depending on application)

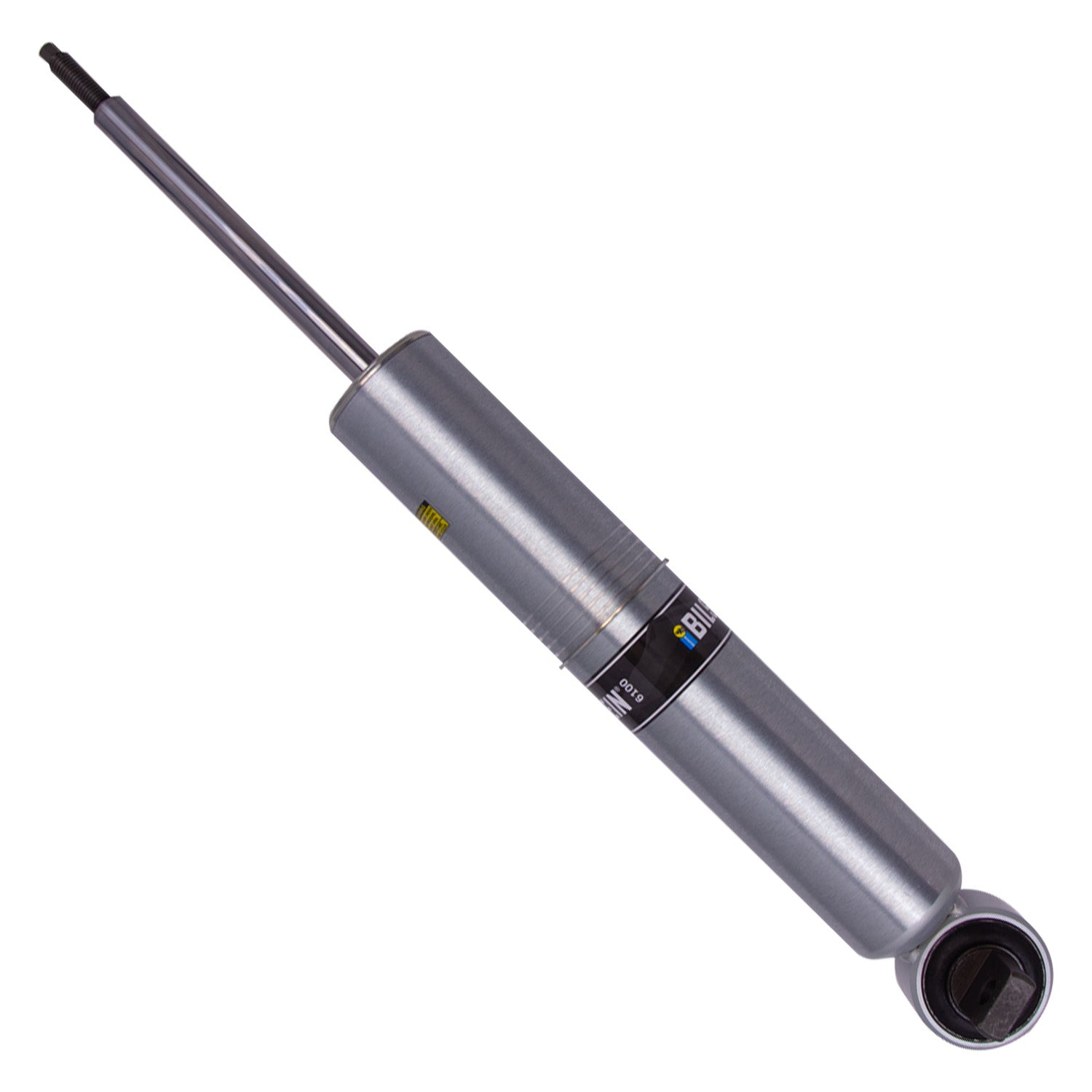

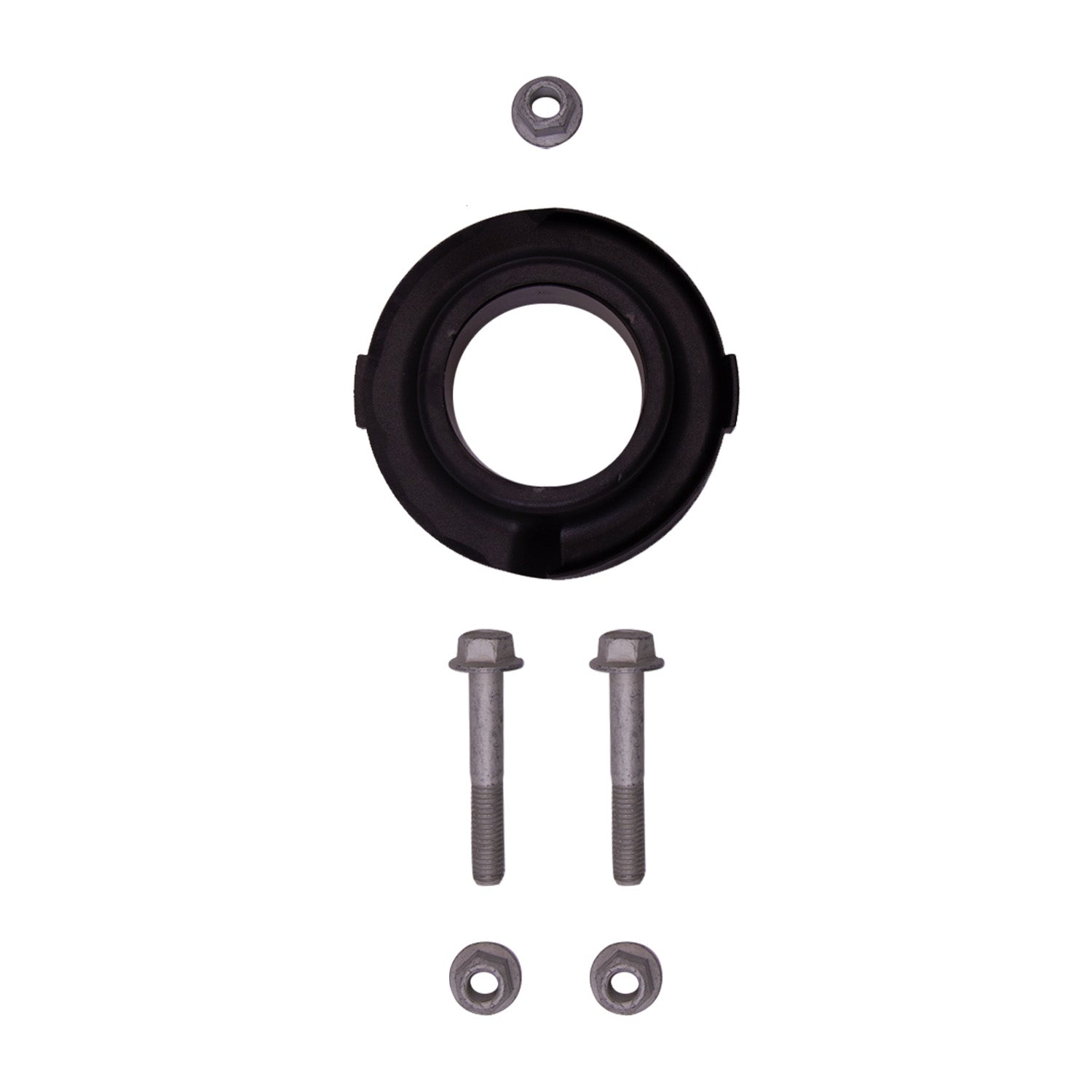

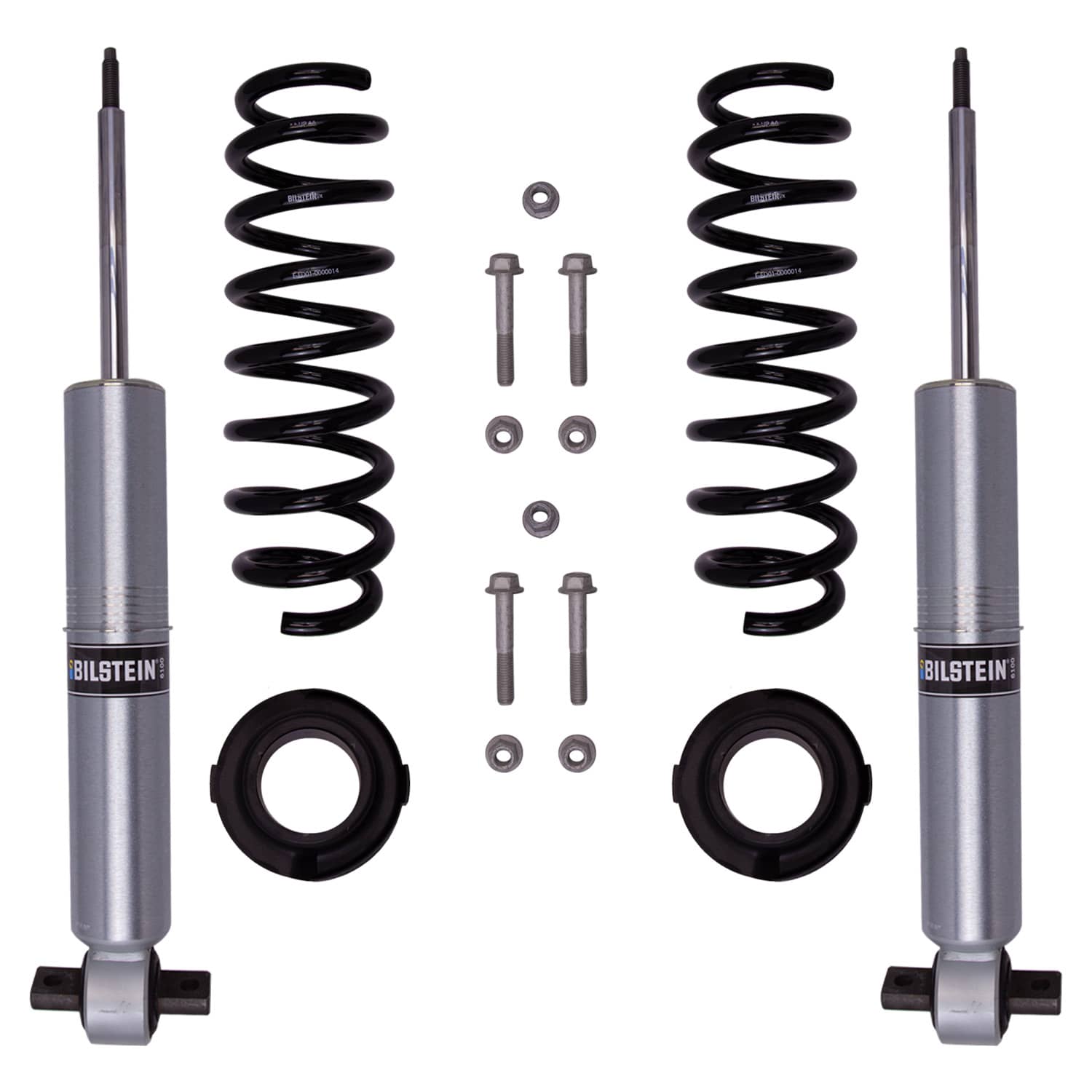

  • These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats
  • The large 2.65" OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities.
Specs
  • Internal Design: Monotube

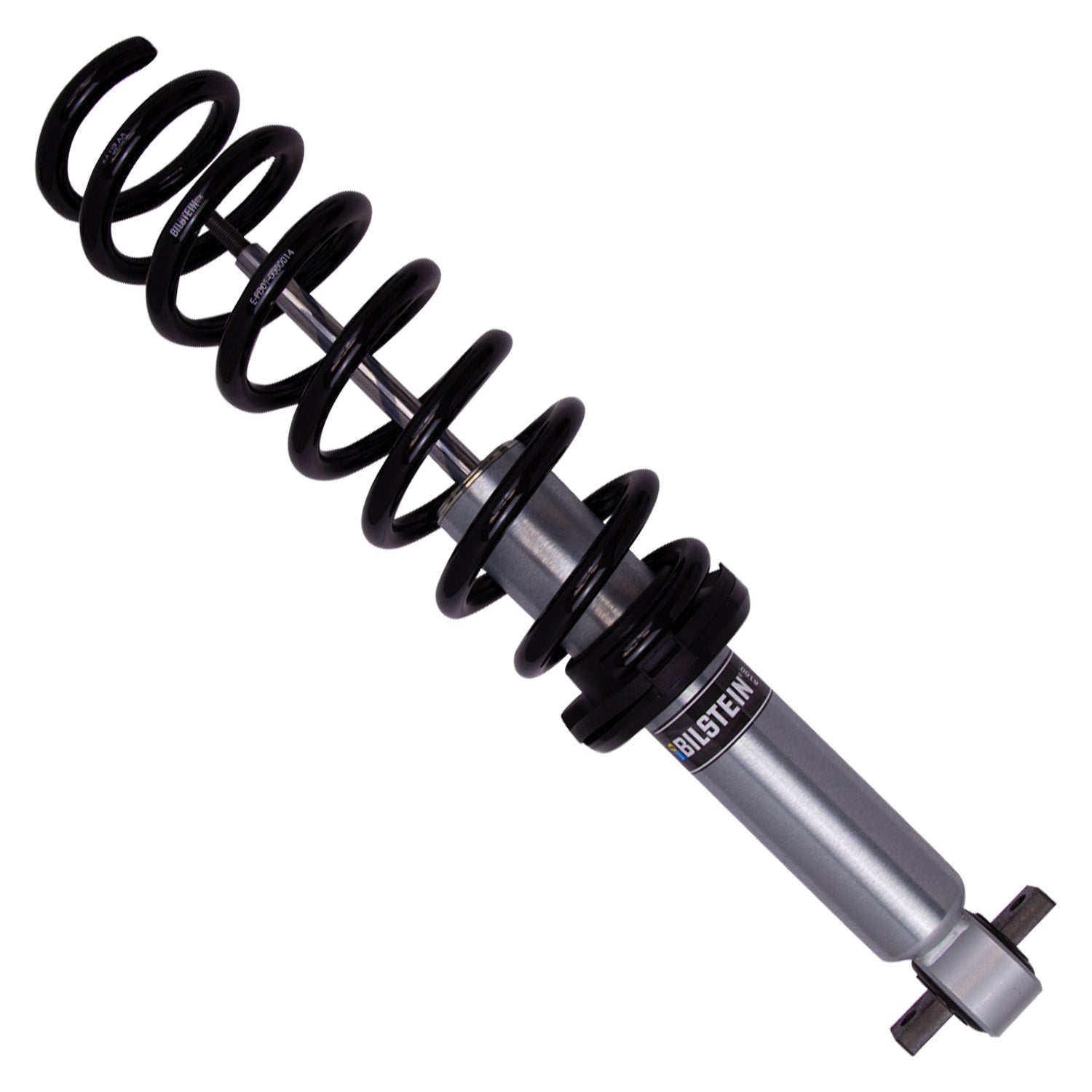

  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter (od): 2.65"
  • Piston Diameter: 60mm
  • Front Main Spring Rate (lbs/in): 374
  • Shaft Diameter: 18mm





Installation Instructions

Instructions Download

Warranty

Limited Lifetime Warranty

Vehicle Fitment

Part Specifications

  • Part No.
    47-325586
  • Cross Reference #
    651860898605
  • Vendor
    Bilstein
  • Shipping Weight
    50.9 lb
  • Length
    26.8 in
  • Width
    4.15 in
  • Height
    4.15 in
  • Placement
    • Front
  • Prop 65
    ⚠️ Warning: Cancer & Reproductive Harm
  • Compatibility Notes
    2 Door; Front Lift Height: 0.8-3.6"
