2021-2026 F-150 4WD Front 0-2.5 Lift Coilover Leveling Kit (47-323841)

Description

A complete front lift in one box — two 60mm shocks, two custom-matched coil springs, and billet spring seats. Set the snap-ring position for up to 2.75" of front lift, clear bigger tires, and gain real wheel travel. The 2.65" body and 60mm digressive piston control that extra travel on-road as well as off.

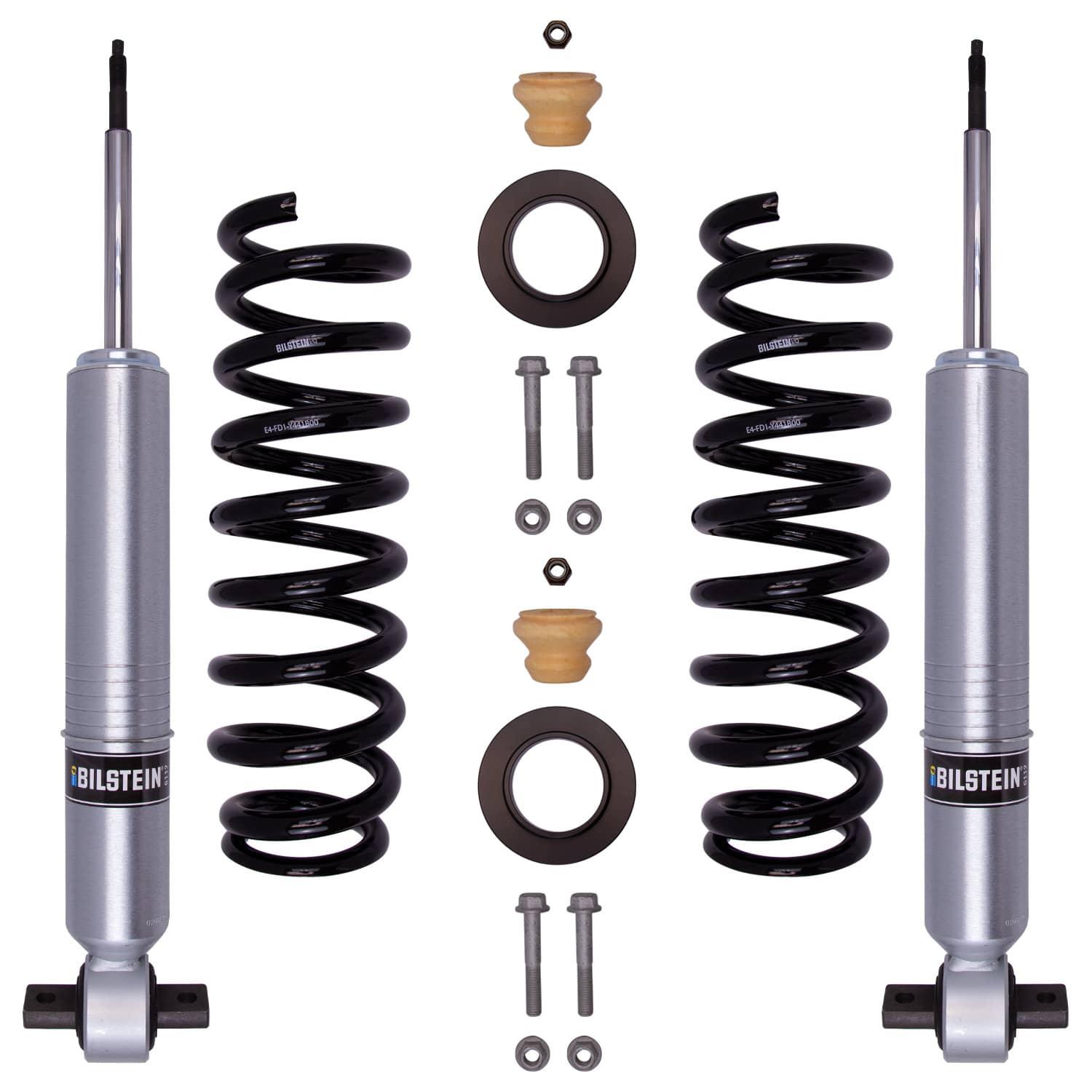

Bilstein B8 6112 leveling kits are designed to provide more ground clearance allow for larger tires and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75" of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

• Large 60mm body for increased oil capacity, cooling, and long-term durability
• 60mm digressive piston improves ride comfort and control over rough terrain
• Vehicle specific tuning
• Provides 0-2.5" Front Lift Without Continuously Controlled Damping EcoBoost Engine

Features

• Improves ride control and handling
• Designed for application-specific fitment
• Series: B8 6112
• Part Type: Suspension Kit
• Position: Front

Specs

• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.65"
• Piston Diameter: 60mm
• Front Main Spring Rate (lbs/in): 500
• Shaft Diameter: 18mm
