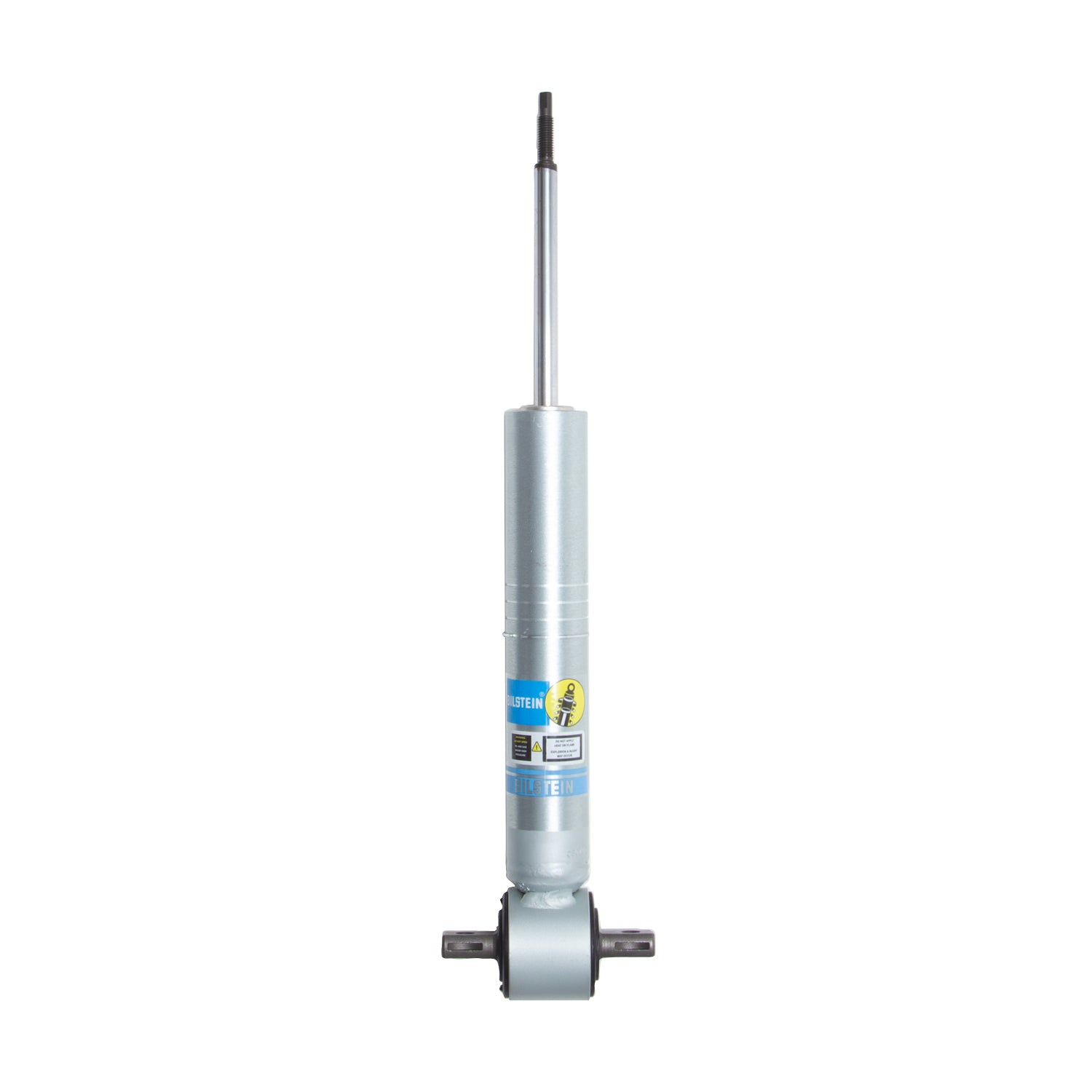

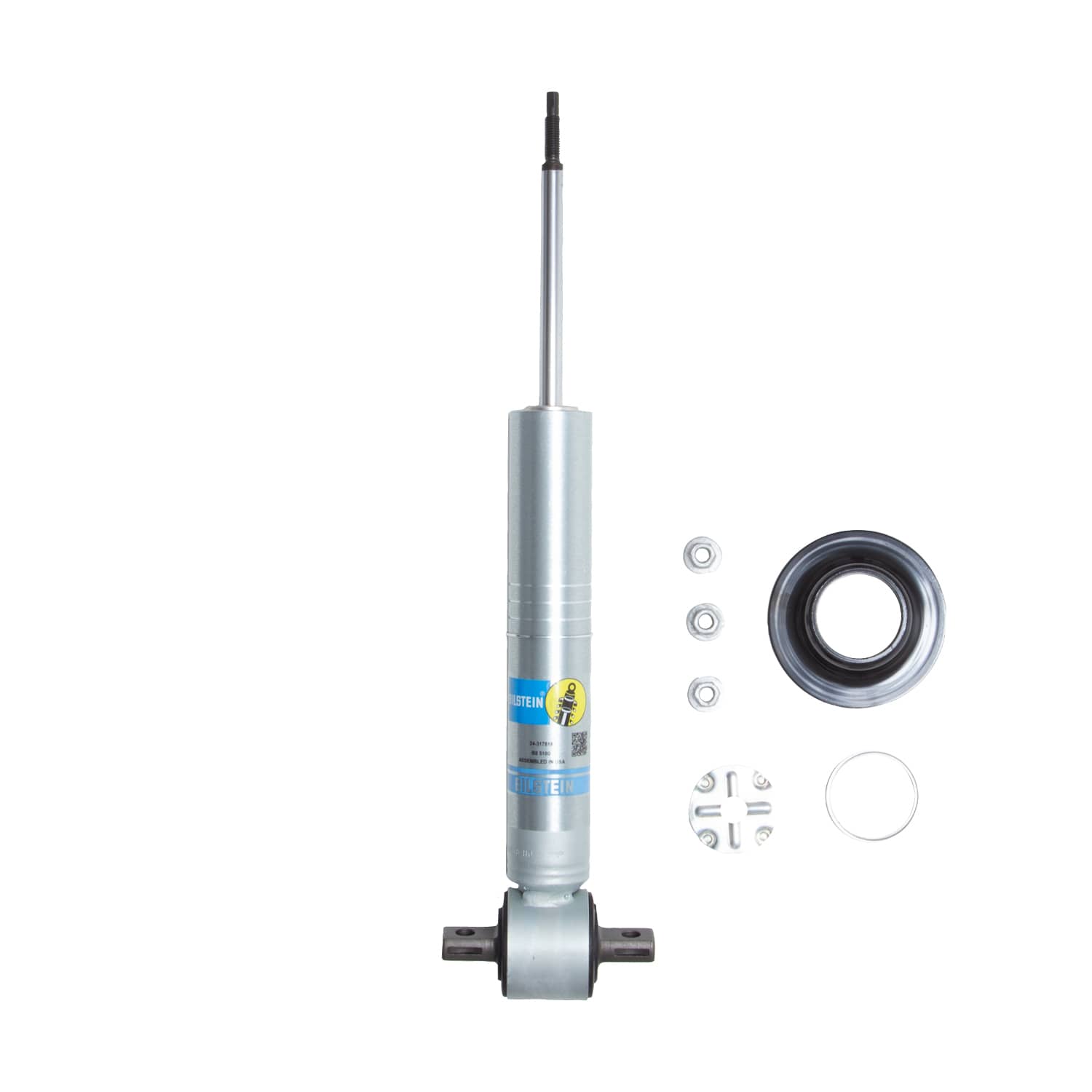

2007-2014 GM 1500 0-1.75" Lift B8 5100 Series Front Shock (24-317818)

Description

Running a front OE coilover setup? This is the cleanest way to level your truck. Multiple snap-ring grooves let you set the spring seat where you want it, giving up to 3" of front lift on your factory springs — no spacers, nothing stacked. The 46mm digressive piston keeps the ride composed and adds wheel travel while it's at it.

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Features

• Designed for trucks and SUVs with front OE coilover style suspension
• Multiple snap-ring grooves for 0-3 inches of front lift (depending on application)
• Monotube design
• 46mm digressive piston with self-adjusting deflective disc valve setting
• Increased wheel travel and improved handling
• Easiest way to level out your vehicle

Specs

• Collapsed Length: 12.95"
• Extended Length: 18.50"
• Stroke/Travel Length: 5.55"
• Upper Mount Type: Stem
• Lower Mount Type: Bar Pin
• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)


Notes

• Provides certain models 6" Front Lift when utilizing stock length shock with lift spacer Without Electronic Suspension
