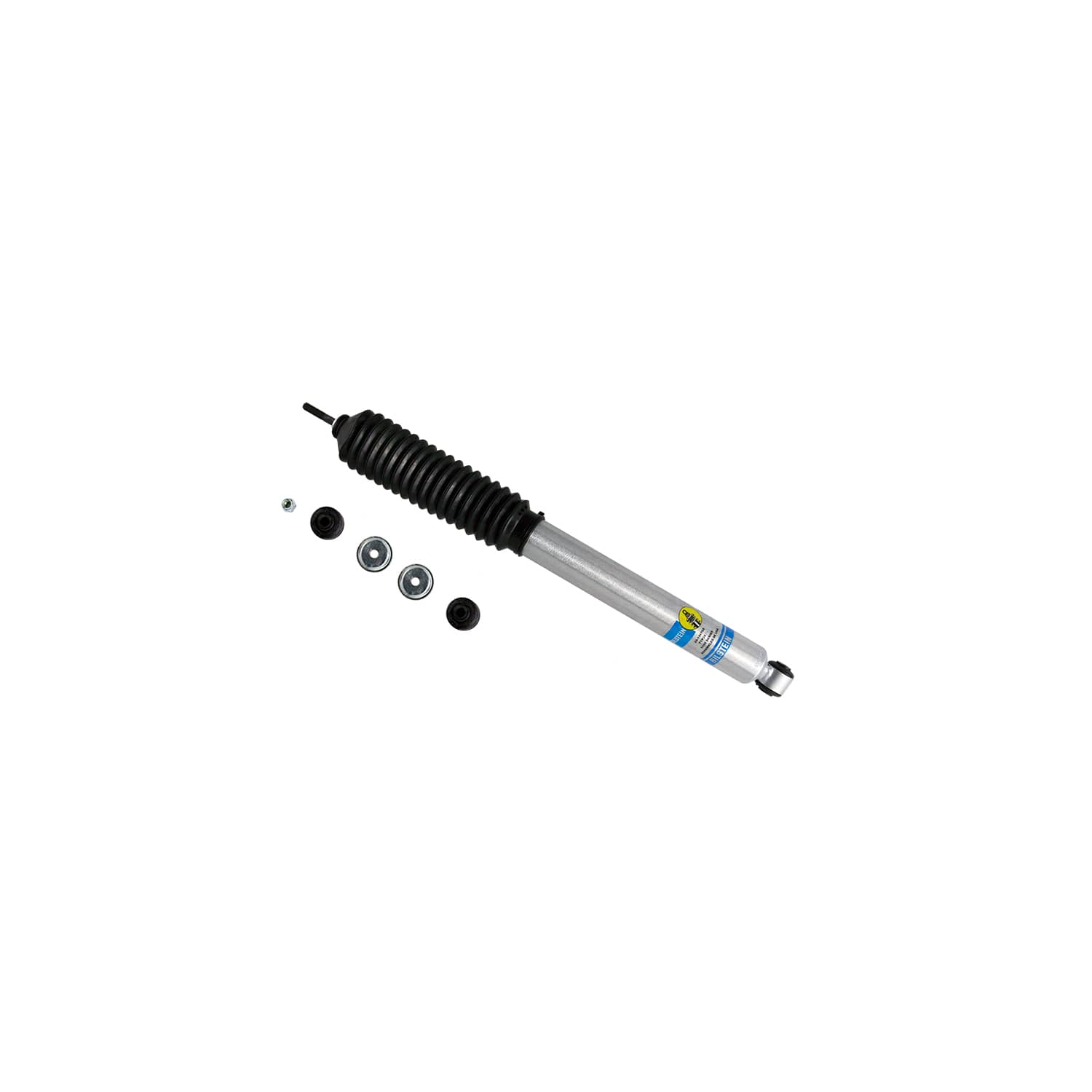

2007-2018 Wrangler Front 1.5-3" Lift B8 5100 Shock (24-146708)

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique velocity sensitive digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality handling and comfort.

Features

• Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV's.
• These shock absorbers feature a monotube design which provides consistent fade free performance.
• B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions.
• All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved.
• B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Specs

• Collapsed Length (in): 14.98
• Extended Length (in): 24.63
• Stroke/travel Length (in): 9.65
• Lower Mount Type: Eye 12.1mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Boot Included: Black Bellows
• Spring Seat Included: No
• Shaft Diameter: 14mm
• Adjustable Damping: Non-Adjustable
