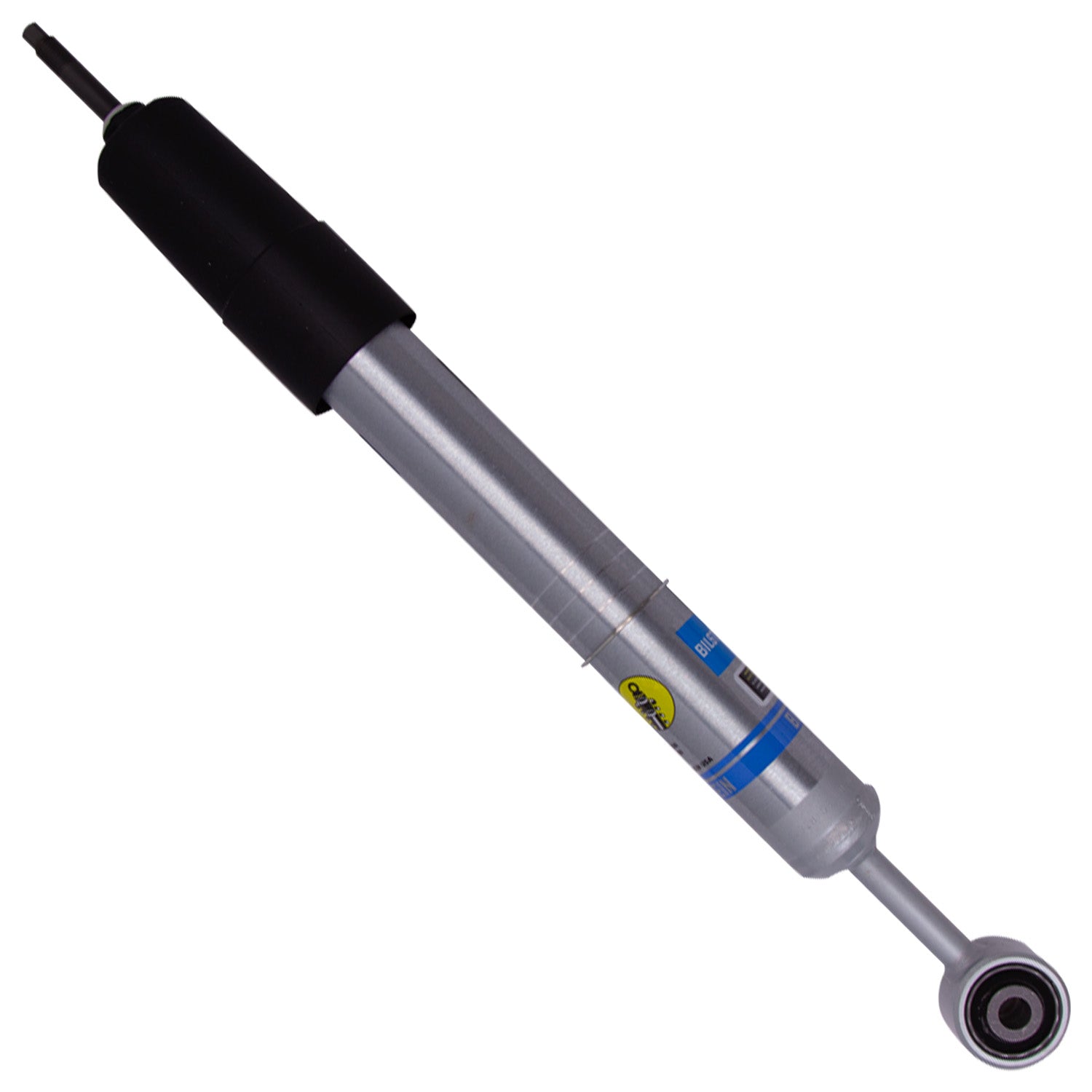

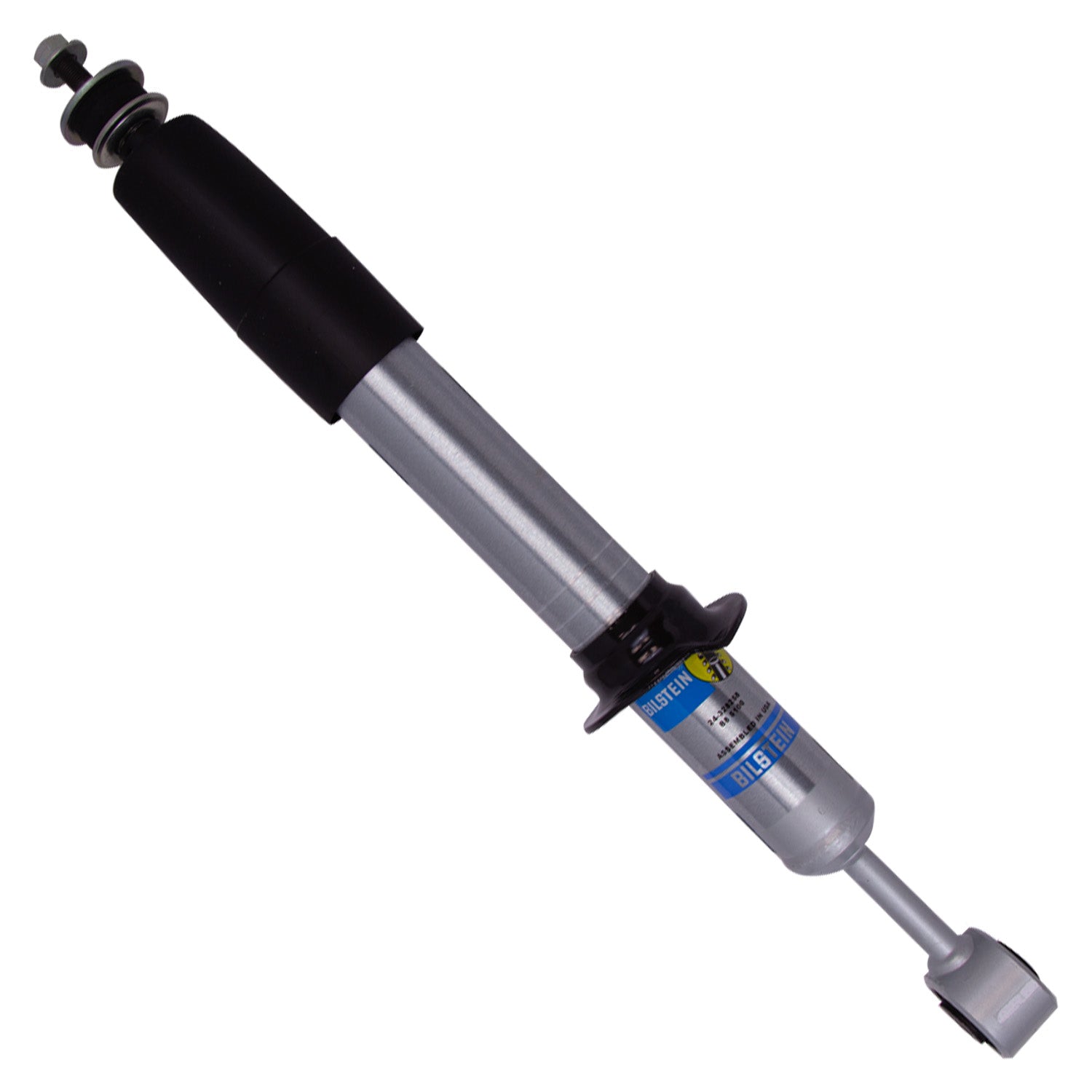

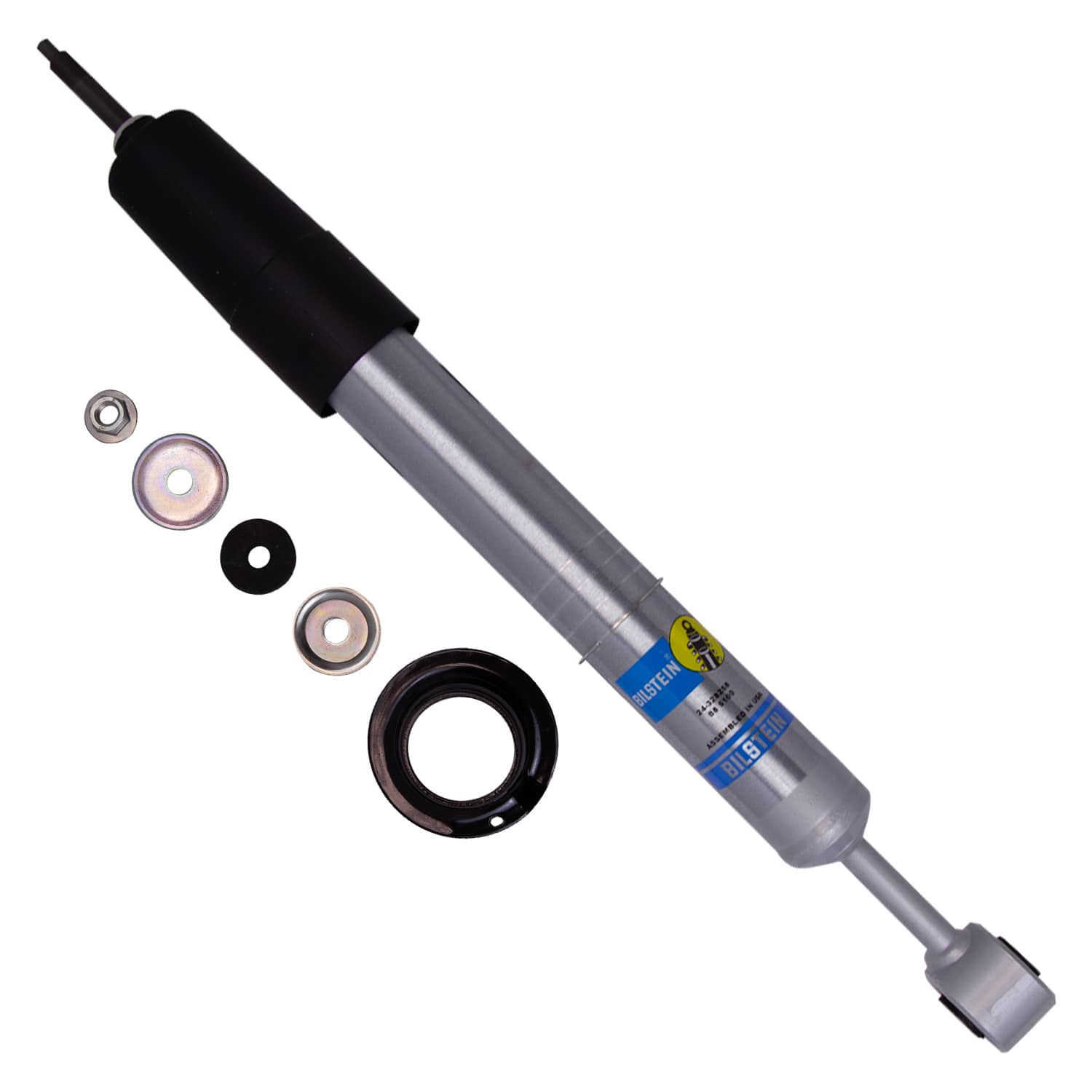

2010-2024 4Runner/GX460 Front 0-2.5" Lift B8 5100 Adj Shock (24-328258)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75" of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

• Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension.
• Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75" of front lift with OE springs (depending on application).
• The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.
• Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.
• Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Specs

• Collapsed Length (in): 17.50
• Extended Length (in): 22.31
• Stroke/travel Length (in): 4.81
• Lower Mount Type: Eye 14.2mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
