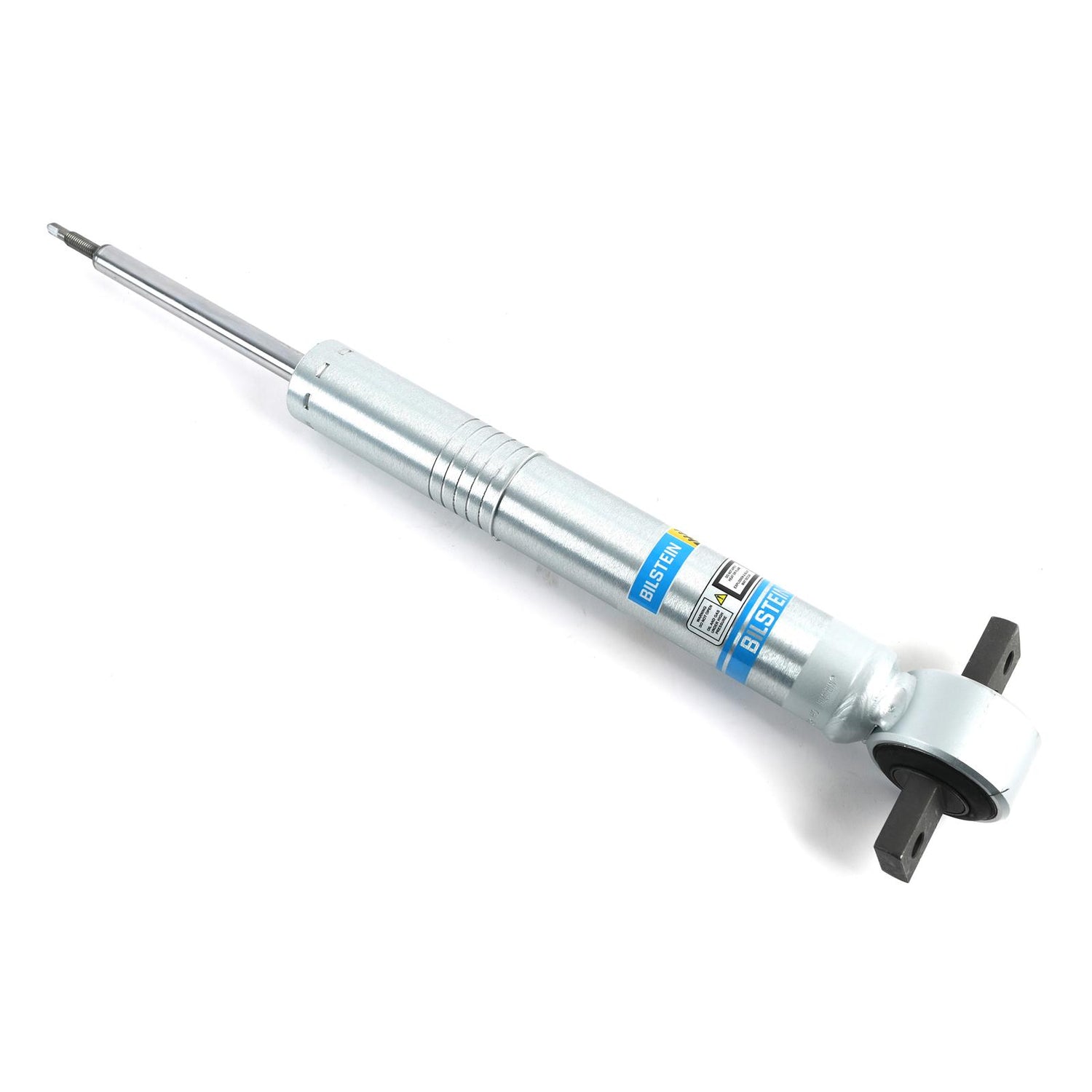

2019-2025 GM 1500 0-2.5" Lift Adj Front Shock (24-337052)

Engineered for 2019-2025 GM 1500 trucks, these Bilstein B8 5100 adjustable front shocks deliver 0-2.5" of lift using your factory springs. The 46mm digressive piston and self-adjusting deflective disc valve system optimize damping across varying terrain and load conditions. Multiple snap-ring grooves enable precise ride height customization without suspension modifications. Built on monotube technology, these shocks enhance wheel articulation and cornering stability while maintaining factory compatibility. Ideal for leveling applications or modest lift setups, they combine adjustability with proven durability for serious truck owners.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-2.75" of lift, depending on the application

Specs

• Collapsed Length (in): 16.28
• Extended Length (in): 21.65
• Stroke/travel Length (in): 5.37
• Lower Mount Type: Bar Pin
• Upper Mount Type: Stem
• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Shaft Diameter: 18mm
