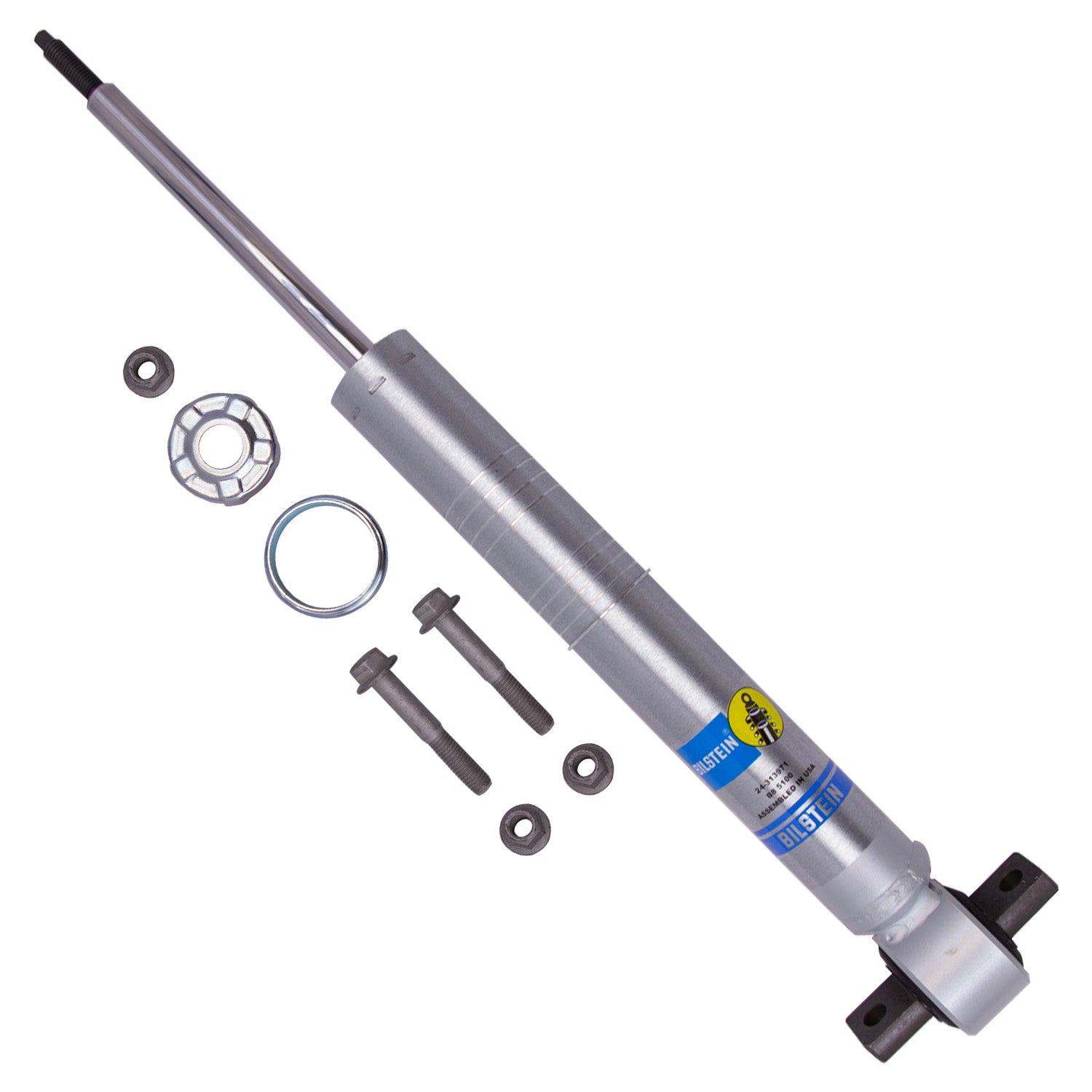

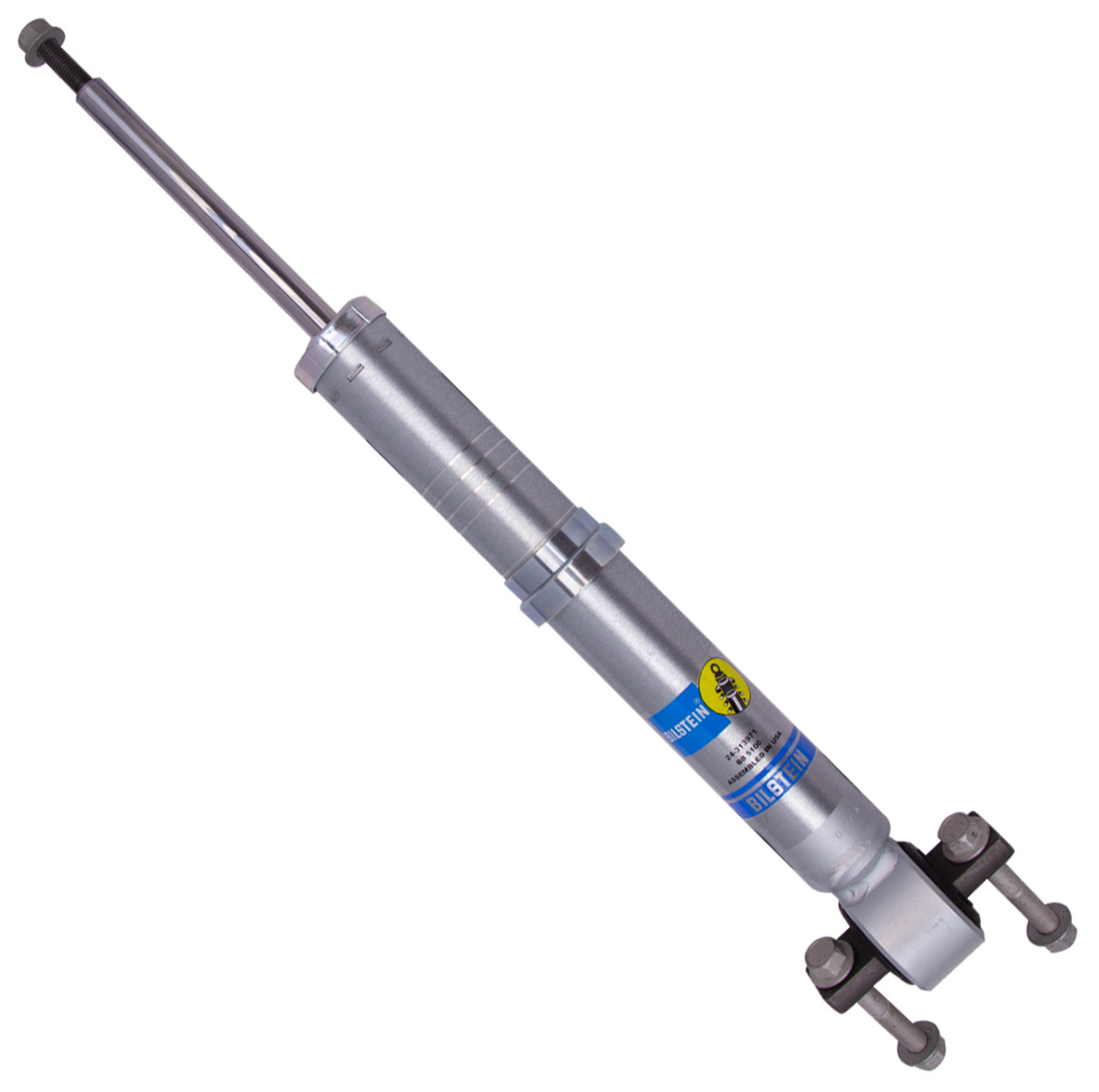

2021-2025 Bronco 4-Door 0-2.9" Lift 5100 Series Front Shock (24-313971)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Features

• Monotube design ensures consistent, fade-free performance.

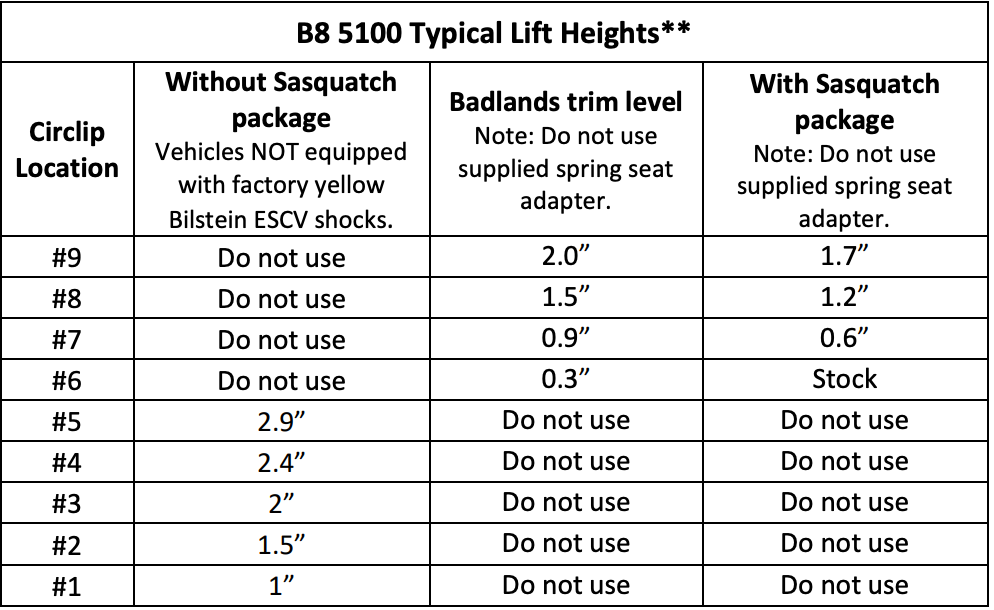

• Multiple snap-ring grooves allow for different spring seat positions.
• Direct-fit installation with no modifications required.
• Utilizes the vehicle's original equipment coil spring.

Specs

• Collapsed Length (in): 16.62
• Extended Length (in): 22.80
• Stroke/travel Length (in): 6.18
• Lower Mount Type: Crossbar
• Upper Mount Type: Stem
• Internal Design: Monotube
• Reservoir: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Boot Included: No
• Shaft Diameter: 18mm
