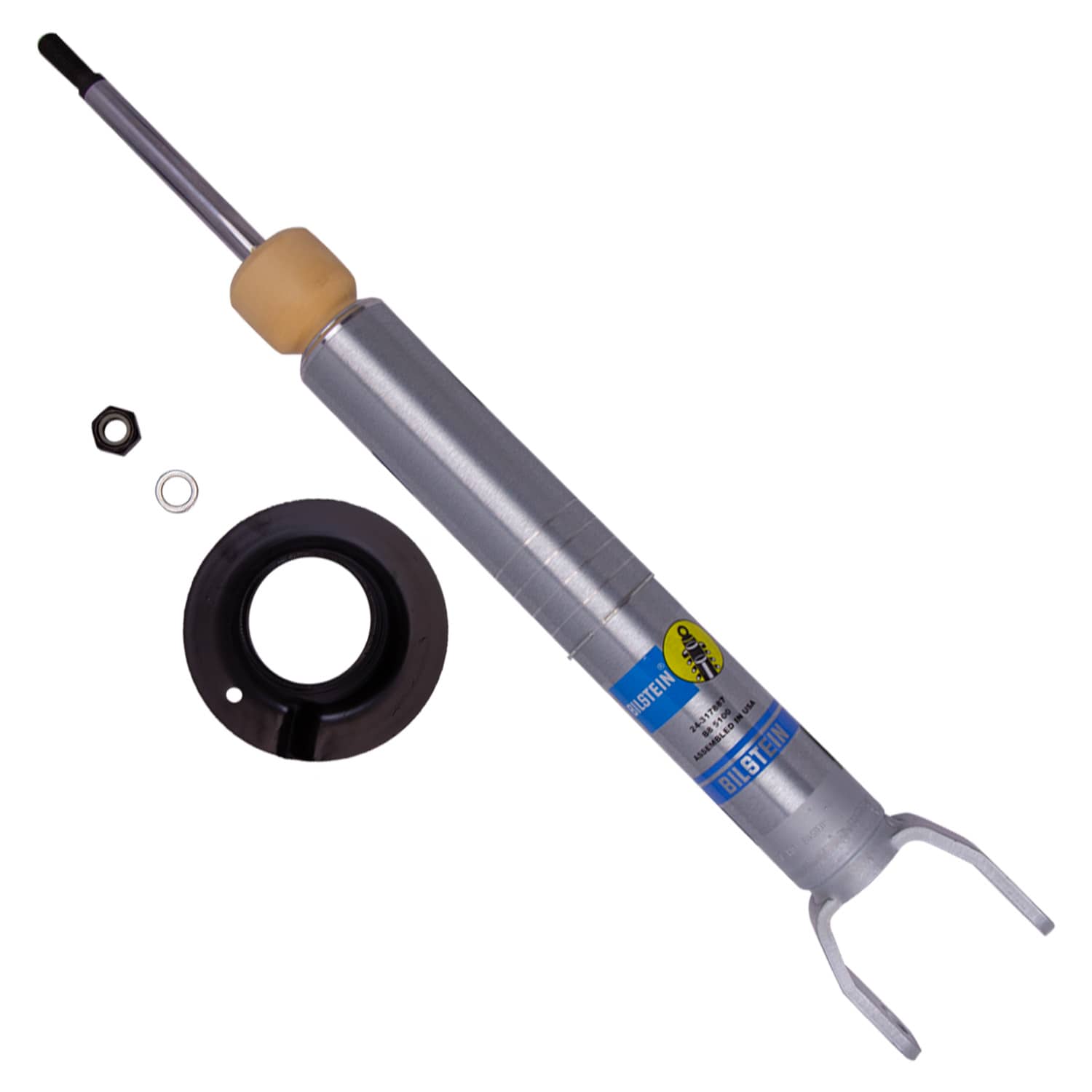

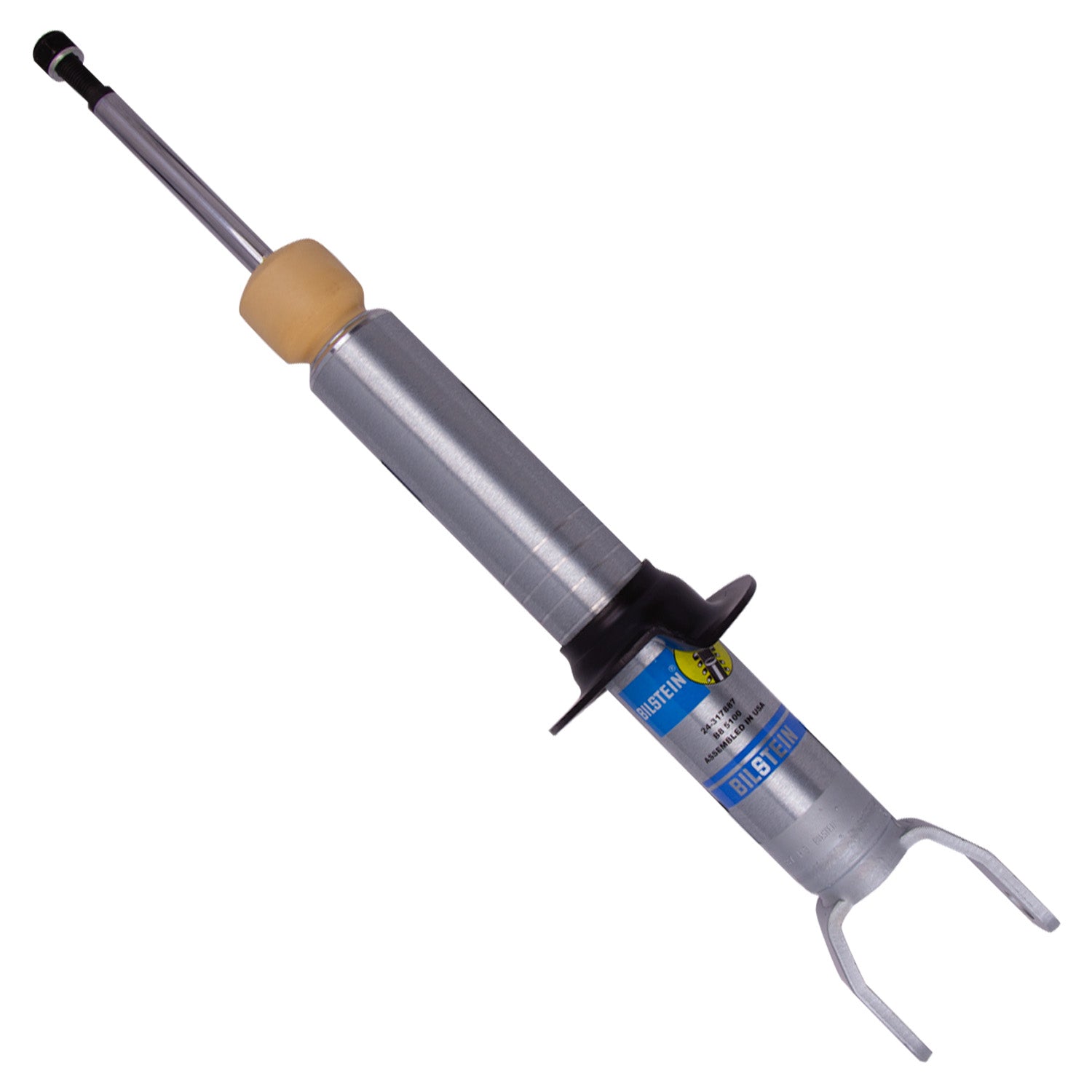

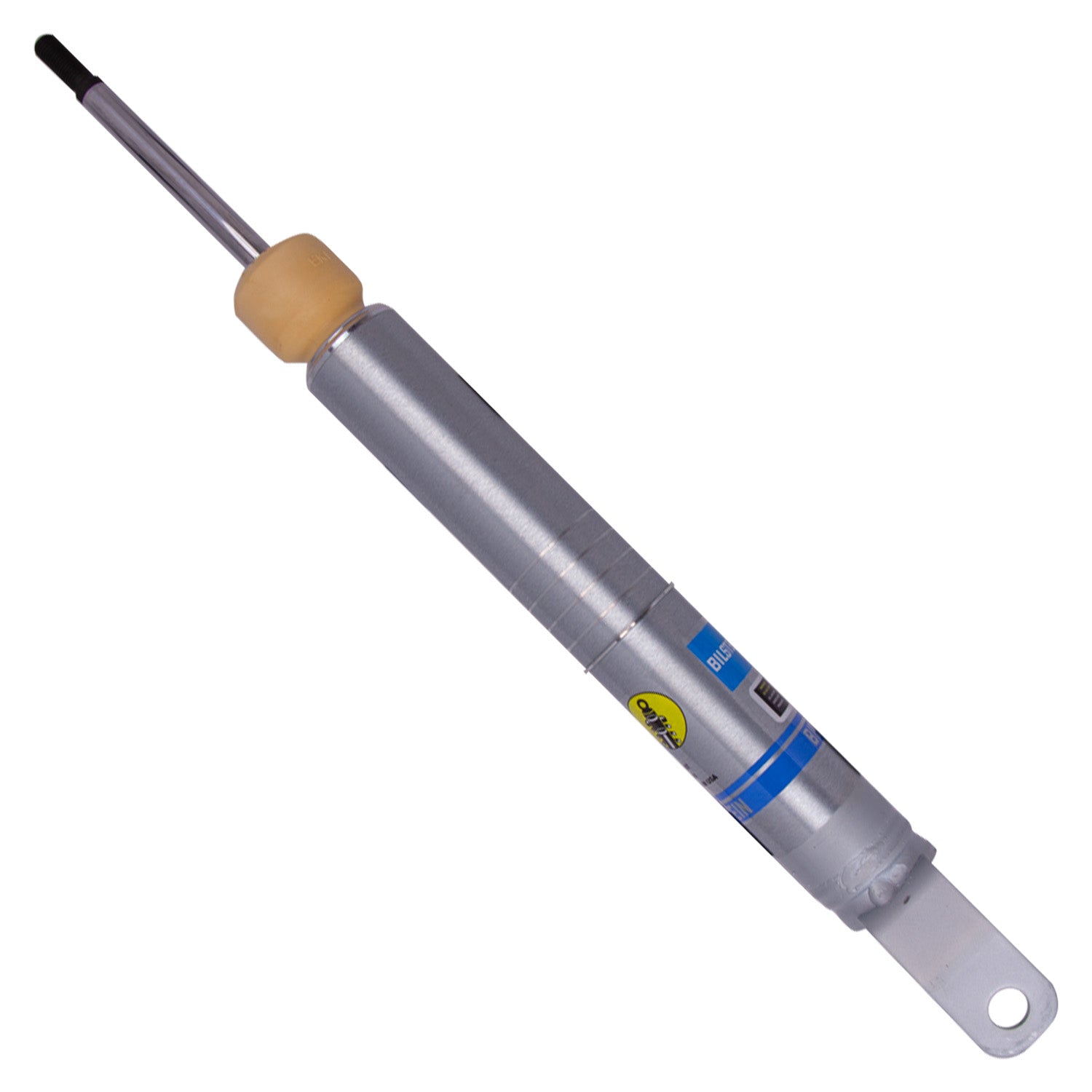

2009-2024 Ram 1500 0-2.75" Lift B8 5100 Series Front Shock (24-317887)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Features

• Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension.
• Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application).
• The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.
• Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.
• Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Specs

• Collapsed Length (in): 15.12
• Extended Length (in): 21.46
• Stroke/travel Length (in): 6.34
• Lower Mount Type: Clevis
• Upper Mount Type: Stem
• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
