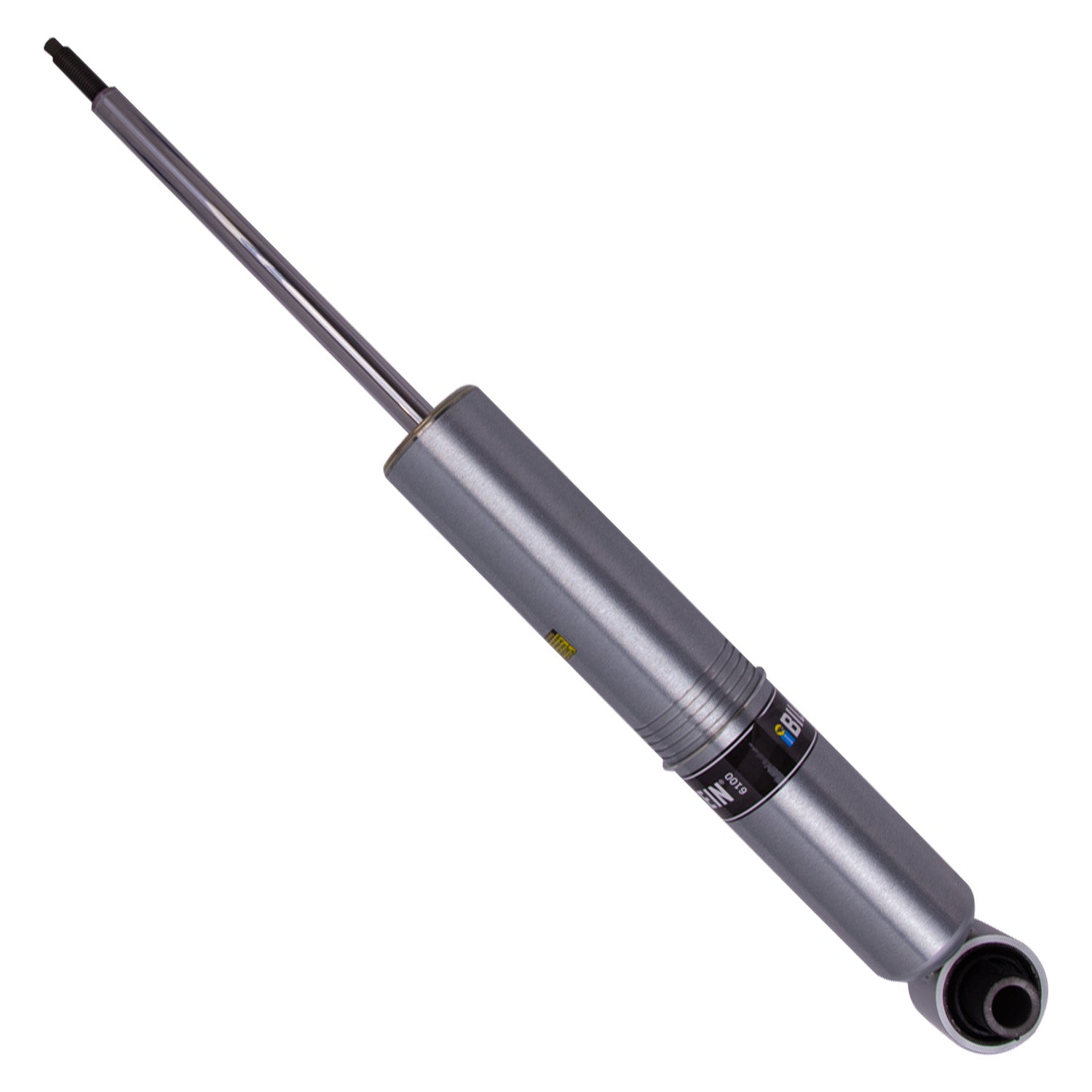

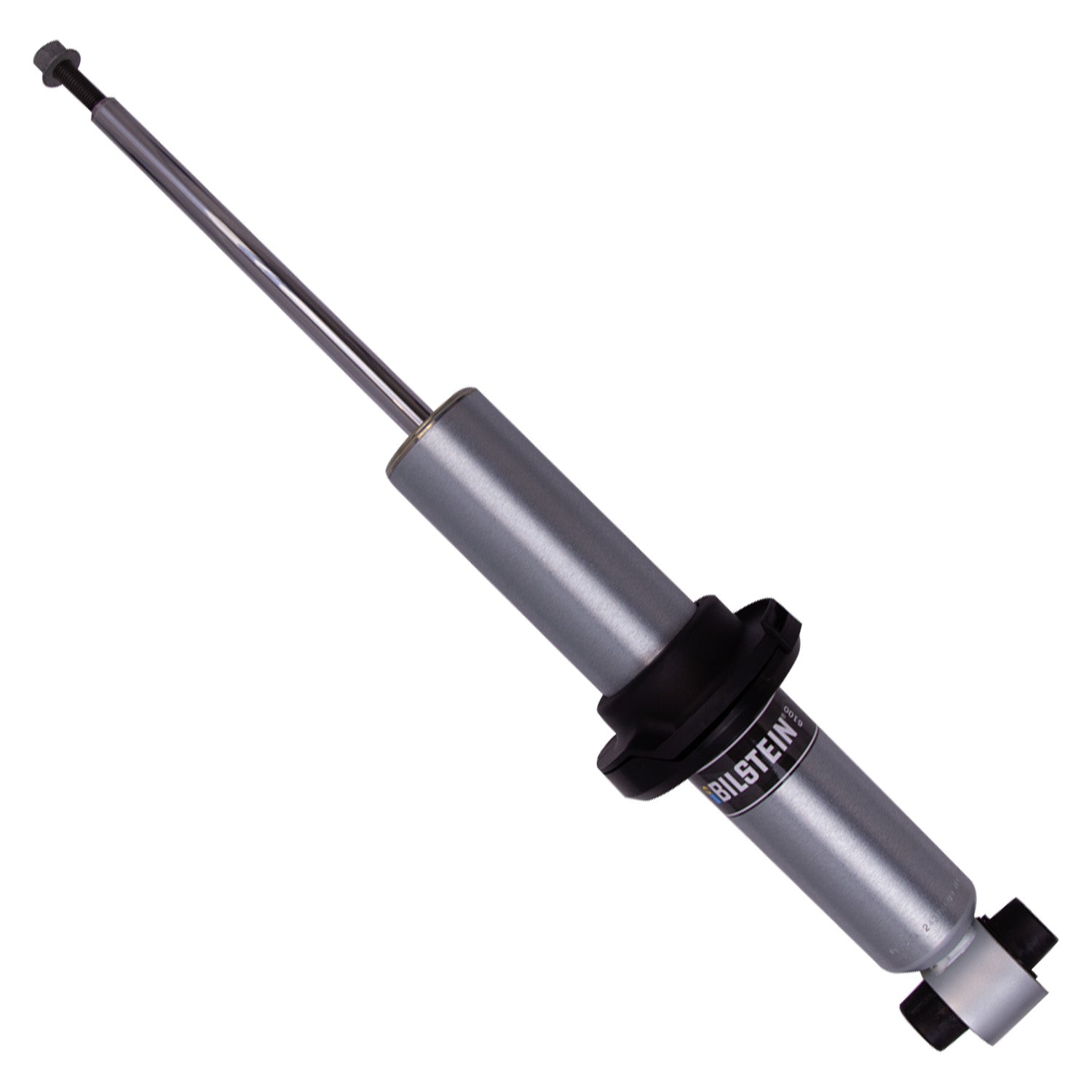

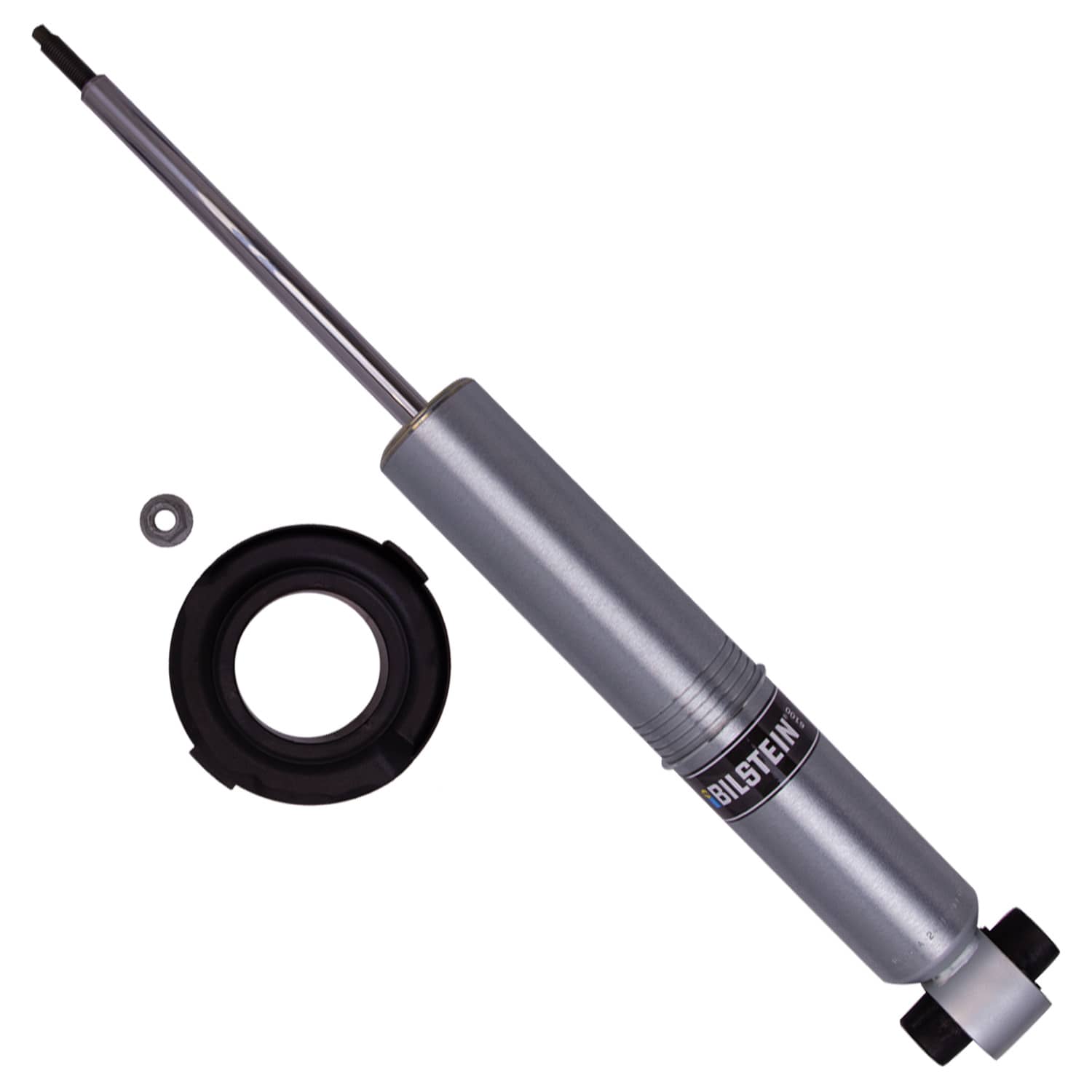

2021-2026 Bronco 4-Door 0-3" Lift B8 6100 Rear Shock (24-318600)

Description

The same adjustable-height idea as the 5100, built heavier. A 2.65" body and 60mm digressive piston move more oil and shed more heat, so damping stays consistent where a smaller shock would start to give up. Set anywhere from 0 to 3" of front lift on your OE springs.

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation making them perfect for vehicles subjected to rugged roads and harsh conditions.

• Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension.

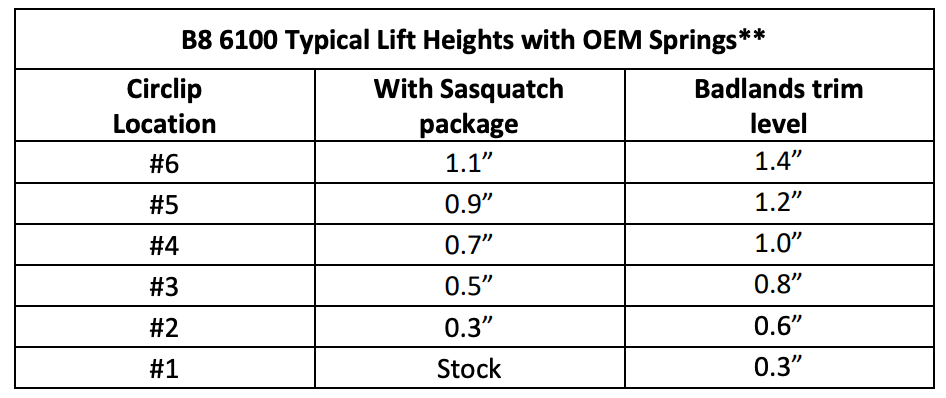

• Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application).
• The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston.
• This will provide a smoother ride while offering more control over rough terrain.
• The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

Features

• Improves ride control and handling
• Designed for application-specific fitment
• Series: B8 6100 (Ride Height Adjustable)
• Part Type: Height Adjustable Strut
• Position: Rear

Specs

• Collapsed Length (in): 17.11
• Extended Length (in): 25.56
• Stroke/travel Length (in): 4.15
• Lower Mount Type: Eye 20.2mm
• Upper Mount Type: Stem
• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (od): 2.65 in.
• Piston Diameter: 60mm
• Shaft Diameter: 18mm
