Universal Bonus Turn Signal Conversion Harness (H800)

Description

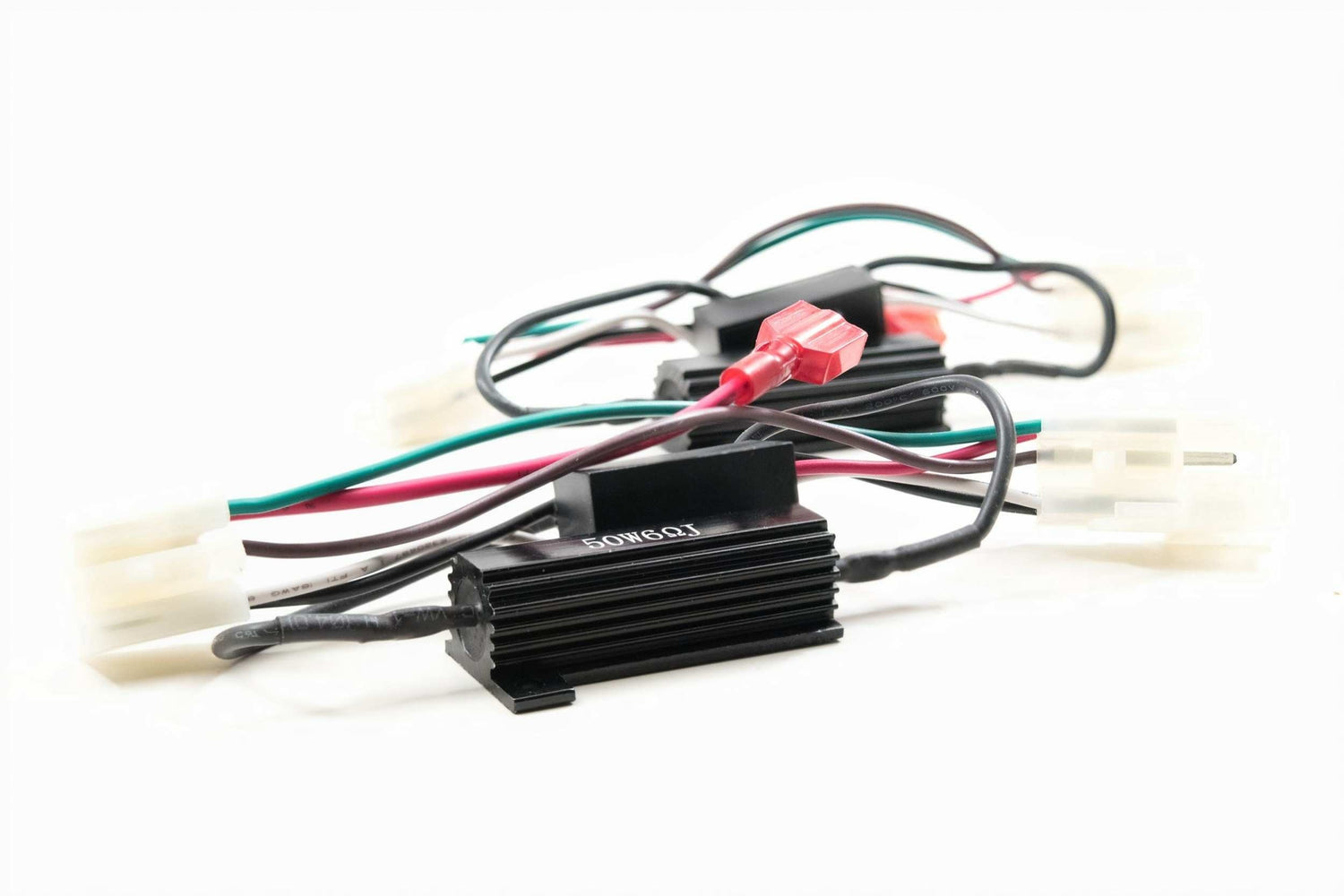

This simple in-line harness module allows 2015+ Subaru WRX and WRX STi owners to easily relocate their turn signal to the stock brake light position, freeing up the 7443 socket for enhanced backup lighting. With a simple plug-and-play installation requiring no tail light removal, it simplifies wiring for improved rear illumination. The remaining T-tap connector provides flexibility for powering the OEM turn signal socket with an LED bulb, offering options for backup, turn signal, or running light functionality.

Part Number: H800

Features

• Wiring Module: 1x Bonus Turn Signal Conversion Harness
• Warranty: 1 Year

Notes

• This module plugs into the back of the stock tail light housings on the 2015+ Subaru WRX and WRX STi.
• It moves the separate turn signal (a 7443 bulb) to the stock brake light position.
• This frees up the 7443 socket for additional back up lighting intensity alongside the 921 reverse light.
• No tail light removal is necessary for installation.
• The remaining T-tap connector allows you to select how the OEM turn signal socket receives power.
• You must use an LED bulb with the T-tap, as incandescent bulbs require too much power.
• Green = Backup Light. Red = Turn Signal. Yellow = Running Light. Black (Input Side) = Brake Light. Black (Output Side) = Brake and Turn Signal.
