2005-2025 Tacoma and 2004-2025 Colorado Canyon Short Bed IBEX A1 Bed Rack Lighting Kit (DD8724)

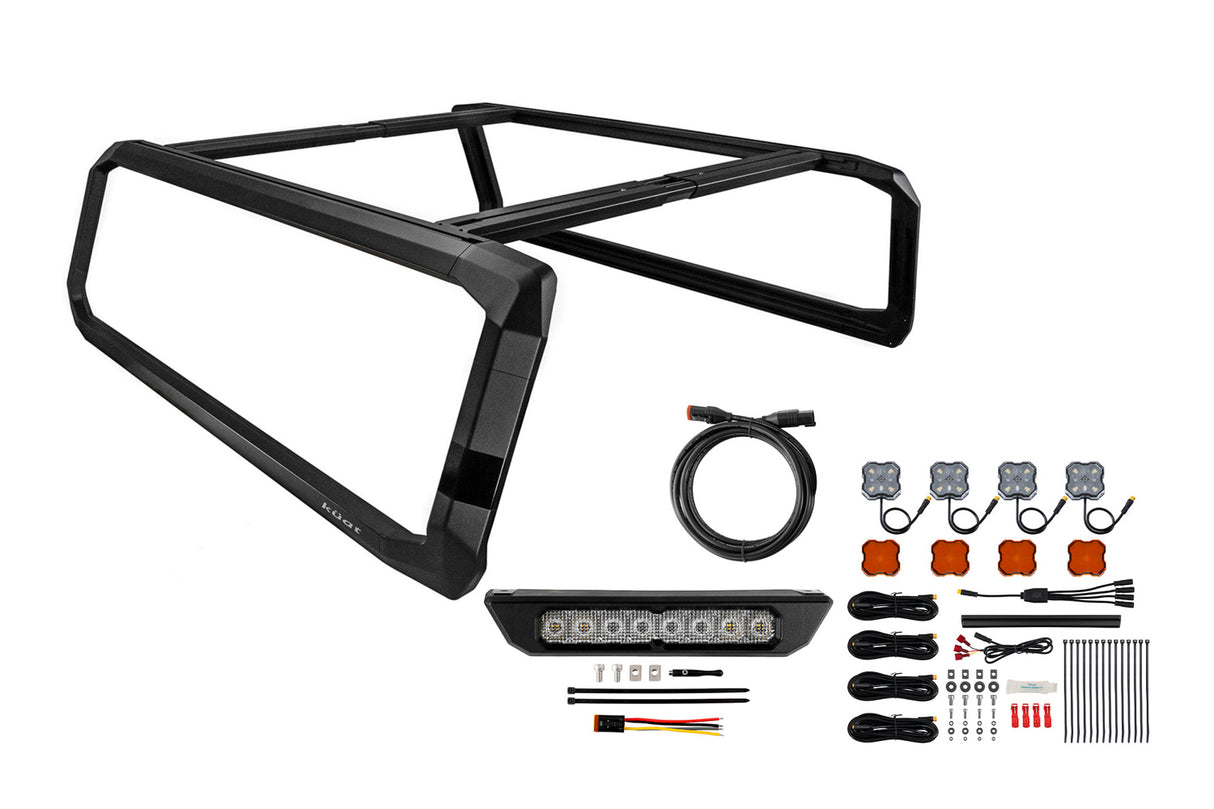

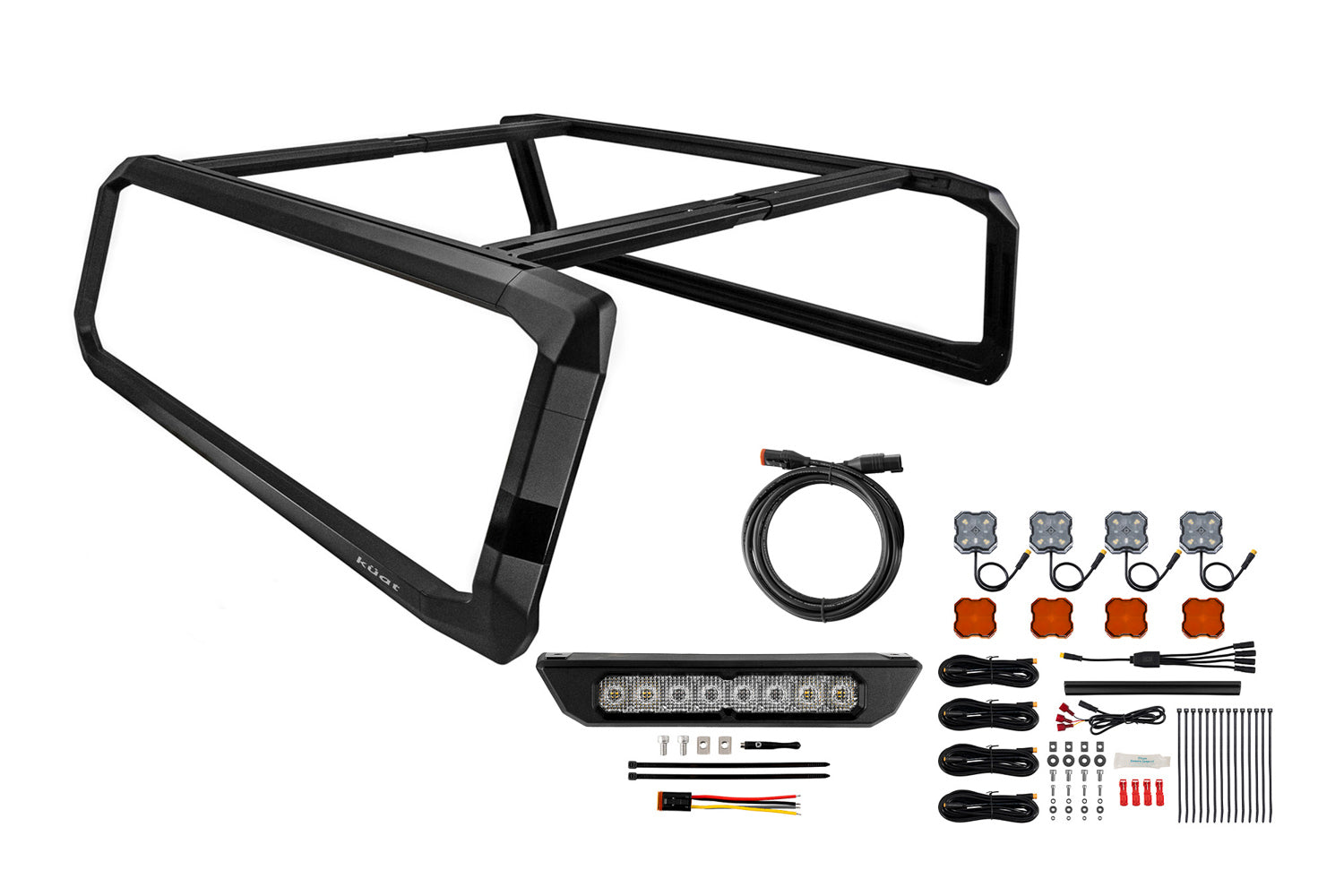

This is not a bare bed rack. Diode Dynamics pairs the Kuat IBEX A1 rack with a full lighting package, so the truck goes from stock bed to fully built overland setup in one afternoon. In the box you get the IBEX A1 rack, an SS10 Chase Lightbar, four Stage Series Rock Lights with both white diffused and amber lenses, a magnetic programming tool, all the extension wires, an M8 4-way splitter, a DT 4-pin pigtail and a T-tap harness, plus mounting hardware and the install guide.

The rack itself is powdercoated aluminum with adjustable telescopic crossbars and integrated T-channels for mounting accessories, rated to 1,200 lb static and 300 lb dynamic. Nothing needs to be drilled and the vehicle is not modified. IBEX racks are sized by bed dimension rather than by vehicle, which is why one part number legitimately covers this many trucks and model years, and it is also why you should measure before you order. Plan on two to three hours with basic tools.

Features

• Complete kit including the IBEX A1 bed rack, SS10 Chase Lightbar and four Stage Series Rock Lights
• Four white diffused lenses and four amber lenses included
• Magnetic programming tool, extension wires, M8 4-way splitter, DT 4-pin pigtail and T-tap harness included
• Sized by bed dimension rather than by vehicle
• Adjustable telescopic crossbars
• Integrated T-channels for accessory mounting
• Powdercoated aluminum construction
• 1,200 lb static load rating and 300 lb dynamic load rating
• 63 in bed interior length, 37.5 in to 50.375 in bed interior width range
• No drilling required and no vehicle modification
• Installs in 2 to 3 hours with basic tools

Notes

• Short bed only. Fitment is determined by measuring interior bed length of 63 in and interior bed rail width of 37.5 in to 50.375 in. Measure your truck rather than assuming by model year.
• Tonneau compatibility is limited to select retractable covers including Retrax, EGR and others. Folding and hard fold covers are not claimed compatible.
