2016-2023 Tacoma SS30 White Combo Stealth Lightbar Kit (DIODD6072)

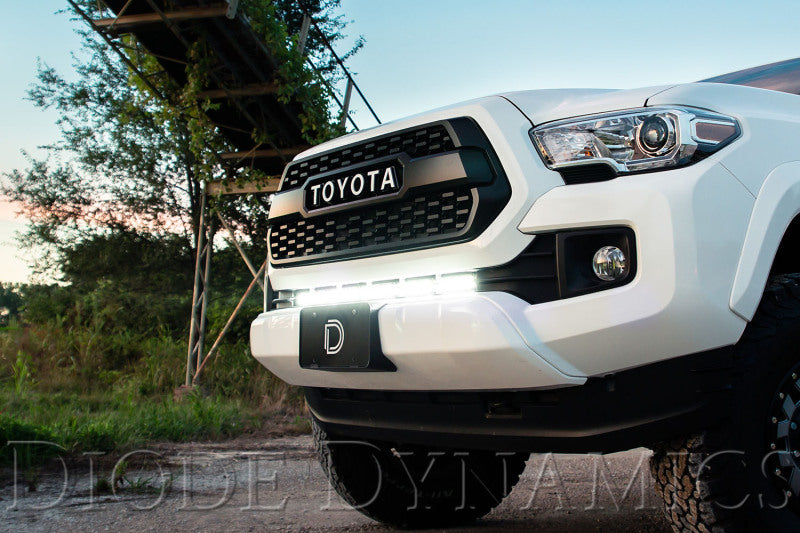

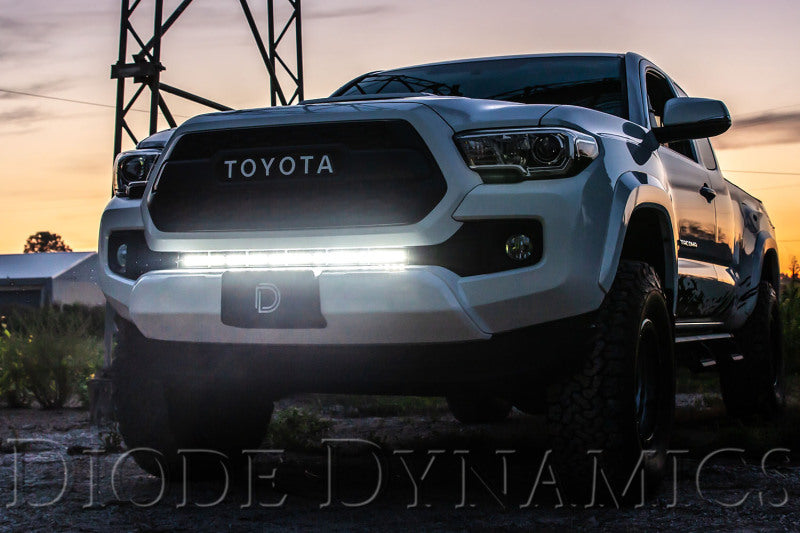

If you are looking to maximize your Toyota Tacoma's long-range visibility without altering its factory aesthetic, the Stealth Lightbar Kit is the perfect high-performance solution. This kit is engineered to mount a powerful 30 inch Stage Series Lightbar discreetly behind the lower grille, providing a clean, low-profile appearance while delivering a massive wall of light on command. The White Combo variant is designed for ultimate versatility, utilizing a hybrid optic system that merges the long-distance punch of a driving beam with the wide-reaching spread of a flood light.

Features

• Stealth Mounting Design: Discreetly hides a full 30 inch lightbar behind the lower grille, maintaining your vehicle’s factory styling while adding extreme auxiliary lighting.
• Advanced TIR Optics: Patented Total Internal Reflection technology serves as both the internal reflector and main lens, ensuring maximum efficiency and a perfectly focused beam.
• Versatile Combo Pattern: Combines driving and flood optics into a single bar, providing a balanced rectangular field of vision that handles both distance and peripheral width.
• High-Intensity White Output: Delivers a crisp 6000K cool white light that matches modern LED lighting and provides excellent color rendering in dark environments.
• Bolt-On Integration: Includes heavy-duty stainless steel brackets that utilize existing factory mounting points for a secure, vibration-free installation without drilling.

Specs

• Traffic Pattern : Combo (Driving and Flood Hybrid)
• Color Temperature : 6000K (Cool White)
• Measured Output : 3,400 Lumens
• Peak Beam Intensity : 110,000 Candela
• Power Level : Classic
• Wattage : 64.4W
• Current Draw : 4.6A @ 12.8V
• Operating Voltage : 9-16V
• Materials : Aluminum Extrusion with Polycarbonate Lens
• Weather Rating : IP67 Waterproof

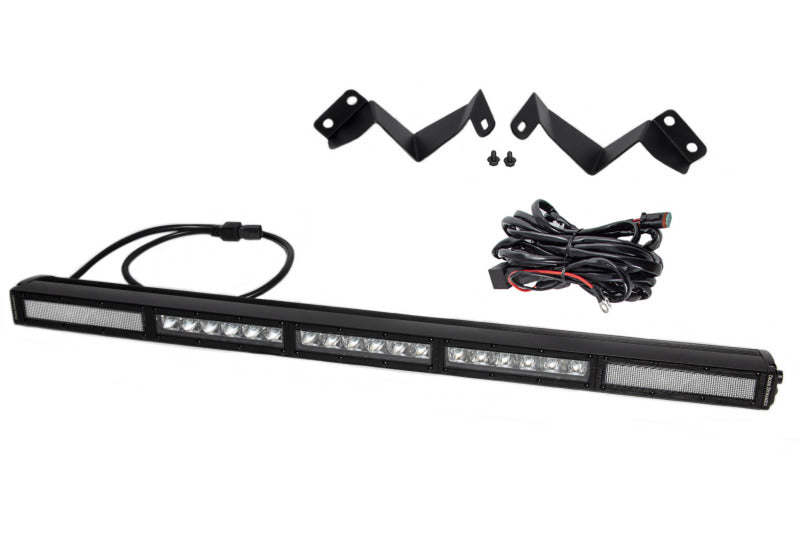

Includes

• Lightbar : One 30 inch Stage Series LED Lightbar
• Brackets : Two Vehicle-specific heavy-duty steel mounting brackets
• Wiring : One Heavy-duty dual output harness with toggle switch
• Hardware : All necessary stainless steel hardware for a complete installation

Notes

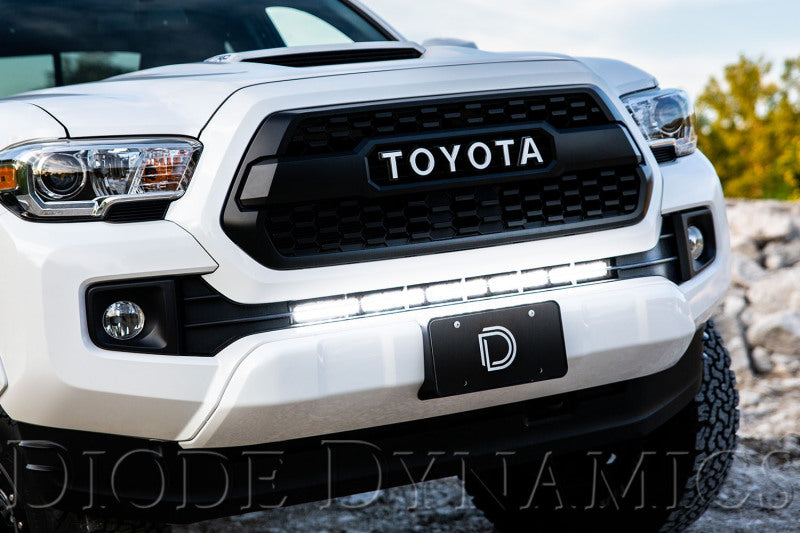

• Lightbar remains hidden behind the lower grille for a stealthy appearance
• Main beam is intended for off-road or auxiliary use only
