2016-2023 Tacoma SS30 White Driving Stealth Lightbar Kit (DIODD6070)

For Tacoma owners who need to extend their vision further down the road without sacrificing a clean, factory appearance, the Stealth Lightbar Kit is the ultimate high-speed upgrade. This kit allows you to mount a 30 inch Stage Series Lightbar discreetly behind your lower grille, providing a powerful punch of light that remains hidden until you flip the switch. The White Driving variant is engineered specifically to supplement your factory high beams, utilizing a focused rectangular beam pattern that illuminates the path far into the distance. By leveraging custom-molded Total Internal Reflection technology, this lightbar captures every bit of output from the high-intensity LEDs and directs it onto the road with maximum efficiency.

Features

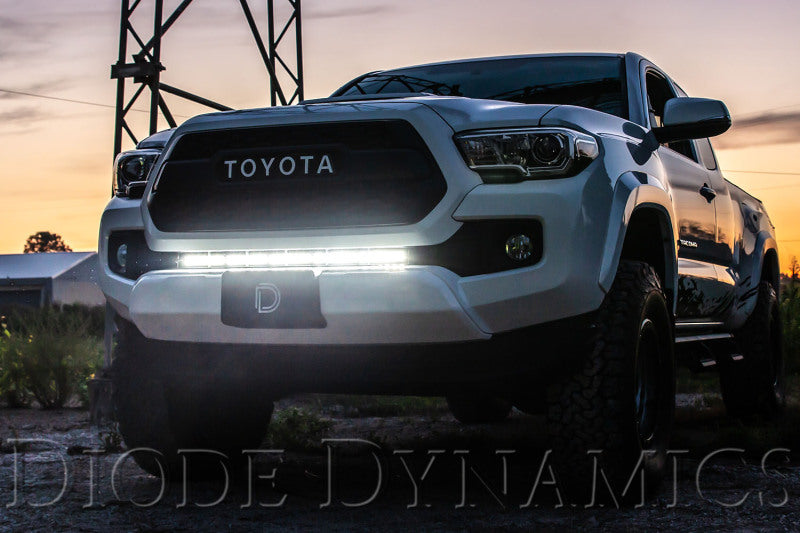

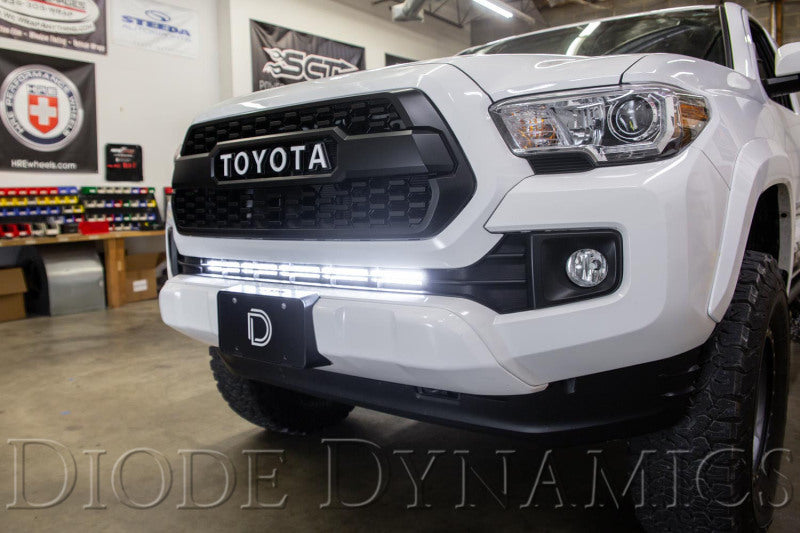

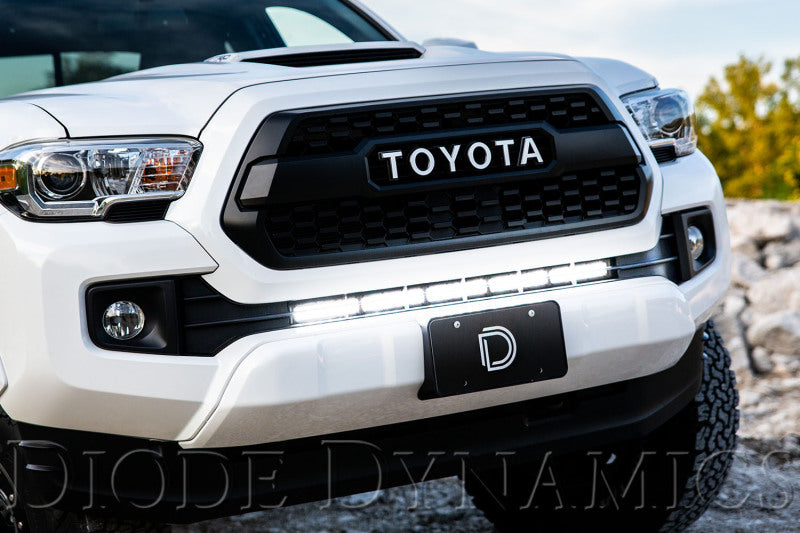

• Hidden Stealth Mount: Discreetly positions a 30 inch lightbar behind the lower bumper grille, maintaining the truck's original lines while adding massive auxiliary power.
• High-Efficiency TIR Optics: Patented Total Internal Reflection technology captures all light from the emitters and projects it forward, outperforming traditional reflectors and lenses.
• Focused Driving Pattern: Engineered with a functional rectangular spread designed to provide long-range distance visibility, perfect for high-speed driving and trail spotting.
• Crisp White Output: Delivers a 6000K cool white color temperature that matches factory LED setups and provides superior clarity in the darkest environments.
• Direct Bolt-On Fit: Includes heavy-duty stainless steel brackets that utilize existing factory mounting points for a secure installation without the need for drilling or cutting.

Specs

• Traffic Pattern : Driving
• Color Temperature : 6000K (Cool White)
• Measured Output : 3,400 Lumens
• Peak Beam Intensity : 110,000 Candela
• Power Level : Classic
• Wattage : 64.4W
• Current Draw : 4.6A @ 12.8V
• Operating Voltage : 9-16V
• Materials : Aluminum Extrusion with Polycarbonate Lens
• Weather Rating : IP67 Waterproof

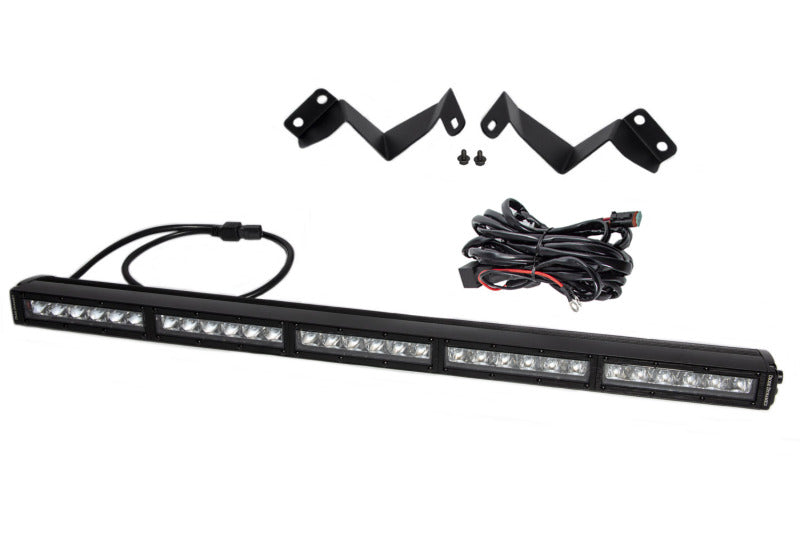

Includes

• Lightbar : One 30 inch Stage Series LED Lightbar
• Brackets : Two Vehicle-specific heavy-duty steel mounting brackets
• Wiring : One Heavy-duty dual output harness with toggle switch
• Hardware : All necessary stainless steel hardware for a complete installation

Notes

• Maintains SAE J581 standards as a Driving/Auxiliary High Beam when installed as a pair and aimed correctly
• Designed specifically for mounting behind the lower grille of the Tacoma
