2018-2026 JL Wrangler Elite Max LED Headlights (DIODD5165)

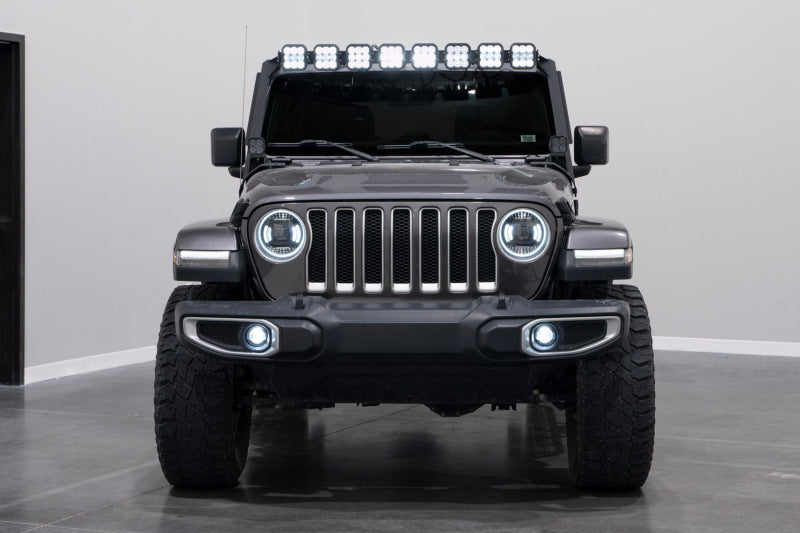

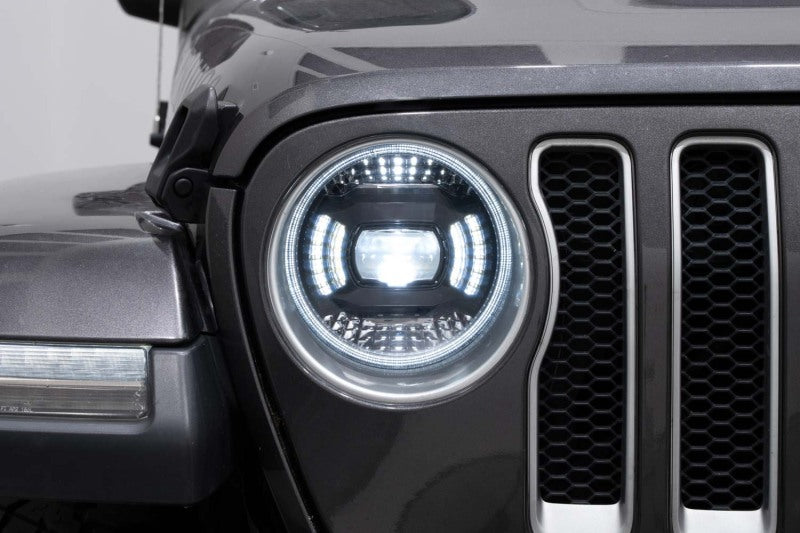

If you are ready to completely redefine the performance and personality of your Jeep, the Elite Max LED Headlights for the JL Wrangler are the ultimate upgrade. Engineered and assembled in the USA, these 9-inch units outperform both factory halogen and OEM LED options by utilizing a modern bi-LED projector that delivers nearly double the peak intensity of stock lamps. The Elite Max model is packed with features designed for the hardcore enthusiast, including a patent-pending Trail Light off-road feature that illuminates the top and bottom reflectors to flood the trail in a wide beam. Beyond raw power, these headlights offer a selectable DRL halo that can be toggled between white and amber directly from your cabin using existing factory controls.

Features

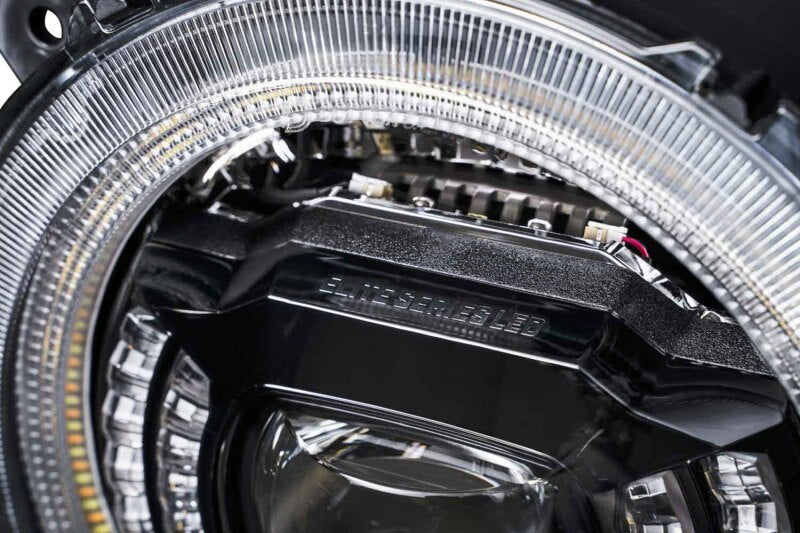

• High-Performance Bi-LED Projectors: Delivers a sharp cutoff with massive center intensity and width, providing superior forward visibility for high-speed driving.
• Patent-Pending Trail Lights: Integrated off-road lighting reflectors provide extra-wide illumination for technical trails, easily activated via a toggle or factory aux switch.
• Selectable DRL & Switchback Signal: Programmable halo DRL allows you to switch colors on the fly. The switchback feature provides a brilliant amber turn signal before returning to your selected DRL.
• Modern Welcome Sequence: Greets you with a gradual illumination of the LEDs when the vehicle is unlocked, showcasing the advanced technology inside.
• Show Mode Ready: Exclusive to the Max model, Show Mode features four distinct patterns (Gradual, White Strobe, Amber Strobe, or Alternating) for stationary displays.

Specs

• Power Level : Elite Max
• Color Temperature : 6000K (Cool White)
• Measured Lumens : Low Beam: 917 / High Beam: 1,398
• Peak Beam Intensity : Low Beam: 54,500 cd / High Beam: 76,000 cd
• Wattage : 51W (High Beam)
• Operating Voltage : 9-16V
• Materials : UV-Coated Polycarbonate Lens, Cast Aluminum Heatsink
• Weather Rating : IP67 Weatherproof
• Operating Temperature : -40°C to 85°C (-40°F to 185°F)

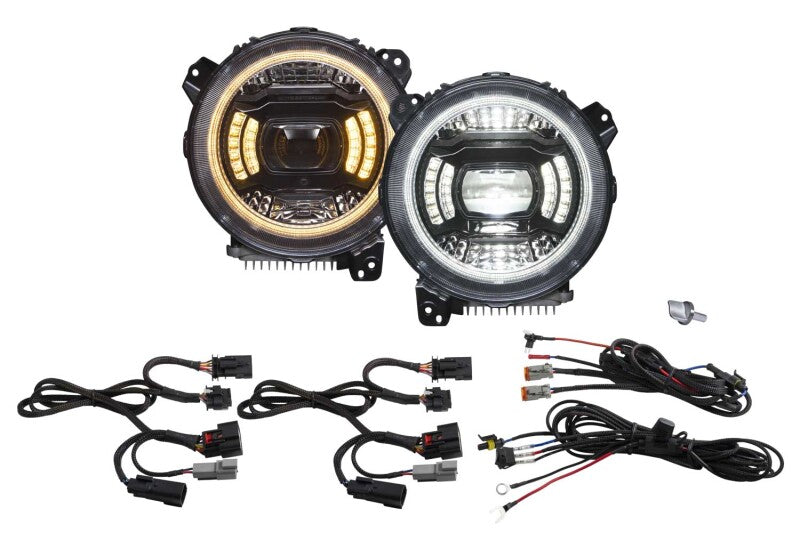

Includes

• Headlamps : Pair of Elite Max LED Headlights (Left and Right)
• Harnesses : Two (2) Adapter Harnesses and one (1) DRL Auxiliary Tap Harness
• Off-Road Harness : One (1) Braided harness with toggle switch for Trail Lights
• Tool : One (1) 4mm Hex Adjuster Tool for precision aiming

Notes

• Elite Max turn signals are SAE-compliant, making them a perfect solution for fender chop kits
• DRL programming (color and bar settings) is done using existing vehicle controls, no external controllers needed
• Backed by an industry-leading 8-year limited warranty
