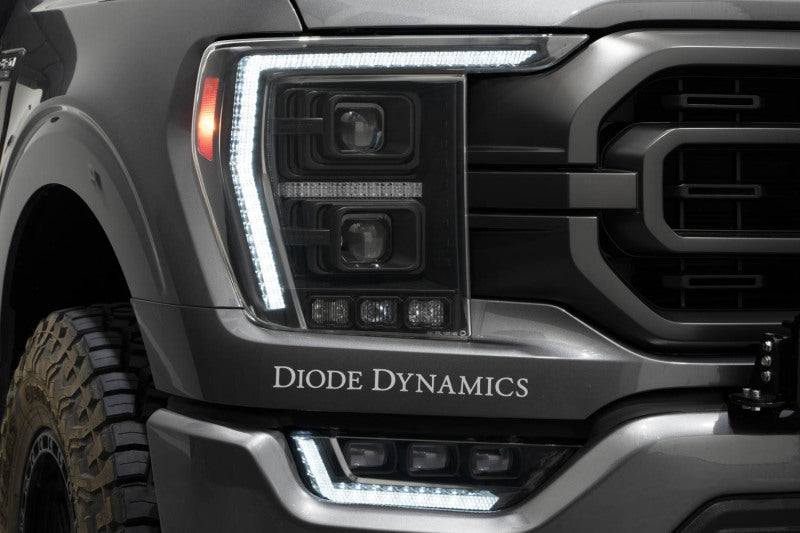

2021-2023 F-150 Elite Max LED Headlights (DIODD5167)

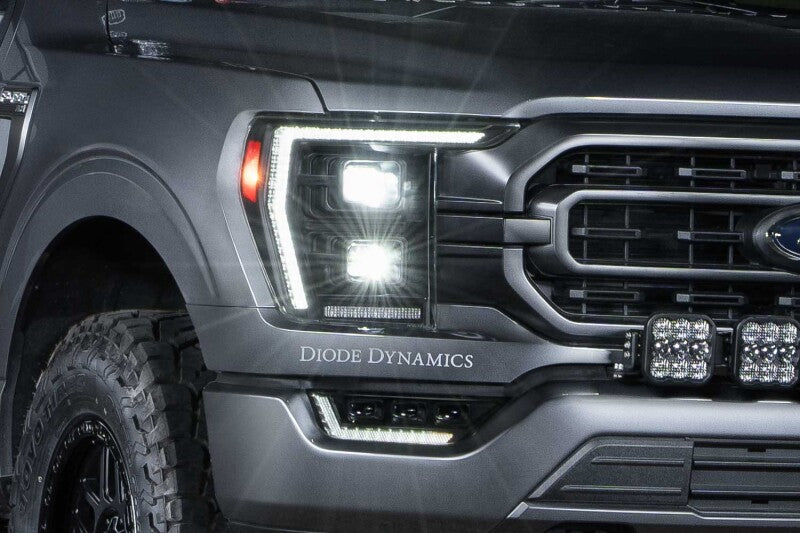

If you want to push the boundaries of what is possible for your truck's lighting, the Elite Max LED Headlights for the F-150 are the ultimate technological powerhouse. Designed specifically to replace factory non-projector (halogen) housings, these headlights are 100% engineered and assembled in the USA to provide unmatched performance and OEM-grade quality. The Elite Max model features dual bi-LED projectors that deliver nearly double the peak intensity of premium factory projector lamps, offering a razor-sharp cutoff and incredible width. Beyond the massive increase in standard lighting, the Elite Max introduces exclusive features like Adaptive Low Beam Assist for extreme cornering width and High Beam Boost for extra down-range punch. When the pavement ends, the integrated Trail Light feature activates triple SSC2-style pods to flood the trail with off-road illumination. Finished with a selectable-color Blade DRL and a modern welcome sequence, these headlights represent the pinnacle of aftermarket lighting technology.

Features

• Advanced Bi-LED Projectors: Dual rectangular projectors provide industry-leading output for both low and high beams, outperforming the most premium factory lighting options.
• Adaptive Low Beam Assist: Patent-pending technology illuminates auxiliary pods to add extreme width to the sides of the road when turning or as a constant low-beam supplement.
• Integrated Trail Lights: Features built-in triple pods at the base of the housing for dedicated off-road lighting, easily controlled via an auxiliary switch or included harness.

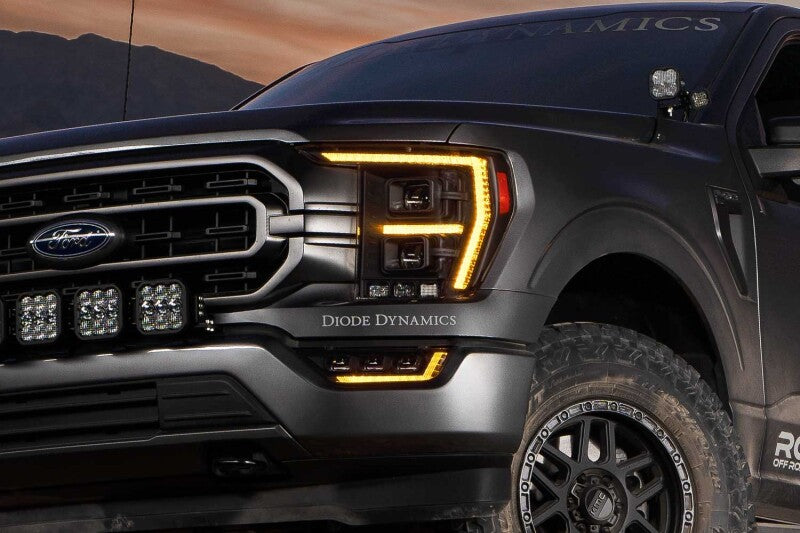

• Selectable Blade DRL: Solid-blade optics offer a customizable look, allowing you to choose between white and amber DRL colors directly from the cabin without extra controllers.
• Show Mode & Welcome Sequence: Includes a modern gradual startup sequence and multiple strobe/gradual show modes, perfect for making an impression at events or meets.

Specs

• Power Level : Elite Max
• OEM Style Compatibility : Non-Projector (Halogen Replacement)
• Color Temperature : 6000K (Cool White)
• Measured Lumens : Low Beam: 665 / High Beam: 1,210 / Off-Road: 1,720
• Peak Beam Intensity : Low Beam: 89,100 cd / High Beam: 106,200 cd / Off-Road: 102,150 cd
• Wattage : Low Beam: 30W / High Beam: 43W / Off-Road: 61W
• Operating Voltage : 9-16V
• Materials : Cast Aluminum Heatsinks, UV-Coated Polycarbonate Lens
• Weather Rating : IP67 Weatherproof

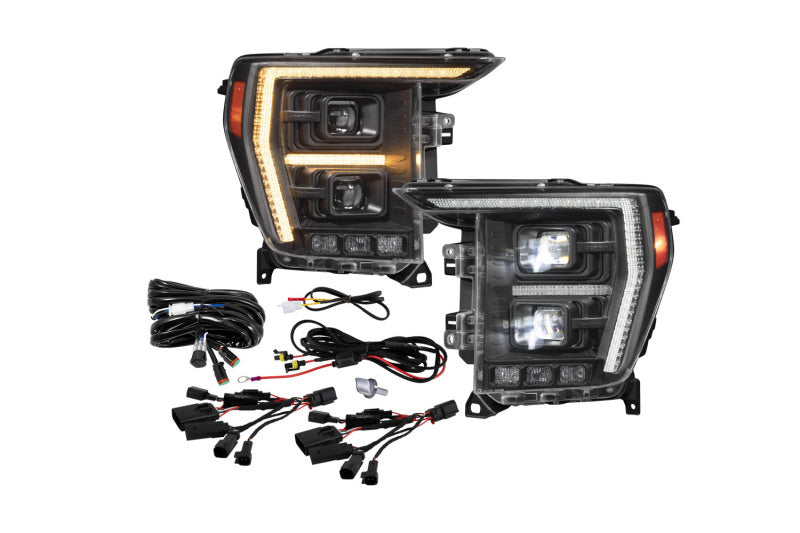

Includes

• Headlamps : Pair of Elite Max LED Headlights (Left and Right)
• Harnesses : Two (2) Plug-and-Play Main Harnesses and one (1) Heavy-Duty Off-Road Harness
• Plugs : Two (2) Molex Sealing Plugs
• Tool : One (1) Adjuster Tool for precision beam alignment

Notes

• Adaptive and Boost features are fully programmable from the driver’s seat using existing controls
• Trail Light off-road feature is not intended for on-road use
• Backed by an industry-leading 8-year limited warranty
