2022-2025 WRX C2R 4th Brake Light Kit (DIODD8067)

Description

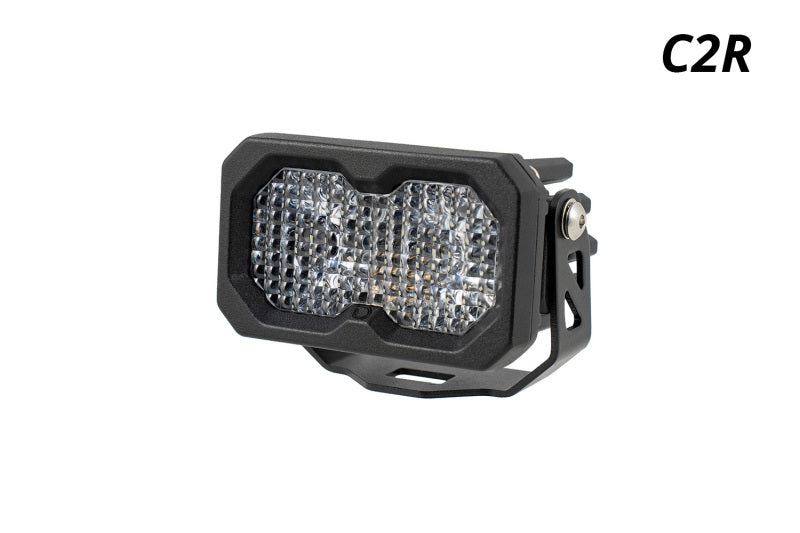

Looking to give the rear bumper on your Subaru WRX/STi a JDM appearance without sacrificing performance or quality? Look no further. Introducing our Stage Series C2R 4th Brake Light Kit! This kit replaces the blank trim piece found on many USDM Subaru rear bumpers with our high-performance C2R LED Pod, housed in a custom-molded bracket for a clean, OEM fit and finish. The C2R functions as a rear fog light, adding a 4th brake light with an optional F1-style flash pattern, a powerful reverse light, and an additional red running light.

Features

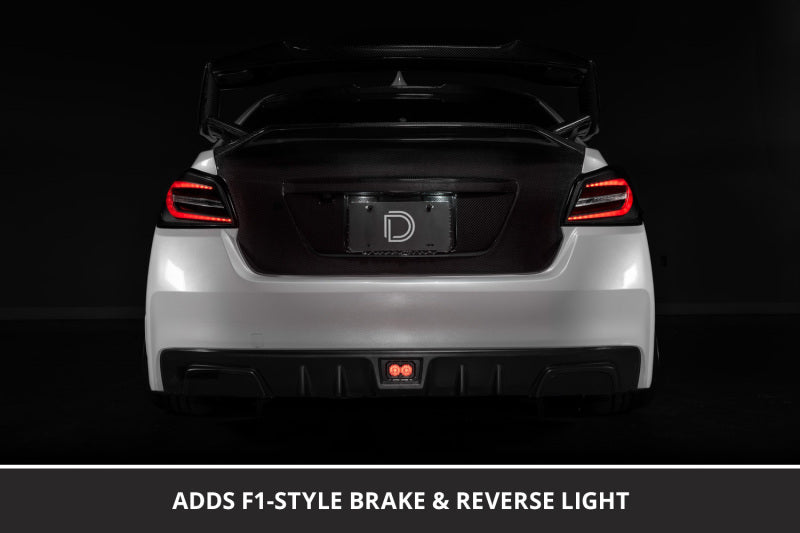

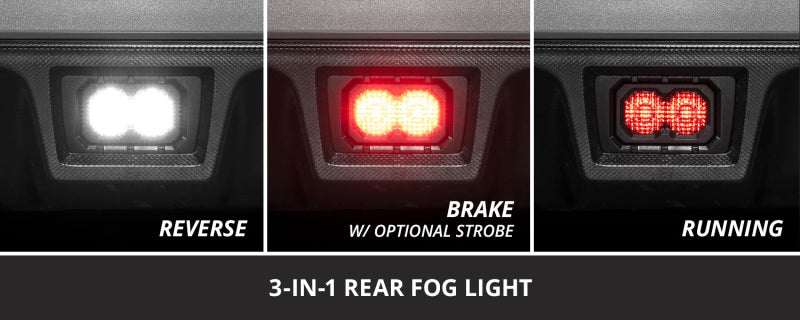

• Add a unique 4th brake light with an optional F1-style flash pattern, a powerful reverse light, and an additional red running light with our C2R LED pod!

• The C2R LED pod is several times brighter than stock reverse lights alone, providing significantly more light when backing up at night.
• Stand out on the road with a unique F1-style SafetyStrobe feature that integrates with your factory brake light signals.

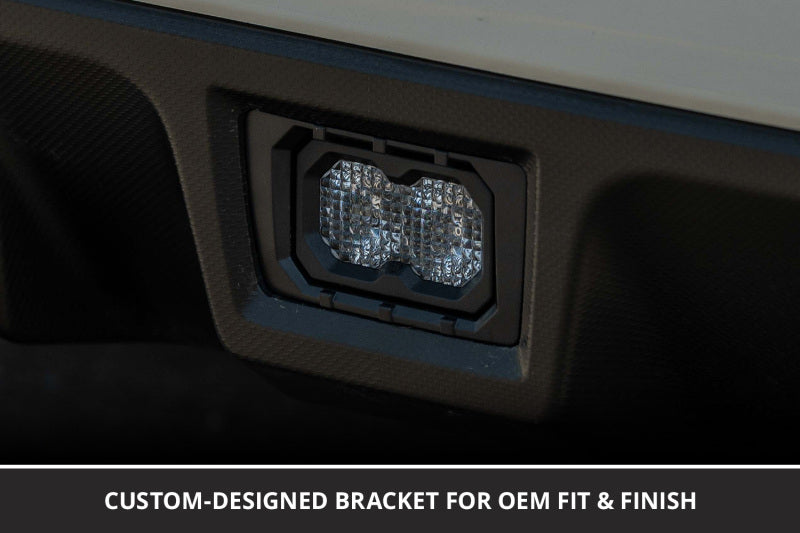

• The included custom-molded bracket allows the C2R to mount flush in the rear bumper in the same location as JDM-model rear fog lights for a clean, OEM-style appearance.
• Designed for simple, plug-and-play installation, the included wiring harness connects directly in-line with your tail light wiring. No splicing or modification needed!

Specs

• Raw Lumens: 2900 lm
• Intensity (cd): Reverse: 1800 cd, Brake: 250 cd, Parking: 12 cd
• Color Temperature (CCT): 6000K
• Beam Angle: Flood, 70°x45°
• Power (Watts): Reverse: 18.3W, Brake: 3.3W, Parking: 0.36W
• Operating Voltage: 9-30V
• Current (Amps @ 12.8V): Reverse: 1.43A, Brake: 0.25A, Parking: 0.03A
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Cree XP-L HI, Osram 1414 Pure
• Connectors: Deutsch DT Input
• Driver Features: Constant Current
• Materials: Copper PCB, Polycarbonate Lens, Aluminum Casting, Rubber Gasket
• Cooling: Passive Pin-Fin Heatsink
• Compliance Ratings: SAE J575 Durability Test
• Intrusion Ratings: IP69K Waterproof, High Pressure Rated

Includes

• One (1) Stage Series C2R LED Pod
• One (1) 4th Brake Light Harness
• One (1) 4 Pin DT Safety Strobe Module
• One (1) Mounting bracket and hardware
