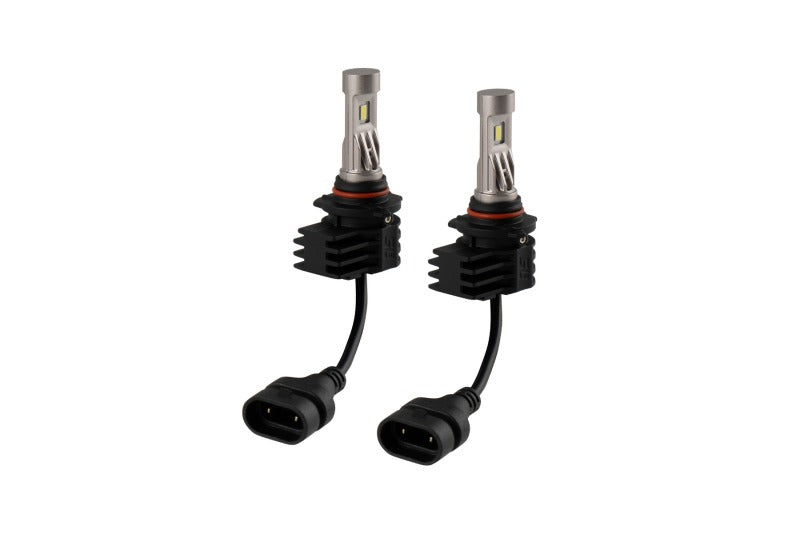

9005/9011/H10 White SL2 LED Bulbs (DIODD0463P)

Standard halogen 9005 bulbs often struggle to provide the range and clarity needed for high-speed driving or dark backroads, leaving drivers with a dim, yellowed field of vision. The 9005 SL2 LED Bulbs solve this performance issue by utilizing automotive-grade LEDs that precisely replicate the filament location of original bulbs, delivering a functional beam pattern with a powerful hotspot. This fanless, compact solution provides a significant boost in usable light while maintaining perfect optical focus, all within a fully-integrated design that fits effortlessly into tight factory housings.

Features

• Optimized Optical Focus: Engineered to match the light source position of factory 9005 halogen bulbs, preserving the correct hotspot and beam pattern without adding glare for other drivers.

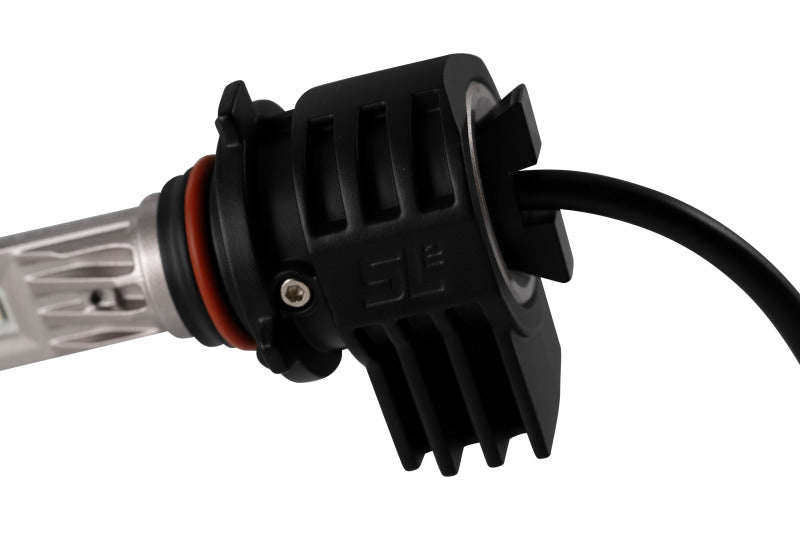

• Reliable Fanless Cooling: Built with a copper-core circuit board and a thermally-optimized die-cast A360 aluminum housing to manage heat passively, ensuring a silent and long-lasting performance.
• Fully Integrated Design: Features a built-in internal driver within the compact bulb housing, allowing for a true plug-and-play installation that fits easily inside tight headlamp or fog light assemblies.
• Multi-Die Automotive LEDs: Equipped with high-performance automotive-grade emitters that provide 1400 lumens of consistent, reliable light for improved nighttime safety.
• Tested for Extremes: Designed and engineered in the USA, these bulbs undergo rigorous environmental testing from -40C to 85C to ensure reliable operation in any weather condition.

Specs

• Color Temp: 6000K (Cool White)
• Measured Lumens: 1400 per bulb
• Power (watts): 14
• Operating Voltage: 9-30V
• Current (amps @ 12.8V): 1.1
• Operating Temperature: -40C to 85C
• Materials: Copper PCB, Die Cast A360 Aluminum
• Cooling: Passive Heatsink

Includes

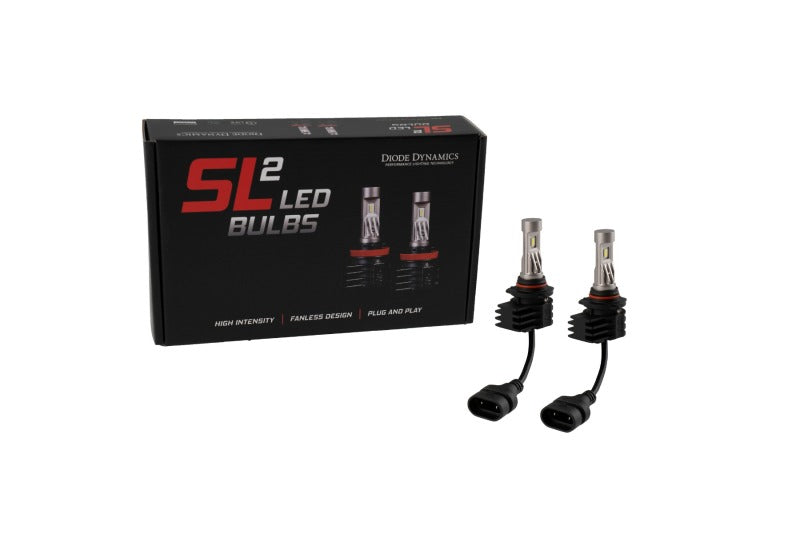

• Two (2) 9005 SL2 LED Bulbs

Notes

• Compliance: Not DOT compliant for use in headlamps on public roads in the USA; intended for fog light or off-road applications only.
• Warranty: Includes the Diode Dynamics industry-leading limited lifetime warranty.
• Fitment: Direct plug-and-play replacement for factory 9005, 9011, and H10 bulb sizes; operates at full brightness for DRL functions.
