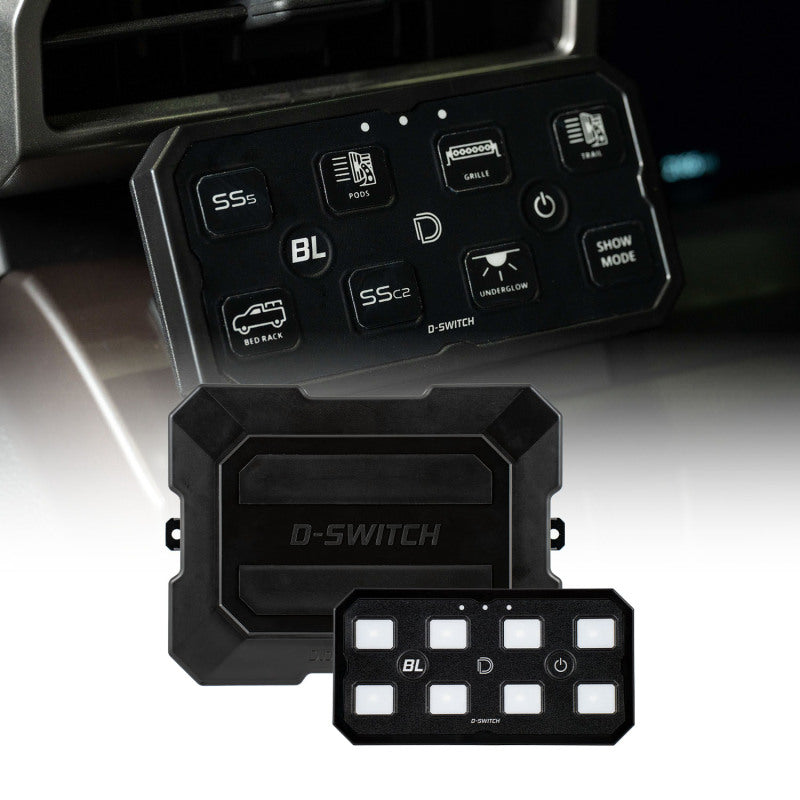

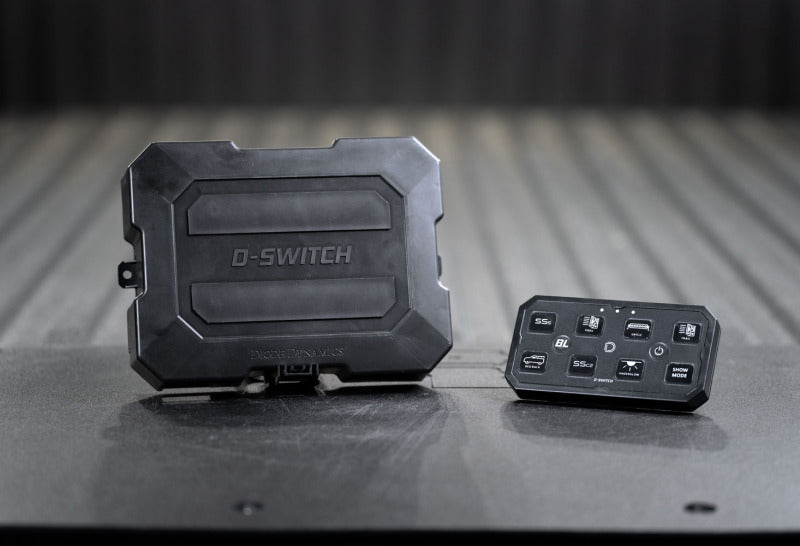

Universal D-Switch 8-Channel Button Controller Kit (DIODD8373)

Take full control of your vehicle’s lighting and accessories with the Diode Dynamics D-Switch 8-Channel Switch Panel! This premium, all-in-one power distribution system allows you to manage up to eight separate circuits with ease. The compact, sleek dash-mounted controller features programmable buttons with customizable RGB backlighting to match your interior, while the heavy-duty under-hood power module simplifies wiring by eliminating the need for multiple relays and fuses. Whether you are running Stage Series light bars, fog lights, or winches, the D-Switch provides a clean, professional, and reliable solution for any 12V application.

Features

• Control up to eight (8) separate 12V accessories from a single dash-mounted panel

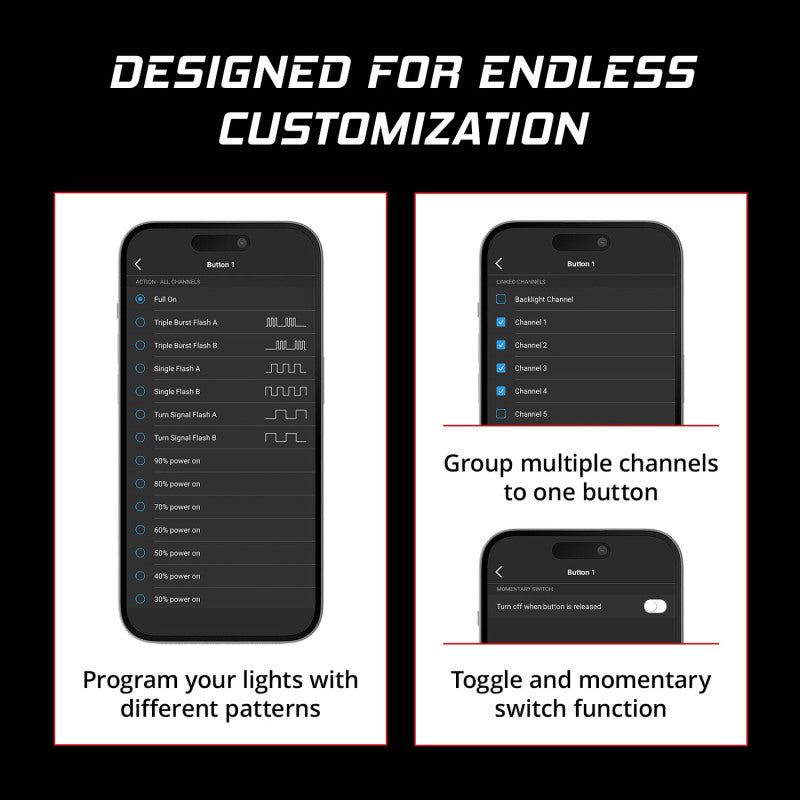

• Programmable button functions: On/Off, Momentary, Pulsing, and Flash modes
• Customizable RGB backlighting with adjustable brightness to match your vehicle's dash

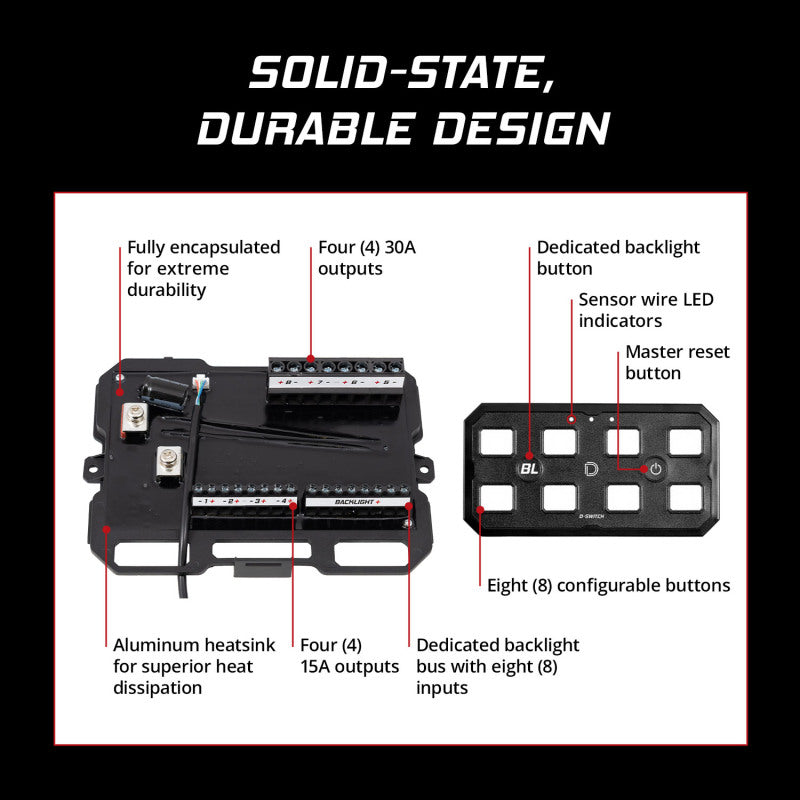

• Heavy-duty power module supports a total of 100A, with individual circuits rated up to 30A
• Simplified installation with a single communication cable between the panel and the power module
• Built-in circuit protection and thermal shutdown for maximum safety and reliability
• Includes 50 universal icon stickers to clearly label your specific accessory switches

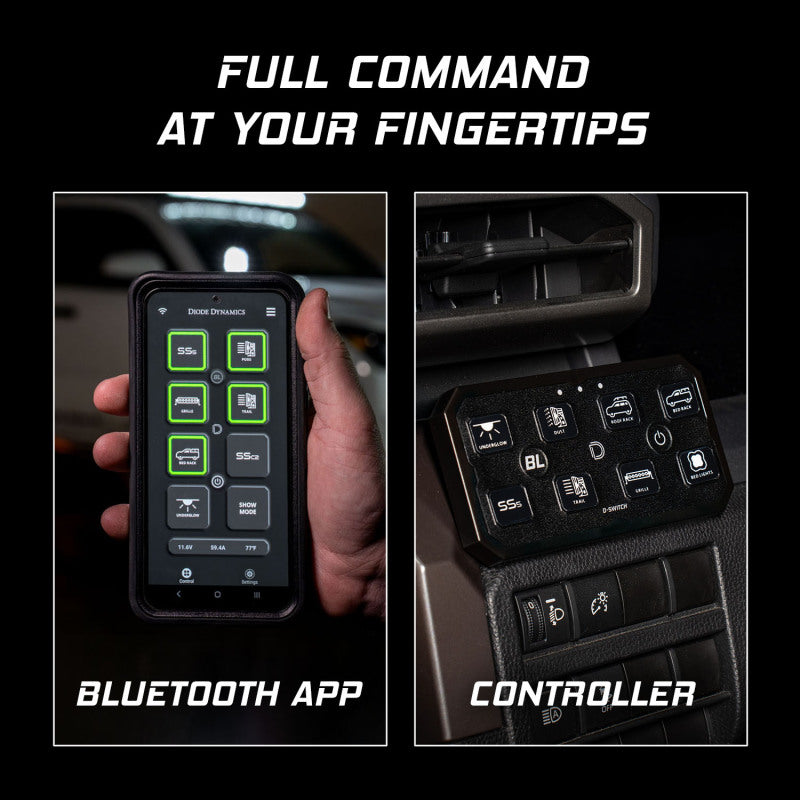

• Bluetooth connectivity for advanced configuration and control via the Diode Dynamics app

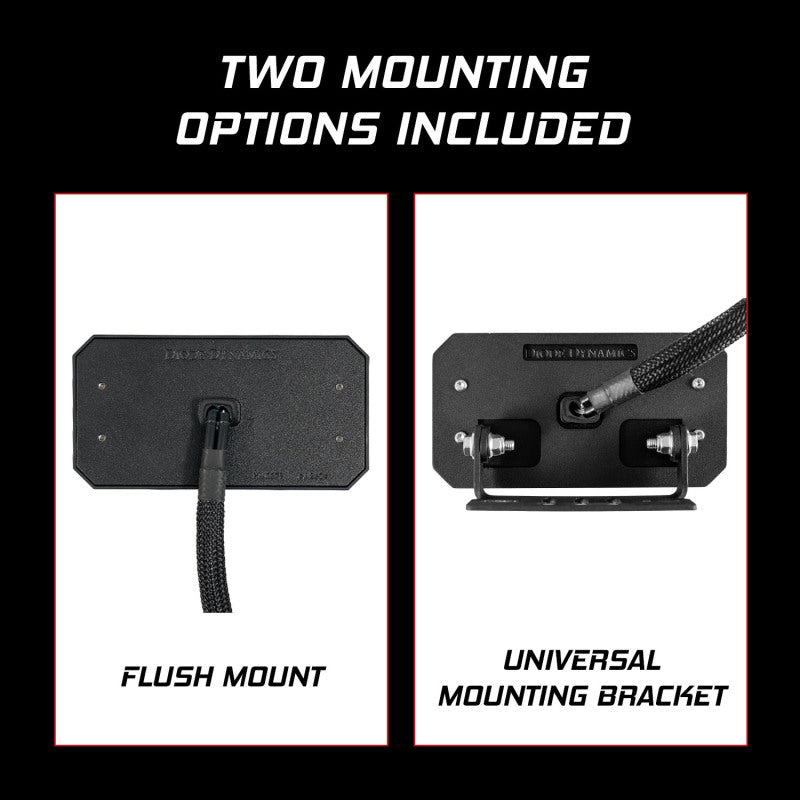

• Compact, versatile mounting options for the switch panel, including a swivel mount
• Designed and engineered for high-performance off-road and automotive use

Includes

• One (1) 8-Channel Switch Panel Controller
• One (1) Power Distribution Module
• One (1) Communication Cable
• One (1) Sheet of 50 Legend/Icon Stickers
• Mounting Brackets and Hardware
• Power and Ground Battery Cables

Notes

• The D-Switch is a universal product and can be installed on any 12V vehicle, including trucks, Jeeps, SUVs, and UTVs.
• Advanced programming, such as grouping circuits or setting master switches, is easily handled through the integrated Bluetooth interface.
• Ensure the total current draw of all connected accessories does not exceed the 100A system limit.
