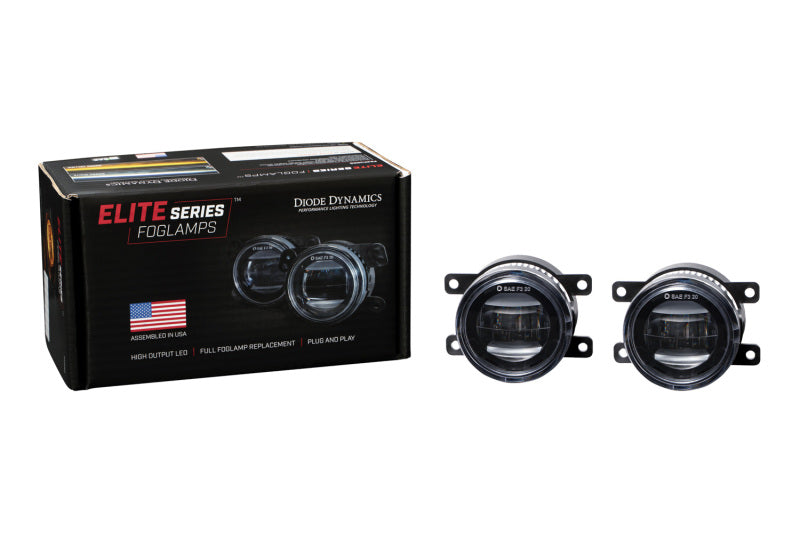

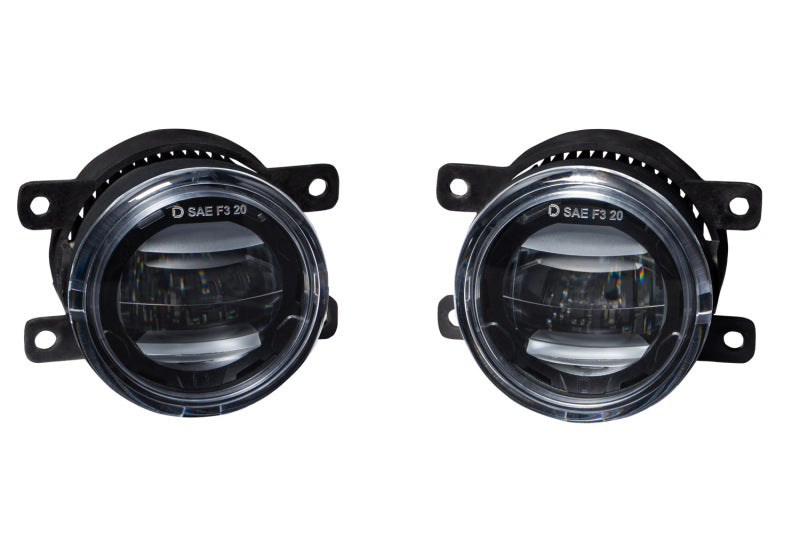

Universal Elite Series Type A White Fog Lamps (DIODD5128P)

If you are ready to upgrade your factory lighting to a professional-grade standard, the Elite Series Type A Fog Lamps in Cool White are the ultimate choice for your vehicle. Specifically designed for many Ford, Honda, Acura, and Nissan applications, these lamps are a ground-up performance redesign, not just another LED bulb replacement. They feature a custom-engineered, patent-pending toroidal lens that produces an industry-leading 80-degree spread of intense light, wider than any other aftermarket fog lamp available. The 6000K cool white output provides a crisp, modern look that perfectly matches factory LED headlights and DRLs.

Features

• Superior Light Spread: Custom toroidal optics deliver a massive 80-degree spread of light, providing excellent peripheral vision and a sharp, premium color flicker at the cutoff.
• Crisp Cool White Output: The 6000K color temperature delivers a modern, high-end appearance while providing high-intensity illumination for the road ahead.
• Integrated Amber Backlight: Features a secondary amber glow that fully illuminates the main lens, serving as a premium styling accent that coordinates with factory sidemarkers.

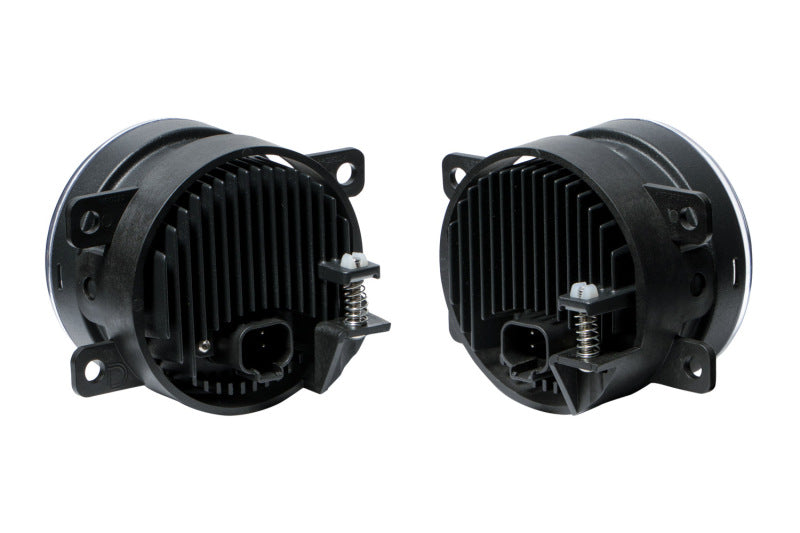

• Plug-and-Play Installation: Designed for a direct bolt-on fit in factory mounting locations, including all necessary wire adapters to connect directly to your OEM bulb sockets.


Specs

• Traffic Pattern : SAE F3 Foglamp (80° Spread)
• Color Temperature : 6000K (Cool White)
• Measured Output : 1,650 Lumens (Main Beam)
• Peak Beam Intensity : 8,700 Candela
• Wattage : 15W (Main Beam), 0.3W (Backlight)
• Current Draw : 1.2A @ 13.2V
• Operating Voltage : 9-16V
• Materials : Copper PCB, UV-Coated Polycarbonate Lens, Precision Aluminum Casting
• Weather Rating : IP68 Waterproof

Includes

• Fog Lamps : Two (2) Elite Series Type A Fog Lamps
• Adapters : Two (2) H11/H8/H16 DT backlight tap wires and T-taps
• Guide : One (1) Installation and Mounting Guide

Notes

• Compatible with a wide range of Ford, Honda, Acura, and Nissan vehicles requiring Type A mounting
• Backlight automatically deactivates when the main beam is turned on
• Backed by an industry-leading 8-year limited warranty
