Universal Elite Series Type M Yellow Fog Lamps (DIODD5131P)

If you are ready to upgrade your factory lighting to a professional-grade standard, the Elite Series Type M Fog Lamps in Selective Yellow are the ultimate choice for your Jeep Wrangler or Gladiator. Specifically designed for models equipped with the factory plastic bumper, these lamps are a ground-up performance redesign, not just another LED bulb replacement. They feature a custom-engineered, patent-pending toroidal lens that produces an industry-leading 80-degree spread of intense light, wider than any other aftermarket fog lamp available. The 3000K yellow output is specifically optimized for high contrast and reduced glare in heavy fog, rain, or snow.

Features

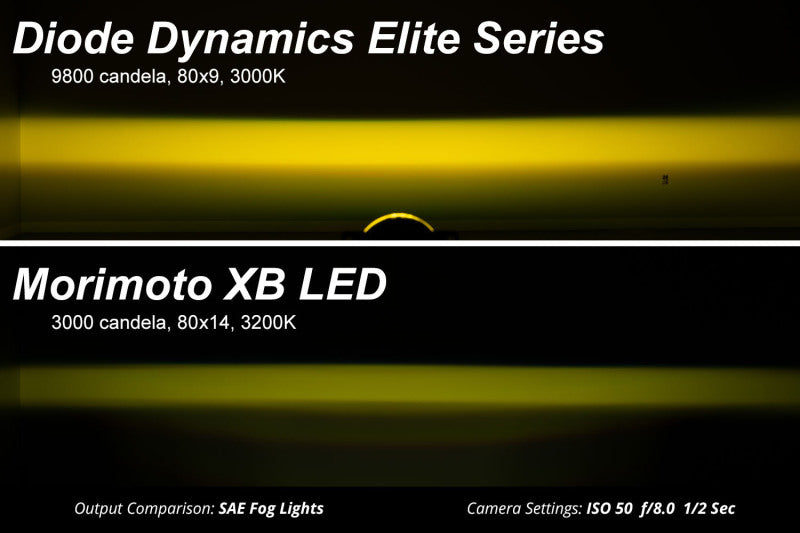

• Superior Light Spread: Custom toroidal optics deliver a massive 80-degree spread of light, providing excellent peripheral vision and a sharp, premium color flicker at the cutoff.
• Selective Yellow Performance: The 3000K color temperature is engineered to cut through airborne particles like dust and fog while providing high contrast for safer nighttime driving.

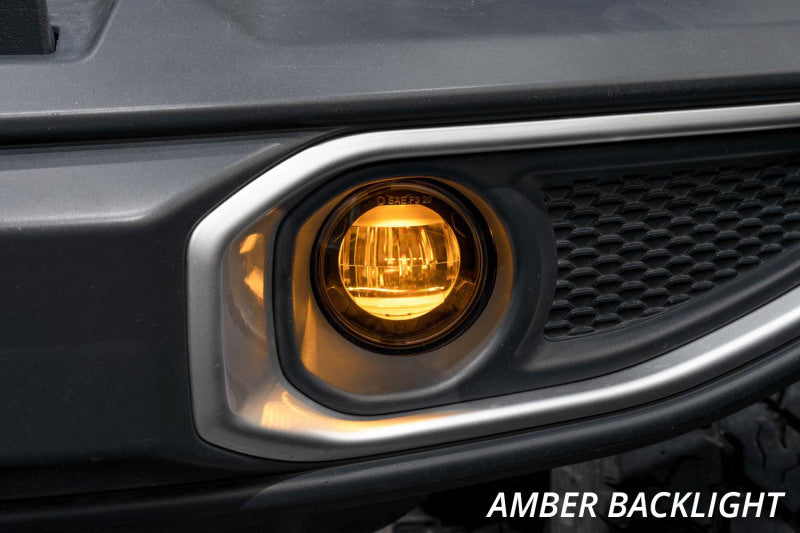

• Integrated Amber Backlight: Features a secondary amber glow that fully illuminates the main lens, serving as a premium styling accent that coordinates with factory side-markers.
• Plug-and-Play Installation: Designed for a direct bolt-on fit in factory plastic bumpers, including all necessary wire adapters to connect directly to your OEM bulb sockets.
• American-Assembled Quality: 100% assembled in St. Louis, Missouri, using UV-coated lenses and precision aluminum castings for maximum durability and weather resistance.

Specs

• Traffic Pattern : SAE F3 Foglamp (80° Spread)
• Color Temperature : 3000K (Selective Yellow)
• Measured Output : 1,650 Lumens (Main Beam)
• Peak Beam Intensity : 8,700 Candela
• Wattage : 15W (Main Beam), 0.3W (Backlight)
• Current Draw : 1.2A @ 13.2V
• Operating Voltage : 9-16V
• Materials : Copper PCB, UV-Coated Polycarbonate Lens, Precision Aluminum Casting
• Weather Rating : IP68 Waterproof

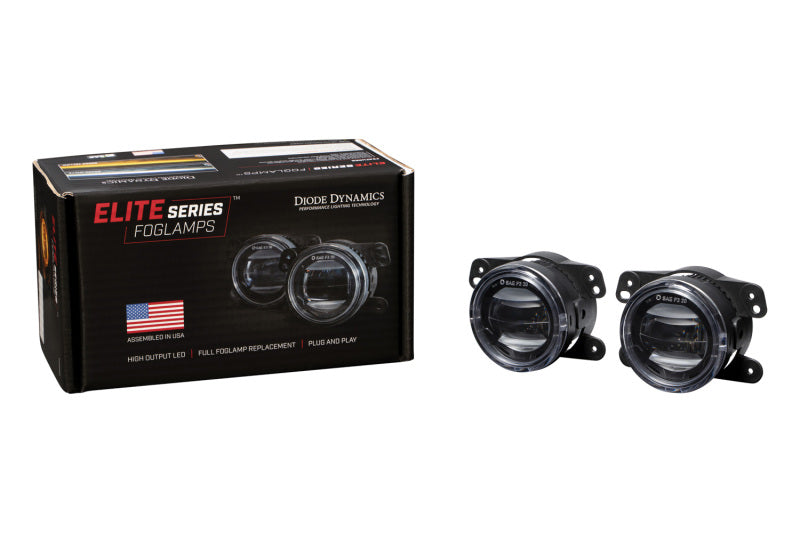

Includes

• Fog Lamps : Two (2) Elite Series Type M Fog Lamps
• Brackets : Two (2) Elite Series Type M brackets for factory plastic bumpers
• Wiring : Two (2) 9006/5202 DT backlight tap wires and T-taps


Notes

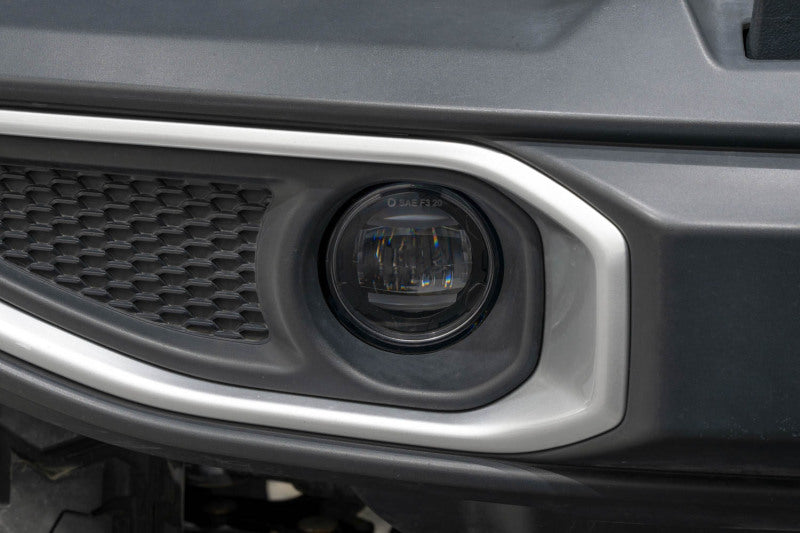

• Specifically designed for Jeep Wrangler JL and Gladiator JT models with factory plastic bumpers
• Backlight automatically deactivates when the main beam is turned on
• Backed by an industry-leading 8-year limited warranty
