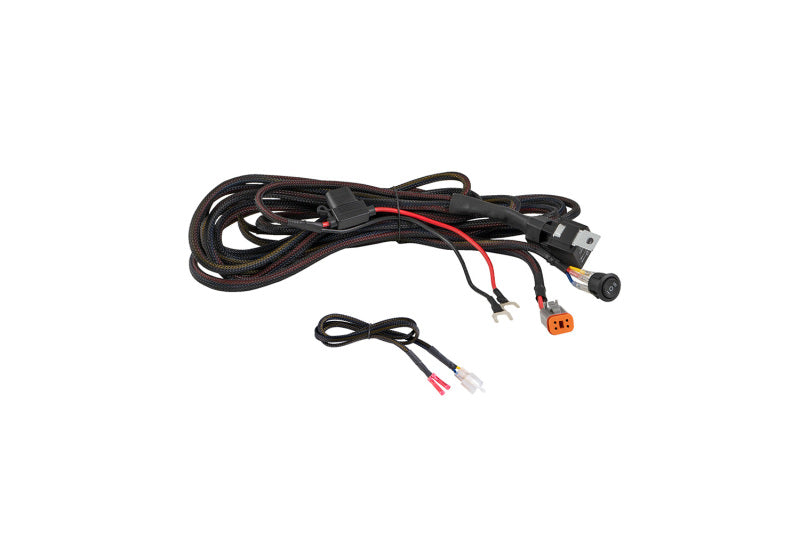

Universal Heavy Duty Output 4 Pin Wiring Harness (DIODD4104)

Inconsistent power delivery and flickering are common frustrations when installing high-power LED light bars with undersized, generic wiring kits. This Heavy Duty Single Output 4-Pin Wiring Harness solves these electrical bottlenecks by providing a high-current path directly from the battery to your lighting accessory. Featuring heavy-gauge wire and a robust 40A relay, this harness ensures your Stage Series or Elite Series lights receive full voltage for maximum brightness while protecting your vehicle sensitive factory electronics from overload.

Features

• High Current Reliability: Built with a 40A automotive grade relay and 12AWG primary wiring to handle the high-wattage demands of large LED light bars without overheating.
• Backlight Support: The 4-pin output connector is specifically pinned to power both the main beam and the integrated backlight feature found on Stage Series and Elite Series pods.
• Toggle Switch Integration: Includes a custom 3-pin rocker switch with an amber LED indicator, allowing for independent control of your auxiliary lighting from the cabin.
• Weatherproof Protection: Features a sealed 30A ATM-style fuse holder and weather-tight connectors to prevent corrosion and short circuits in harsh off-road environments.
• Plug and Play Connectivity: Designed with a standardized 4-pin DT-style output, this harness eliminates the need for cutting or soldering during your lighting installation.

Specs

• Traffic Pattern: N/A (Wiring Harness)
• Color Temp: N/A
• Measured Output: N/A
• Peak Intensity: N/A
• Wattage: Rated for up to 300 Watts
• Operating Voltage: 12V DC
• Materials: 12AWG Copper Wire, Nylon Braided Sleeving, 40A Relay
• Weather Rating: IP65 Rated Relay and Fuse Holder

Includes

• One (1) Heavy Duty Single Output 4-Pin Wiring Harness
• One (1) 3-Pin LED Rocker Switch
• One (1) 30A ATM-Style Fuse

Notes

• Compliance: Designed for 12V automotive systems only; not for use with 24V commercial applications.
• Warranty: Includes the Diode Dynamics industry leading 8 year limited warranty.
• Fitment: Does not fit 2-pin or 3-pin DT-style connectors without the use of an adapter or rewiring.
