Universal Light Duty Dual Output 3-Way 4-Pin Wiring Harness (DIODD4092)

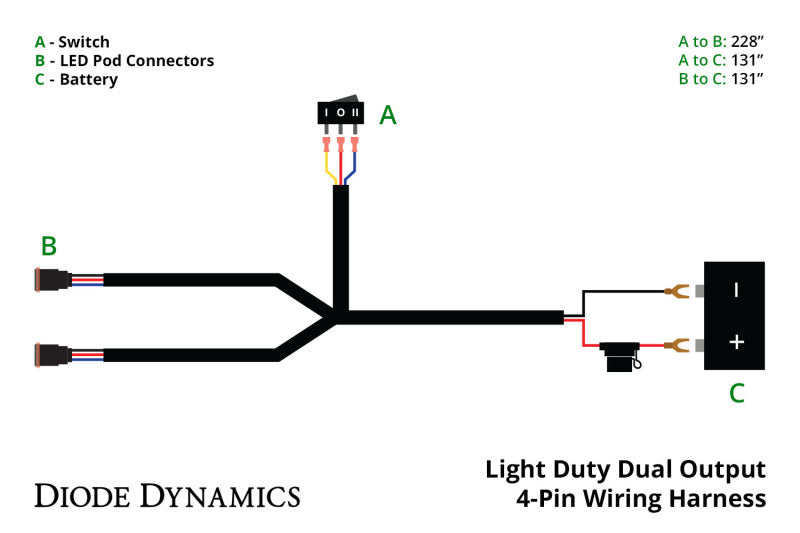

Wiring multiple light pods with integrated backlights often results in a cluttered engine bay and unreliable connections when using generic splitters. This Light Duty Dual Output 4-Pin Wiring Harness solves this by providing a clean, all-in-one solution designed specifically to power a pair of Stage Series or Elite Series pods. By utilizing a 4-pin configuration, this harness allows you to control both the main high-power beam and the low-power accent backlight through a single, organized loom that protects your factory electrical system.

Features

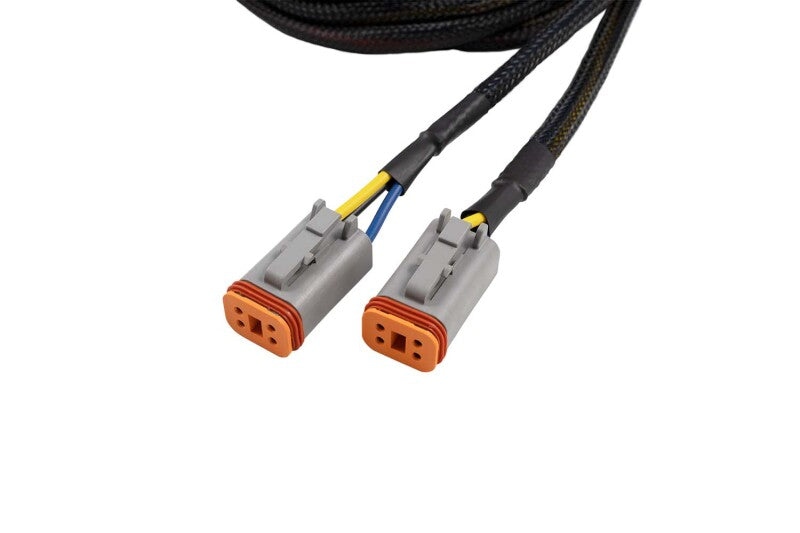

• Dual Output Design: This harness features two distinct 4-pin DT-style connectors, allowing you to power and control a pair of LED pods simultaneously from a single switch.
• Integrated Backlight Support: Specifically pinned to activate the amber or white backlight feature found on Diode Dynamics pods without requiring additional custom wiring.
• Efficient Power Management: Built with a 30A automotive relay and inline fuse, ensuring safe and consistent power delivery to your lights while guarding against short circuits.
• Clean Installation: The harness is wrapped in a durable black nylon sleeve for a professional look under the hood that resists heat, abrasion, and chemical exposure.

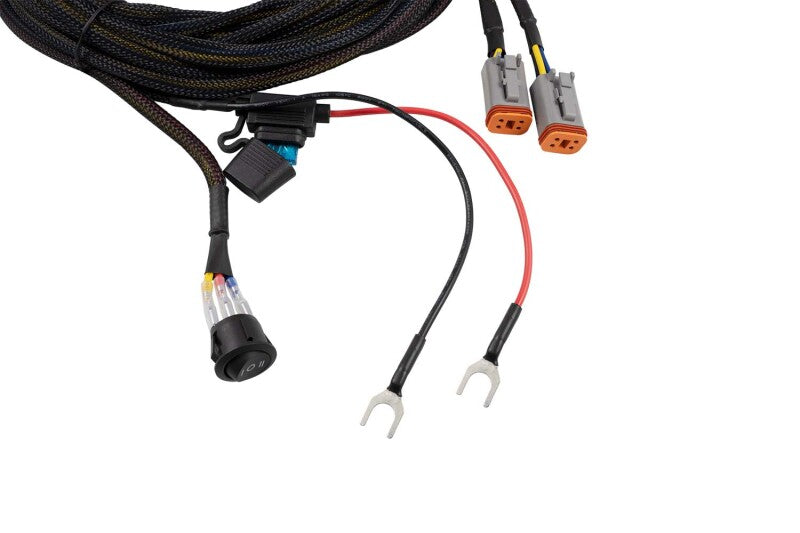

• Simple Toggle Operation: Includes a pre-wired 3-pin rocker switch with an LED indicator, providing a tactile and intuitive way to manage your auxiliary lighting from the driver seat.

Specs

• Traffic Pattern: N/A (Wiring Harness)
• Color Temp: N/A
• Measured Output: N/A
• Peak Intensity: N/A
• Wattage: Rated for up to 120 Watts total
• Operating Voltage: 12V DC
• Materials: 16AWG Copper Wire, Nylon Sleeving, 30A Relay
• Weather Rating: IP65 Rated Relay and Fuse Holder

Includes

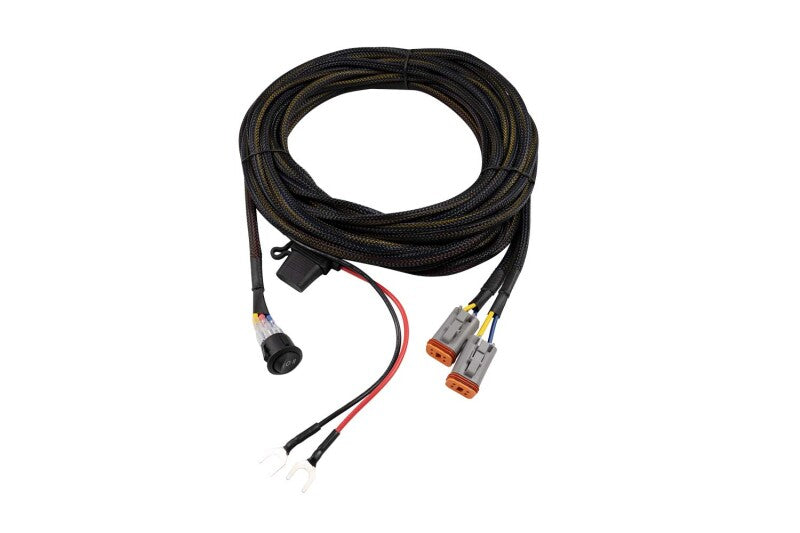

• One (1) Light Duty Dual Output 4-Pin Wiring Harness
• One (1) 3-Pin LED Rocker Switch
• One (1) 20A ATM-Style Fuse

Notes

• Compliance: Intended for 12V DC automotive applications only.
• Warranty: Includes the Diode Dynamics industry leading 8 year limited warranty.
