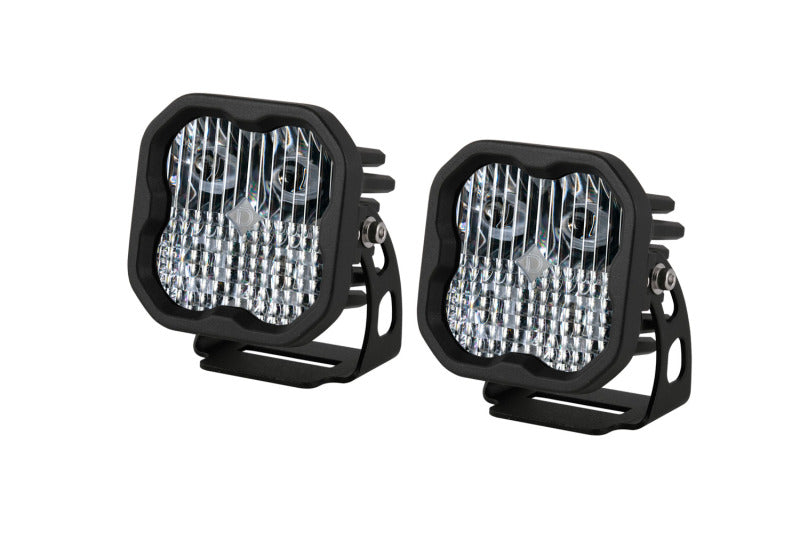

Universal SS3 ABL White Combo Standard Pro LED Pods (DIODD6886P)

When your adventures take you off the beaten path and into the unknown, the Stage Series SS3 Pro White Combo Pods provide the versatile lighting coverage you need to stay ahead of the terrain. This specialized combo pattern is a master of multitasking, blending the long-range punch of a driving light with the wide peripheral spread of a flood optic. The result is a massive rectangular field of vision that illuminates the road far into the distance while simultaneously highlighting obstacles on the shoulders. By utilizing high-power automotive LEDs and custom-engineered Total Internal Reflection technology, these pods achieve an efficiency level that traditional reflectors simply cannot match. Finished with a brilliant amber backlight, these pods do more than just light the way; they give your vehicle an aggressive, high-end aesthetic that stands out even when the sun is up.

Features

• Hybrid Combo Pattern: Combines a driving optic and a flood optic into a single unit, providing a balanced 65x25 degree beam that handles both distance and width.
• Advanced TIR Optics: Total Internal Reflection technology captures all light from the emitters and directs it forward, eliminating the internal loss and glare common in basic lens designs.
• Pro Level Intensity: Engineered for those who need maximum light, the Pro variant delivers double the total output of the Sport model for serious off-road performance.

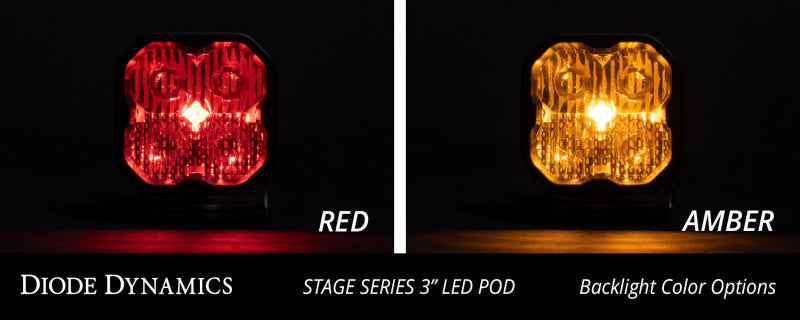

• Amber Backlight Accent: Features a distinctive secondary amber glow that fully illuminates the internal optic, functioning as a stylish accent or daytime marker.
• Proven Durability: Built with a powdercoated aluminum housing and a heavy-duty polycarbonate lens to withstand vibration, moisture, and extreme temperature swings.

Specs

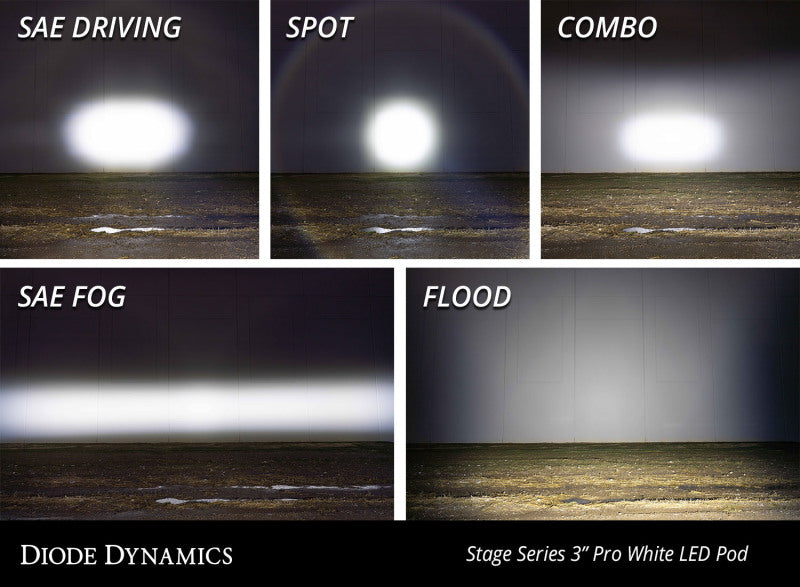

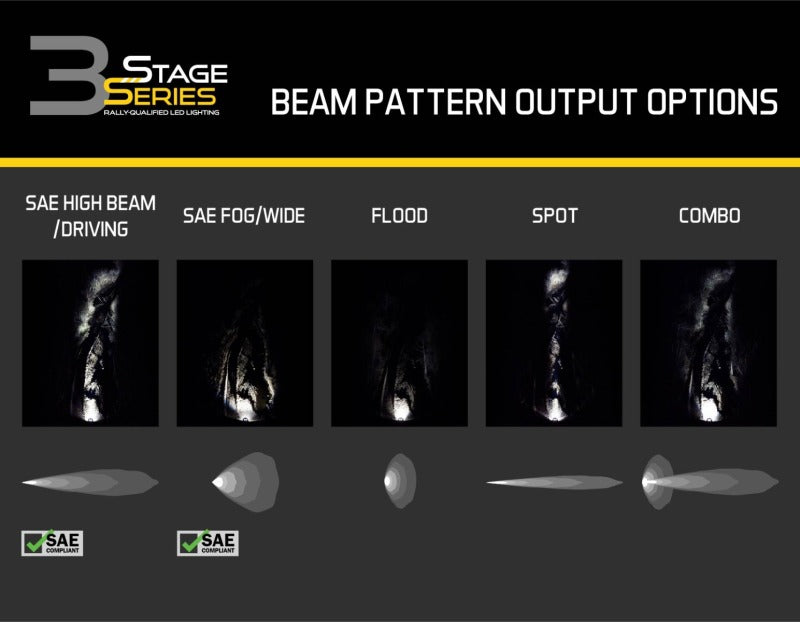

• Traffic Pattern : Combo (Driving and Flood Hybrid)
• Beam Spread : 65 x 25 Degrees
• Color Temperature : 6000K (Cool White)
• Measured Output : 2,700 Lumens
• Peak Beam Intensity : 33,406 Candela
• Wattage : 36W (Main Beam), 0.4W (Backlight)
• Current Draw : 2.7A @ 12.8V
• Operating Voltage : 9-30V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

Includes

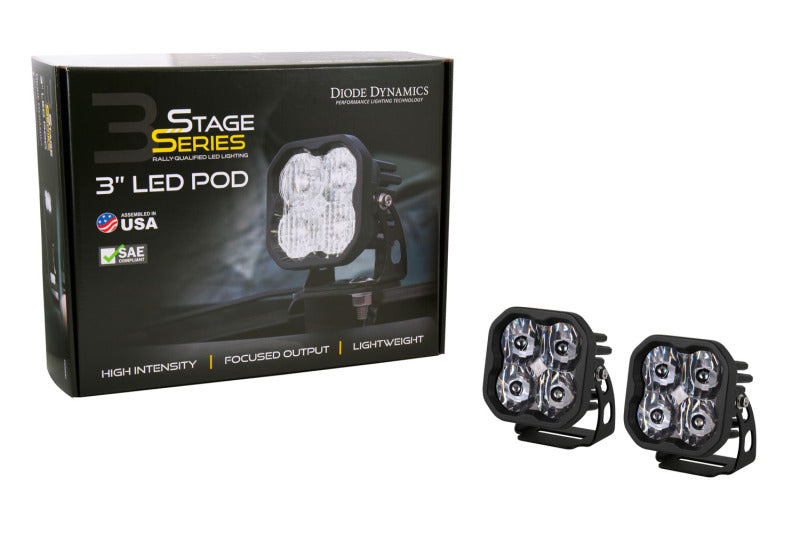

• LED Pods : One Pair of SS3 3 inch Pro LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Combo beam pattern is designed for off-road or auxiliary use only
• Amber backlight requires a separate 12V power source or a compatible wiring harness
