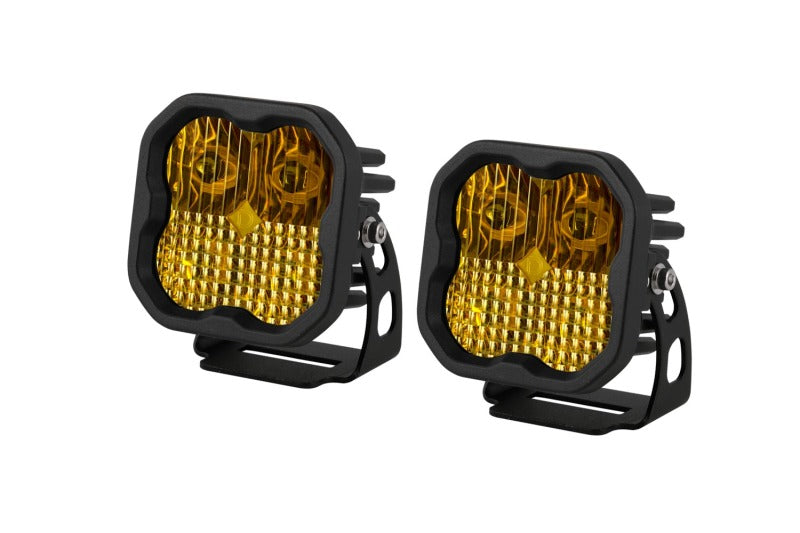

Universal SS3 ABL Yellow Combo Standard Pro LED Pods Pair (DIODD6893P)

When you need a lighting solution that covers every angle, the Stage Series SS3 Pro Yellow Combo Beam Pods deliver the ultimate dual-threat performance. This isn't just a light; it is a precision-tuned optical powerhouse designed to dominate both the trail and the open road. By merging the long-range punch of a driving light with the wide, uniform spread of a flood optic, the combo pattern provides a massive 65x25 degree rectangular field of vision. The secret lies in the custom-molded Total Internal Reflection technology, which eliminates the efficiency loss found in traditional reflectors. Instead of scattering light, these pods capture every bit of output and project it exactly where you need it most. The selective yellow tint adds another layer of tactical advantage, providing high contrast in dust, rain, or snow while reducing eye fatigue during long hauls through the dark.

Features

• Hybrid Combo Optics: Features a flood optic on one side and a driving optic on the other, creating a versatile beam that handles both distance and peripheral visibility simultaneously.
• Advanced TIR Technology: Custom-engineered Total Internal Reflection optics serve as both the internal reflector and the main lens, providing industry-leading intensity and efficiency.
• Pro Level Intensity: Utilizing high-output automotive LED emitters, the Pro variant produces double the total power of standard pods for serious off-road illumination.

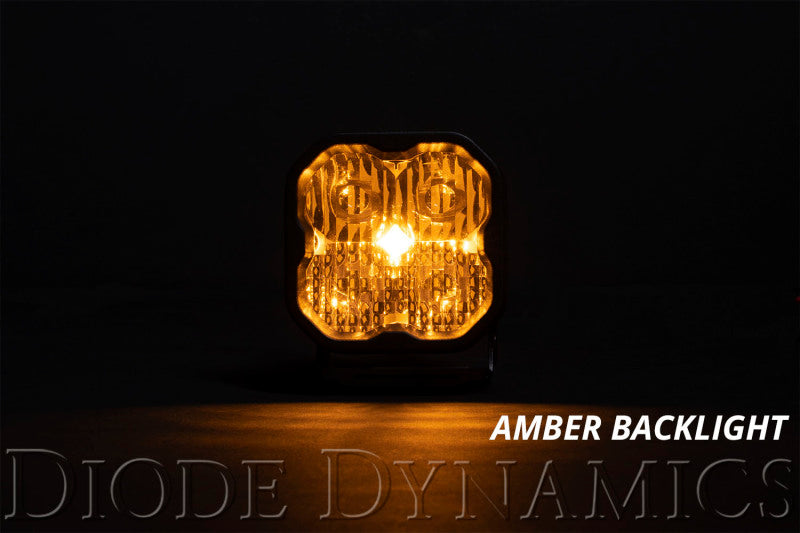

• Integrated Amber Backlight: Provides a distinctive secondary accent glow that fully illuminates the TIR optic, giving your vehicle a modern and aggressive look even when the main beam is off.
• Rugged American Construction: Engineered, tested, and assembled in the USA with a powdercoated aluminum housing and high-impact polycarbonate lens for maximum durability.

Specs

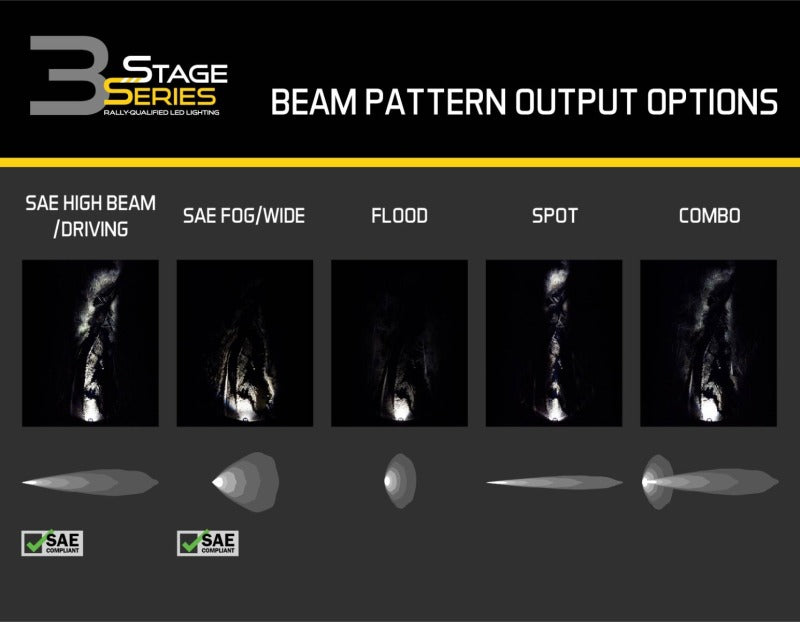

• Traffic Pattern : Combo (Driving and Flood Hybrid)
• Beam Spread : 65 x 25 Degrees
• Color Temperature : 3000K (Selective Yellow)
• Measured Output : 2,700 Lumens
• Peak Beam Intensity : 33,406 Candela
• Wattage : 36W
• Current Draw : 2.7A @ 13.2V
• Operating Voltage : 9-16V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

Includes

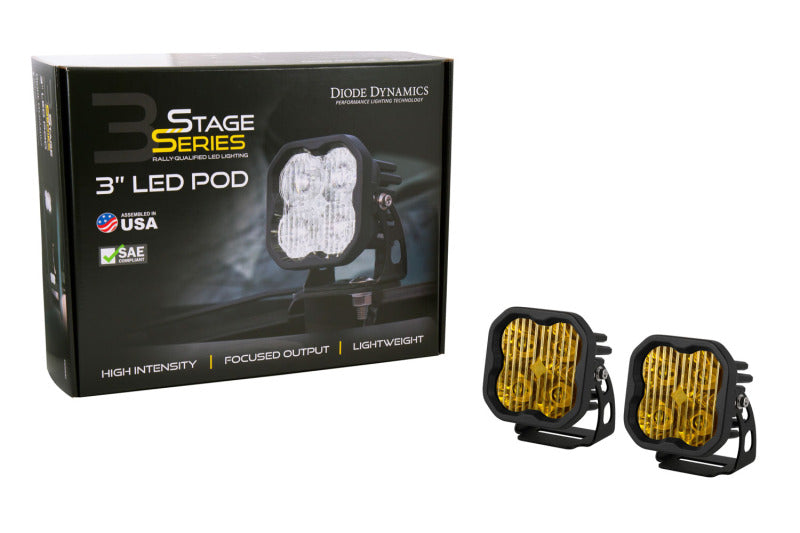

• LED Pods : One Pair of SS3 3 inch Pro LED Pods
• Pigtails : Two Deutsch-style wire pigtails with bare leads
• Brackets : Two Universal mounting brackets and stainless steel hardware

Notes

• Combo beam pattern is intended for off-road or auxiliary use
• Backlight functionality requires a separate 12V power source or dedicated harness
