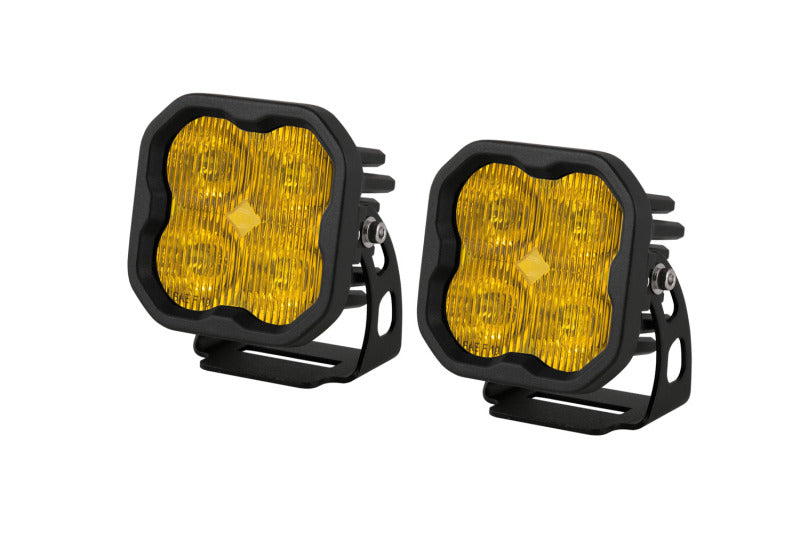

Universal SS3 ABL Yellow SAE Pro LED SAE Fog light Pods (DIODD6890P)

When visibility is non-negotiable and the weather is at its worst, the Stage Series SS3 Pro Yellow SAE Fog Light Pods are your greatest asset on the road. Engineered for maximum output and precision, these pods are designed to slice through fog, rain, and snow with a rich 3000K selective yellow light that significantly improves contrast. Unlike generic pods that scatter light and create glare, the SS3 Pro utilizes custom-engineered Total Internal Reflection optics. This advanced technology captures every bit of light from the high-intensity LEDs and focuses it into an extremely wide 80-degree beam.

Features

• Precision TIR Optics: Custom-molded Total Internal Reflection technology serves as both the optic and the main lens, providing significantly higher efficiency than traditional reflectors.
• Selective Yellow Performance: The 3000K yellow output is specifically designed to provide high contrast in poor weather conditions while reducing eye strain and glare.
• Street Legal Compliance: Tested to meet SAE J583 standards for use as a fog lamp, ensuring a highly functional beam pattern that is safe for on-road use.
• Pro Level Output: The Pro variant delivers double the total power of the Sport model, using automotive-grade emitters for maximum intensity and ground coverage.

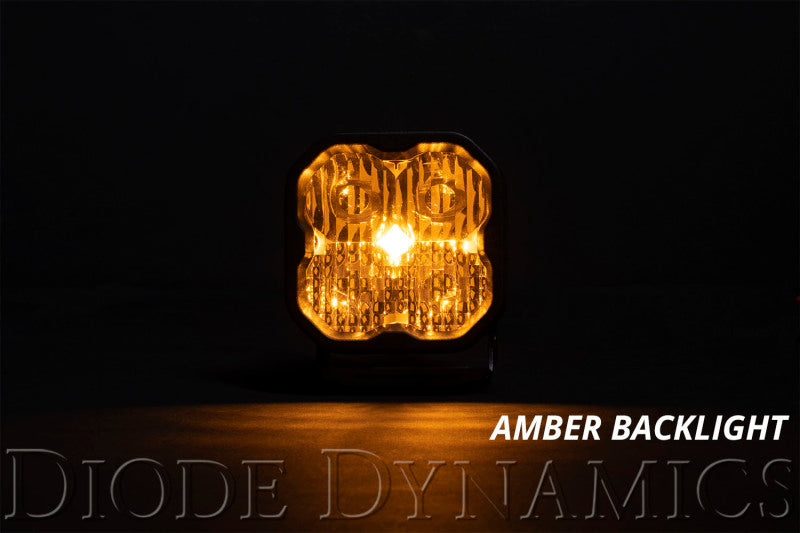

• Integrated Amber Backlight: Features a distinctive secondary accent glow that fully illuminates the optic, adding a modern and aggressive look to your vehicle's front end.

Specs

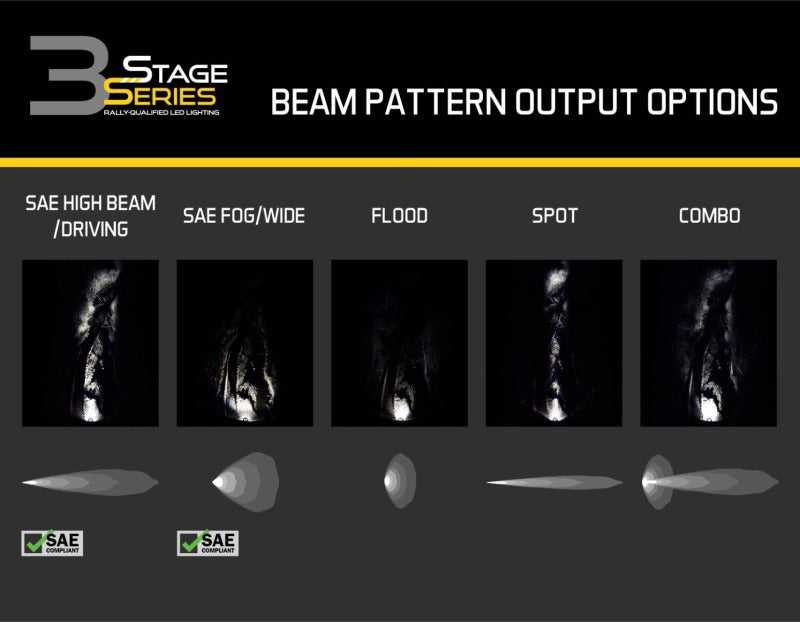

• Traffic Pattern : SAE Fog (80 Degree Spread)
• Color Temperature : 3000K (Selective Yellow)
• Measured Output : 2,700 Lumens

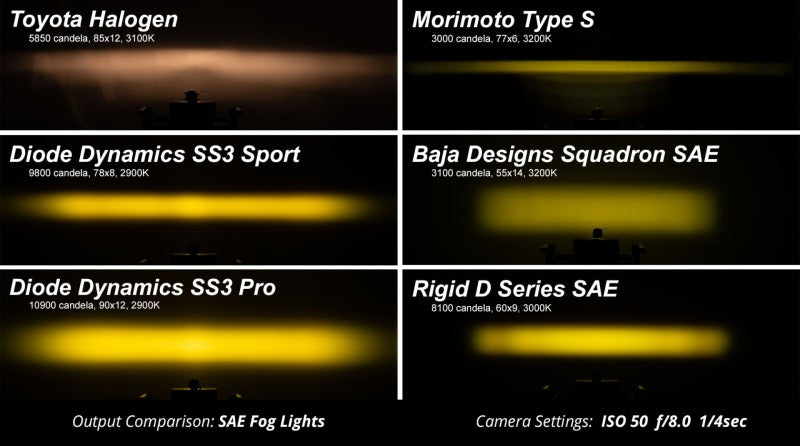

• Peak Beam Intensity : 10,900 Candela
• Wattage : 36W (Main Beam), 0.4W (Backlight)
• Current Draw : 2.7A @ 12.8V
• Operating Voltage : 9-30V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

Includes

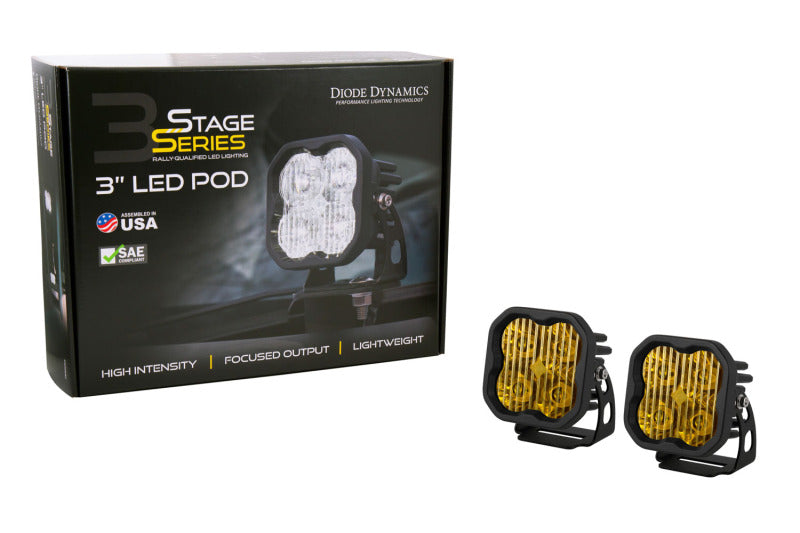

• LED Pods : One Pair of SS3 3 inch Pro LED Pods
• Hardware : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Maintains SAE J583 compliance when aimed correctly according to local regulations
• Backlight functionality requires a separate 12V power source tap
