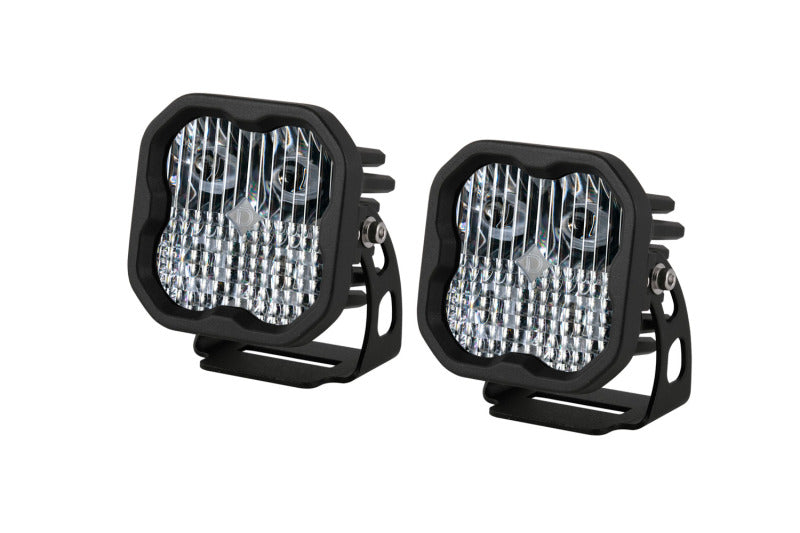

Universal SS3 Sport ABL White Combo Standard LED Pods (DIODD6865P)

When you need a lighting setup that can handle high-speed runs and tight trails with equal precision, the Stage Series SS3 Sport White Combo Pods are the ultimate solution. This isn't just a standard light; it is a meticulously engineered optical system that blends two distinct beam patterns into one powerful unit. By combining a driving optic for long-range distance and a flood optic for wide-angle peripheral coverage, the combo pattern provides a massive 65x25 degree rectangular field of vision. This ensures you can see far down the road while still catching obstacles on the shoulders before they become a problem. Utilizing custom-molded Total Internal Reflection technology, these pods eliminate the efficiency loss found in traditional reflectors, directing every bit of light forward. Finished with a striking amber backlight, these pods deliver a high-end, modern look that keeps your vehicle visible even when the main beams are off.

Features

• Advanced Combo Optics: Merges a driving beam and a flood beam into a single unit, providing a versatile balance of long-distance punch and wide peripheral illumination.
• TIR Optic Efficiency: Custom-engineered Total Internal Reflection technology serves as both the internal reflector and the main lens, providing significantly higher intensity than standard designs.
• Sport Series Performance: Optimized for high-intensity output with a 14.5 watt draw, offering a massive boost in usable light compared to stock auxiliary lighting.

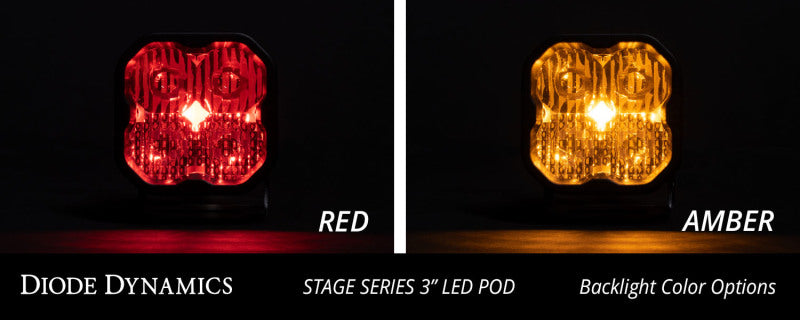

• Amber Backlight Accent: Features a secondary amber glow that fully illuminates the internal optic, functioning as a stylish accent light or daytime marker.
• Rugged American Build: Designed, tested, and assembled in the USA with a powder-coated aluminum housing and a thick polycarbonate lens to survive extreme environments.

Specs

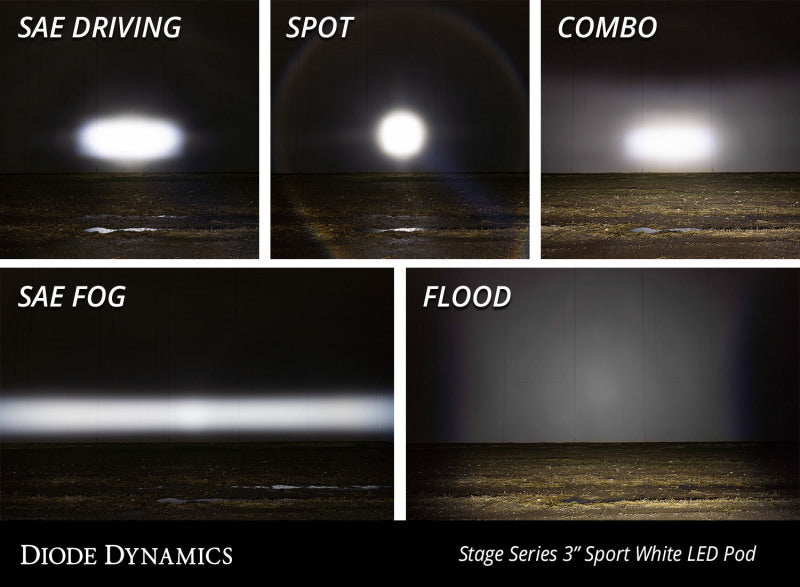

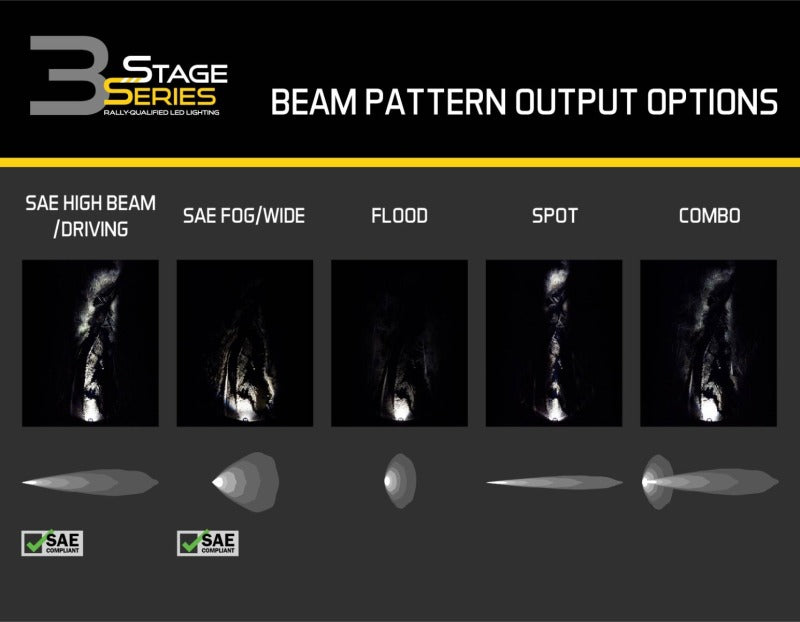

• Traffic Pattern : Combo (Driving and Flood Hybrid)
• Beam Spread : 65 x 25 Degrees
• Color Temperature : 6000K (Cool White)
• Measured Output : 1,520 Lumens
• Peak Beam Intensity : 31,500 Candela
• Wattage : 14.5W (Main Beam), 0.4W (Backlight)
• Current Draw : 1.1A @ 12.8V
• Operating Voltage : 9-30V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

Includes

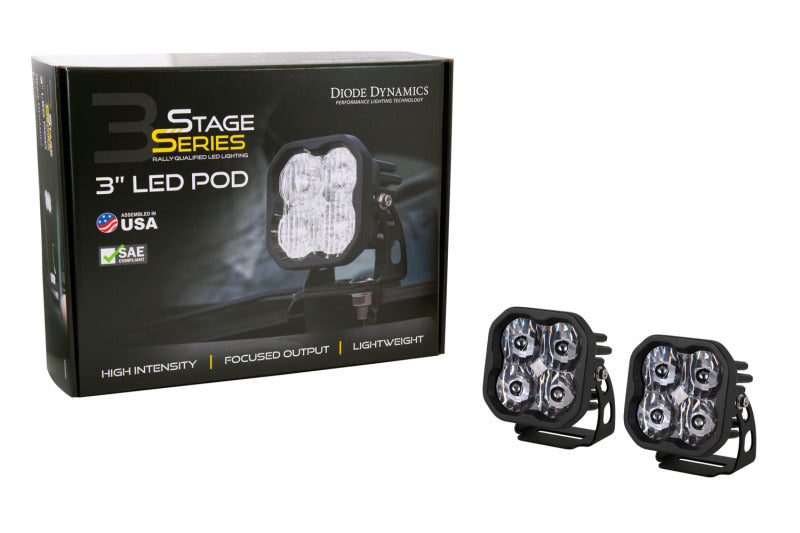

• LED Pods : One Pair of SS3 3 inch Sport LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Combo beam pattern is intended for off-road or auxiliary use
• Amber backlight requires a separate 12V power source tap if not using a dedicated Diode Dynamics harness
