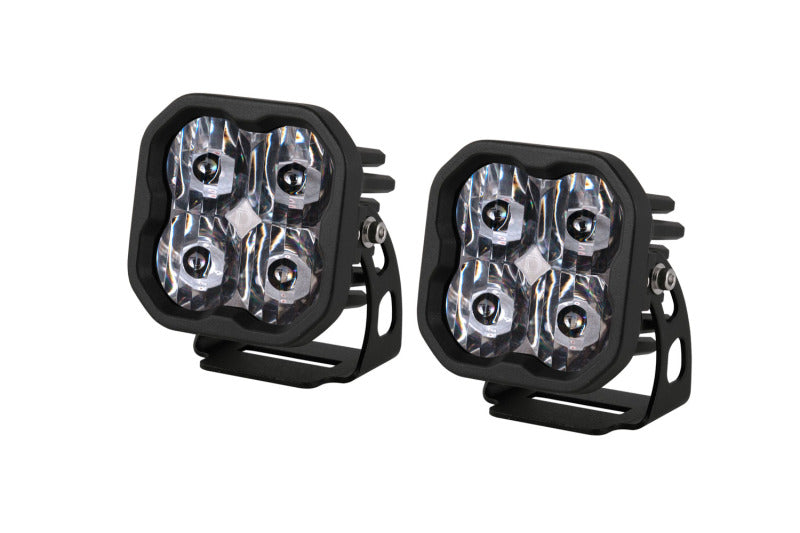

Universal SS3 Sport ABL White SAE Driving Standard LED Pods (DIODD6853P)

For drivers who need to see further down the road without sacrificing clarity, the Stage Series SS3 Sport White Driving Pods are the ultimate high-speed companion. These pods are engineered to supplement your high beams with a precision-tuned 18x8 degree spread, providing just enough width to illuminate the shoulders while focusing a powerful punch of light far into the distance. This highly functional pattern is achieved through custom-molded Total Internal Reflection optics which capture every lumen from the automotive-grade LEDs and project them exactly where they are needed. Unlike standard reflector-based lights that waste energy through internal loss and glare, the SS3 Sport maximizes efficiency for a crisp, cool white output. Complete with a distinctive amber backlight, these pods offer a sophisticated look that keeps your vehicle noticed even when the main illumination is not in use.

Features

• Precision Driving Optics: Designed with optical simulation modeling to create a functional 18x8 degree beam pattern that provides massive long-range visibility.
• Advanced TIR Technology: Custom-engineered optics serve as both the internal reflector and the primary lens, ensuring industry-leading efficiency and light collection.
• Street Legal Compliance: When aimed correctly, the driving pattern meets SAE J581 standards as a high-beam supplemental light for legal on-road use.

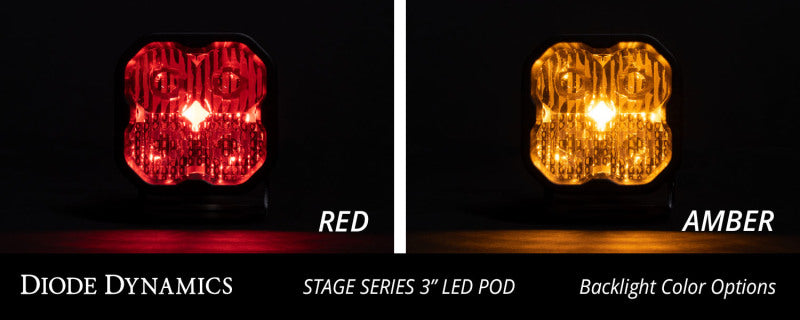

• Amber Backlight Accent: Features an integrated secondary amber glow that fully illuminates the internal TIR optic for a modern and aggressive styling accent.
• Durable Construction: Assembled in the USA using a powdercoated aluminum housing and a heavy-duty polycarbonate lens, built to endure temperatures from -40 to 185 degrees F.

Specs

• Traffic Pattern : SAE/DOT Driving
• Beam Spread : 18 x 8 Degrees
• Color Temperature : 6000K (Cool White)
• Measured Output : 1,520 Lumens
• Peak Beam Intensity : 54,700 Candela
• Wattage : 14.5W (Main Beam), 0.4W (Backlight)
• Current Draw : 1.1A @ 12.8V
• Operating Voltage : 9-30V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

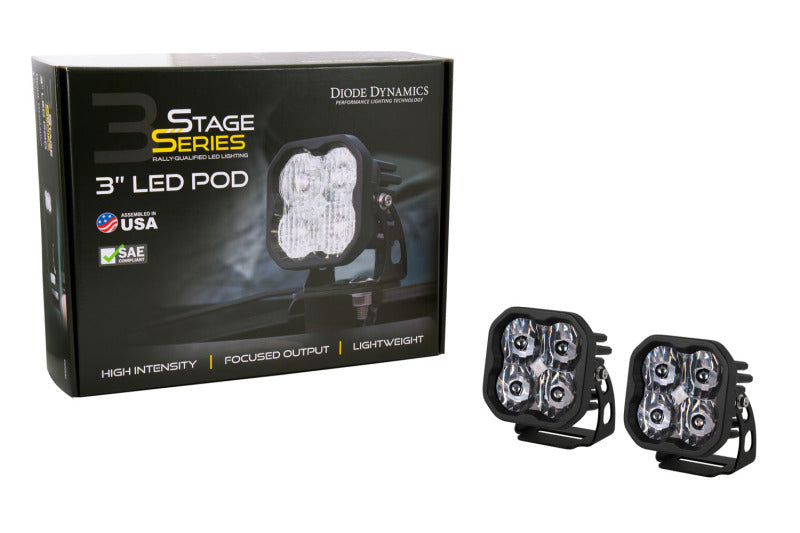

Includes

• LED Pods : One Pair of SS3 3 inch Sport LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Backlight functionality requires a separate 12V power source tap
• Meets SAE J581 standards when installed as a pair and aimed according to local regulations
