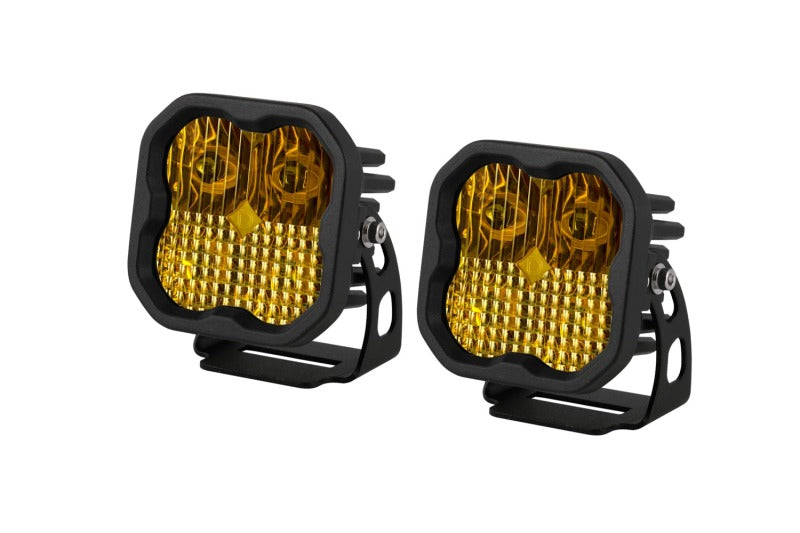

Universal SS3 Sport ABL Yellow Combo Standard LED Pods (DIODD6872P)

When your journey takes you off the beaten path, the Stage Series SS3 Sport Yellow Combo Pods provide the versatile lighting coverage needed to navigate unpredictable terrain. This specialized combo pattern is a master of multitasking, blending the long-range reach of a driving optic with the wide peripheral spread of a flood light. The result is a massive rectangular field of vision that illuminates the trail far into the distance while simultaneously highlighting obstacles on the shoulders. By utilizing high-power automotive LEDs and custom-engineered Total Internal Reflection technology, these pods achieve an efficiency level that traditional reflectors simply cannot match. The selective yellow output provides high contrast in dust or silt, and when paired with the brilliant amber backlight, these pods give your vehicle an aggressive, high-end aesthetic that stands out day or night.

Features

• Hybrid Combo Pattern: Features a driving optic on one side and a flood optic on the other, creating a balanced beam that handles both distance and width simultaneously.
• Advanced TIR Technology: Custom-molded Total Internal Reflection optics serve as both the internal reflector and main lens, directing light more efficiently than standard designs.
• Selective Yellow Performance: The 3000K color temperature is specifically chosen to cut through airborne particles like dust, rain, and fog with minimal backscatter.

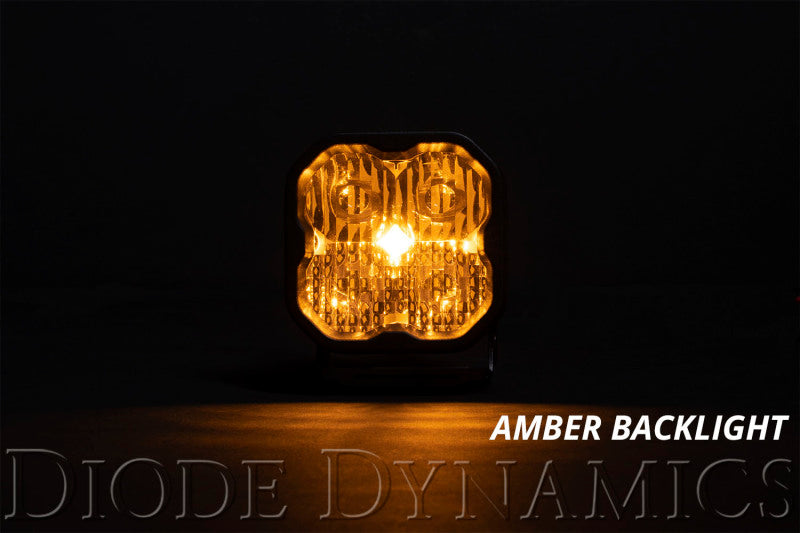

• Amber Backlight Accent: Integrated secondary amber lighting fully illuminates the internal optic, functioning as a stylish accent or marker light when the main beam is not in use.
• USA Assembled Quality: Engineered and tested for long-term operation in extreme environments, featuring a powdercoated aluminum housing and high-impact polycarbonate lens.

Specs

• Traffic Pattern : Combo (Driving and Flood Hybrid)
• Beam Spread : 65 x 25 Degrees
• Color Temperature : 3000K (Selective Yellow)
• Measured Output : 1,300 Lumens
• Peak Beam Intensity : 28,100 Candela
• Wattage : 14.5W (Main Beam), 0.4W (Backlight)
• Current Draw : 1.1A @ 12.8V
• Operating Voltage : 9-30V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

Includes

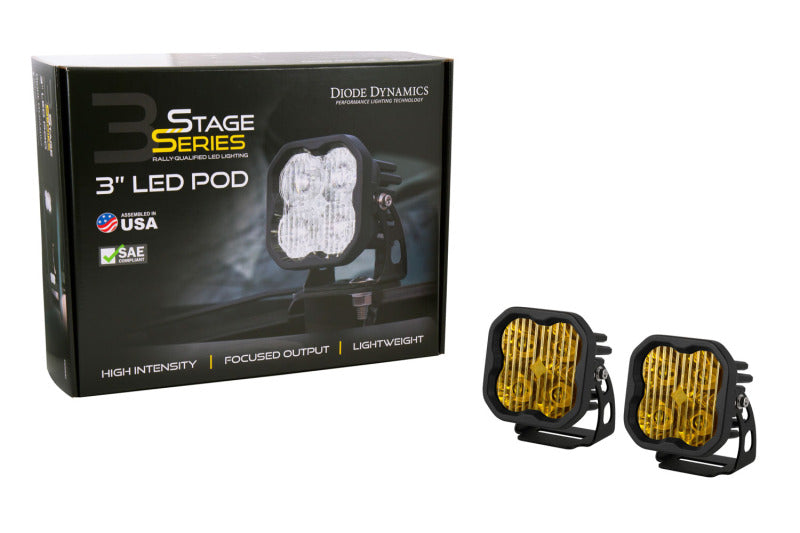

• LED Pods : One Pair of SS3 3 inch Sport LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Combo beam pattern is intended for off-road or auxiliary use only
• Backlight functionality requires a separate 12V power source tap if not using a Diode Dynamics harness
