Universal SS3 ABL Yellow SAE Fog Standard Sport LED Pods (DIODD6869P)

When the road ahead disappears into a wall of mist or snow, the Stage Series SS3 Sport Yellow SAE Fog Pods are your most reliable companion. These pods are designed to redefine your foul-weather driving experience by projecting a rich 3000K selective yellow light that pierces through airborne moisture with minimal backscatter. Built for precision rather than raw, blinding glare, these lights utilize custom-engineered Total Internal Reflection optics to focus every lumen into a wide and functional 80-degree beam. This creates a sharp, horizontal cutoff that keeps light exactly where it belongs, on the pavement and away from the eyes of oncoming drivers. With the addition of a brilliant amber backlight, these pods serve as both a high-performance safety upgrade and a bold visual statement for your vehicle's front end.

Features

• High-Efficiency TIR Optics: Custom-molded Total Internal Reflection technology captures all light from the LEDs and directs it into a useful pattern, far exceeding the performance of traditional reflectors.
• Selective Yellow Output: The 3000K color temperature is engineered to provide maximum contrast in rain, fog, and snow while reducing eye strain during difficult driving conditions.
• Street Legal Compliance: Fully tested to meet SAE J583 standards for fog lamp use, making these pods a legal and functional upgrade for on-road use.

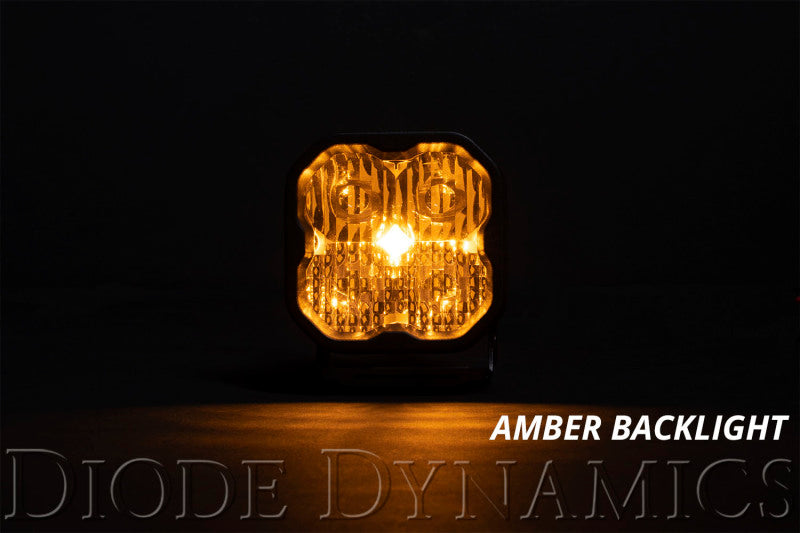

• Amber Backlight Accent: Integrated secondary amber lighting fully illuminates the internal optic, providing a high-end look and additional visibility even when the main beams are off.
• Rugged Construction: Assembled in the USA with a powdercoated aluminum housing and a durable polycarbonate lens to handle the harshest environments.

Specs

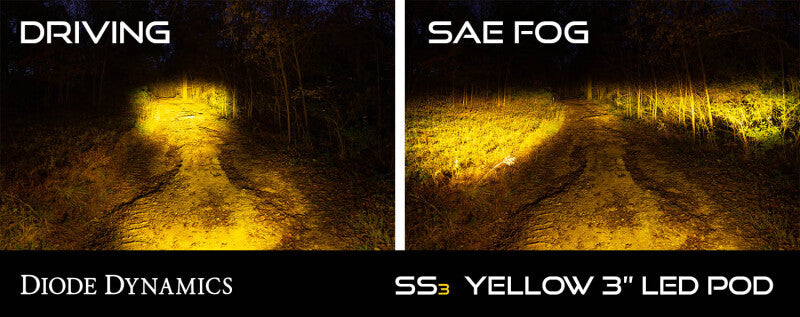

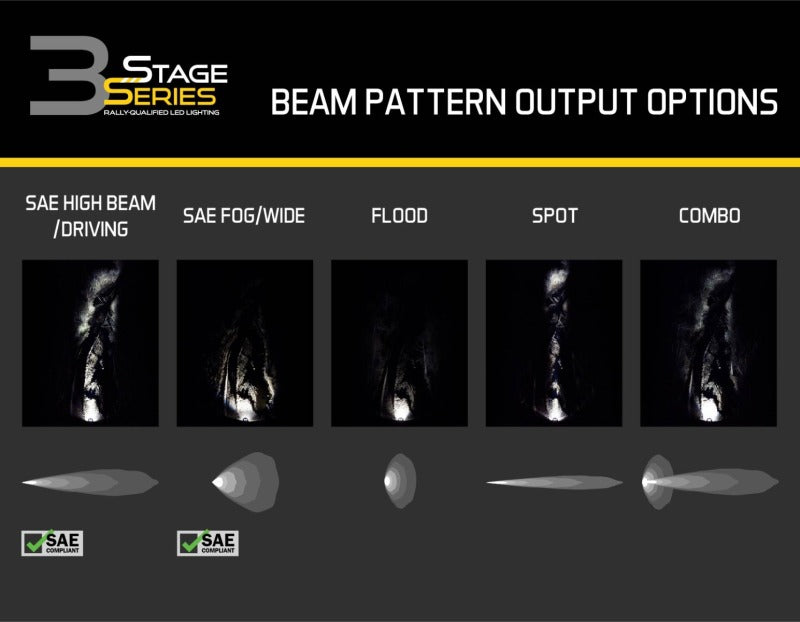

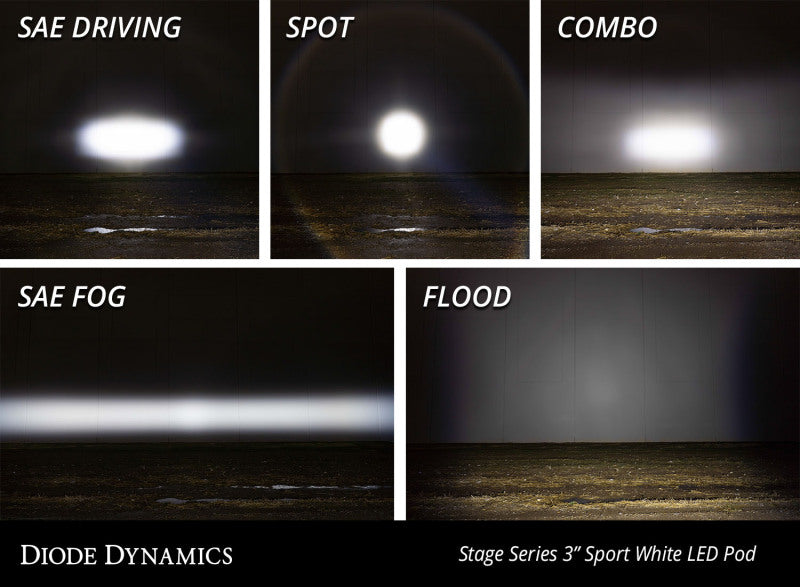

• Traffic Pattern : SAE Fog (80 Degree Spread)
• Color Temperature : 3000K (Selective Yellow)
• Measured Output : 1,300 Lumens

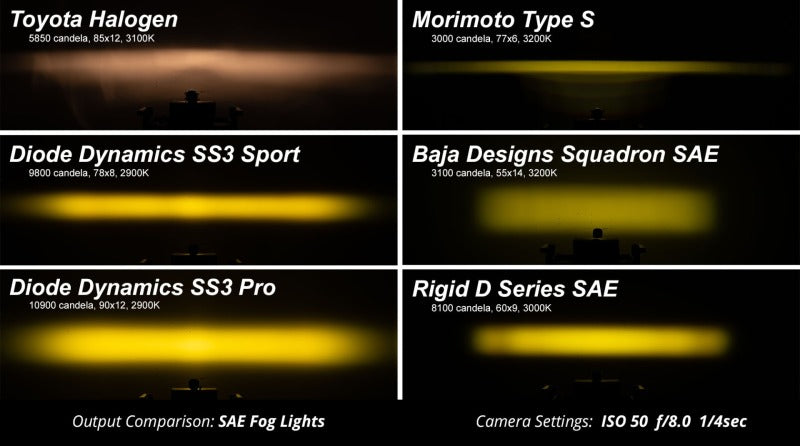

• Peak Beam Intensity : 9,050 Candela
• Wattage : 14.5W (Main Beam), 0.4W (Backlight)
• Current Draw : 1.1A @ 12.8V
• Operating Voltage : 9-30V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

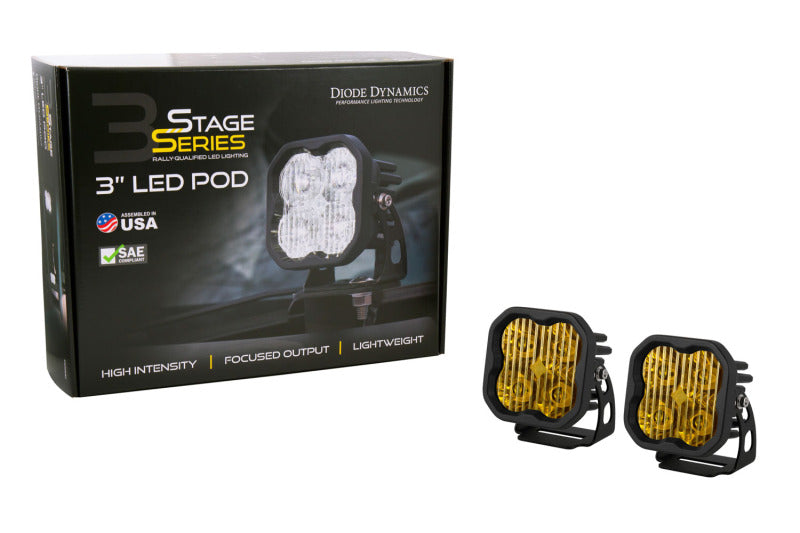

Includes

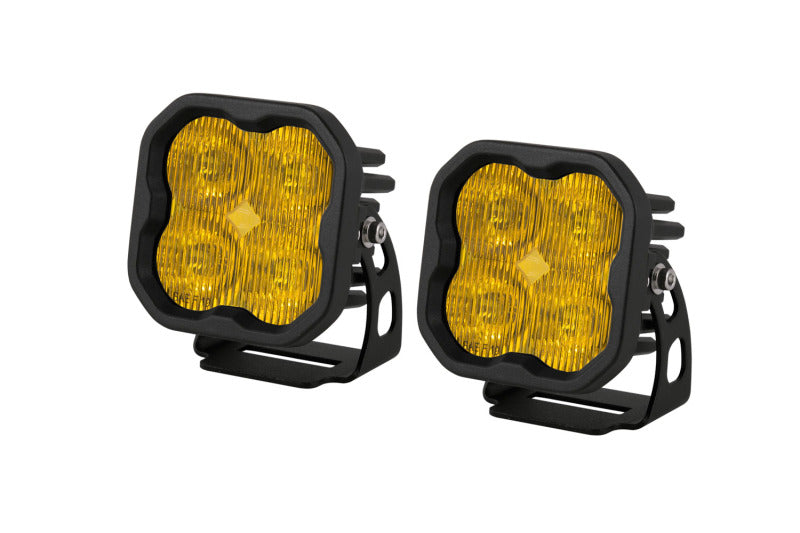

• LED Pods : One Pair of SS3 3 inch Sport LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Backlight functionality requires a separate 12V power source tap or dedicated harness
• Maintains SAE J583 compliance when aimed correctly according to local laws
