Universal SS5 Pro White Combo LED Pods (DIODD6775P)

If you are ready to dominate the darkness with a lighting solution that leaves nothing to chance, the Stage Series SS5 White Pro Combo Pods are your answer to absolute illumination. These pods are engineered for maximum versatility, merging a long-range driving beam with a wide-angle flood optic into a single, high-performance package. The result is a massive 70x30 degree field of vision that provides extreme distance down the trail while simultaneously flooding the immediate foreground and shoulders with light. This superior performance is driven by custom-molded Total Internal Reflection optics that serve as both the internal reflector and the primary lens, ensuring zero light is lost to internal scatter or glare. Beyond raw power, these pods feature a unique selectable backlight with eight different color options, allowing you to customize your vehicle's look with the flick of a switch. Whether you are building a custom light bar or upgrading your off-road rig, these pods deliver professional-grade optics in a heavy-duty housing built for the most brutal environments.

Features

• High-Output Combo Pattern: Features a dedicated row of driving optics paired with flood optics on the top and bottom to provide a perfect balance of distance and peripheral spread.
• Patented TIR Optics: Custom-engineered Total Internal Reflection technology directs every bit of light from the high-intensity LEDs exactly where you need it, outperforming traditional reflectors.

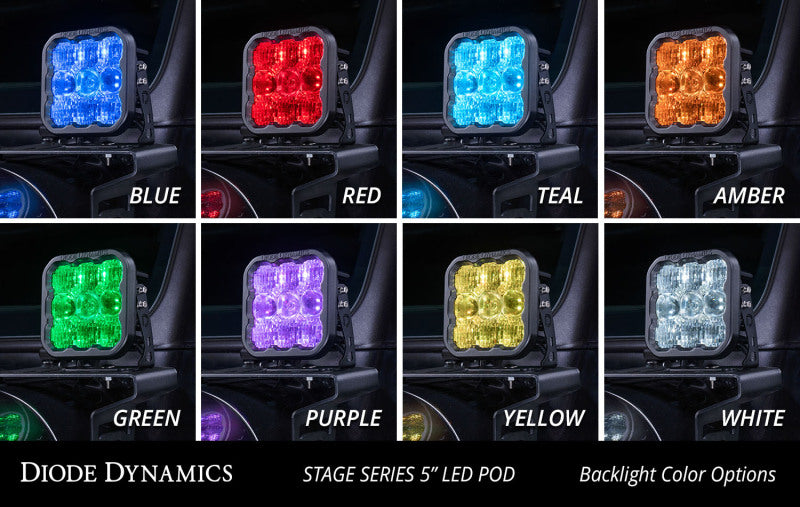

• Selectable Backlight: Includes an integrated backlight with eight different color options, easily controlled without complicated programming or external controllers.
• CrossLink Linking Feature: Patent-pending technology allows you to link multiple pods together using high-rigidity CNC aluminum links to create a custom light bar configuration.
• Torture-Tested Durability: Designed and assembled in the USA with a heavy-duty aluminum casting and high-impact polycarbonate lens, tested for vibration and extreme temperature operation.

Specs

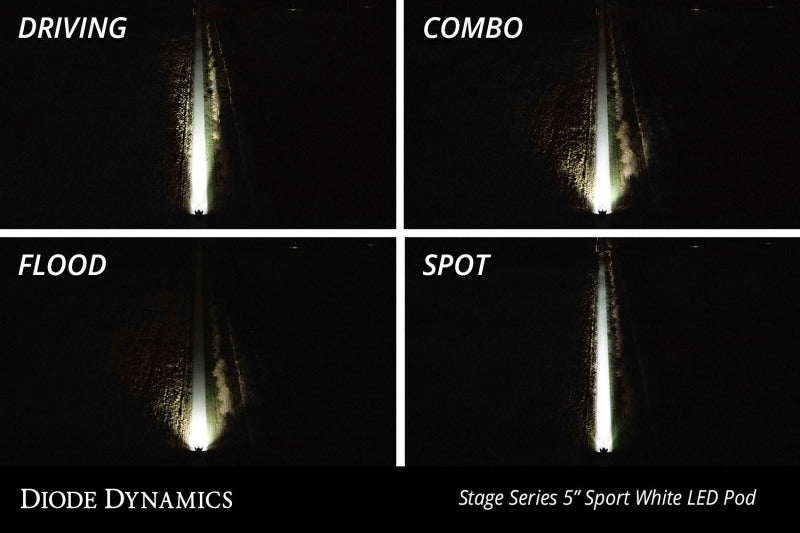

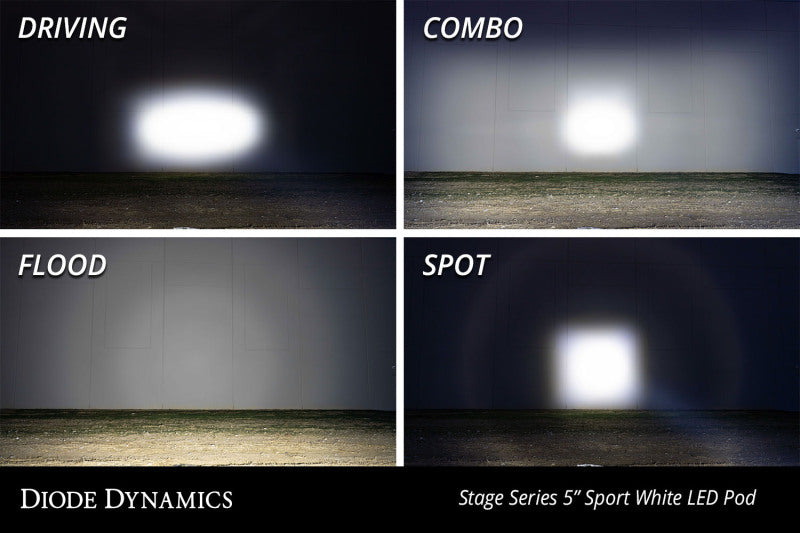

• Traffic Pattern : Combo (Driving and Flood Hybrid)
• Beam Spread : 70 x 30 Degrees
• Color Temperature : 6000K (Cool White)
• Measured Output : 9,600 Lumens
• Peak Beam Intensity : 75,700 Candela
• Wattage : 90W (Main Beam), 3.17W (Backlight)
• Current Draw : 6.7A @ 12.8V
• Operating Voltage : 9-16V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

Includes

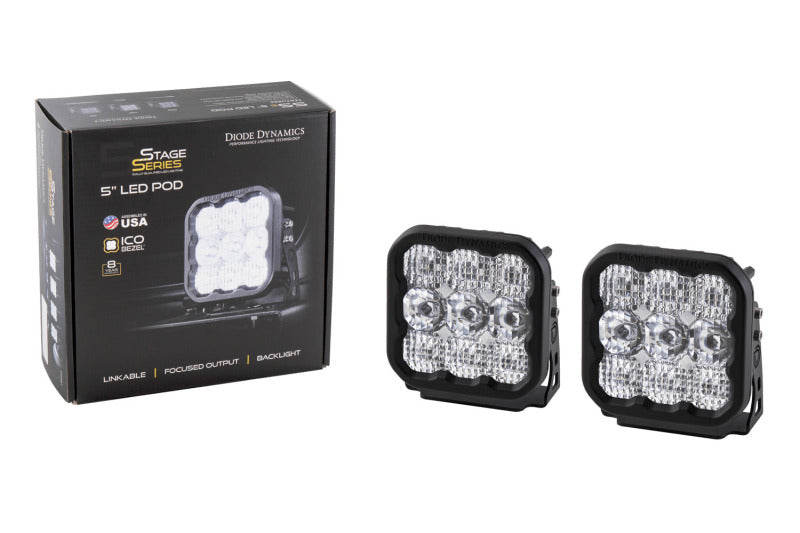

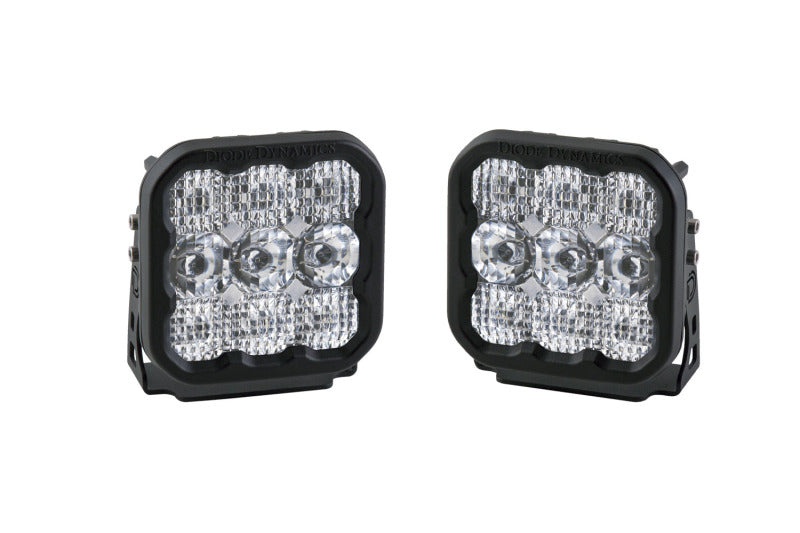

• LED Pods : One Pair of SS5 5 inch Pro LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Backlight color is selected by quickly toggling the power on and off
• Main beam is intended for off-road or auxiliary use only
