Universal SS5 Sport White Combo LED Pods (DIODD6769P)

For those who demand maximum distance and uncompromising intensity, the Stage Series SS5 White Pro Spot Pods are the ultimate long-range solution. These 5-inch powerhouses are engineered to punch through the dark, delivering a highly focused 20-degree beam of light that reaches nearly half a mile away. While other lights scatter their output, the SS5 Pro utilizes patented Total Internal Reflection optics to capture every bit of light from the high-intensity emitters and direct it exactly where you need it. This focus makes them the perfect choice for A-pillars, bumper mounts, or roof racks where long-distance visibility is critical for safety at speed. Beyond the raw performance of the main beam, these pods feature a selectable backlight with eight different colors, allowing you to personalize your vehicle’s look with ease. Built to withstand the most extreme environments, these pods offer professional-grade optics in a rugged, heavy-duty housing that is ready for any challenge.

Features

• Ultra-Focused Spot Pattern: Features a 20-degree beam of light designed for extreme distance and maximum intensity, outperforming standard 5-inch pods on the market.
• Patented TIR Optics: Custom-engineered Total Internal Reflection technology serves as both the optic and the main lens, providing unparalleled efficiency and a cleaner beam than traditional reflectors.

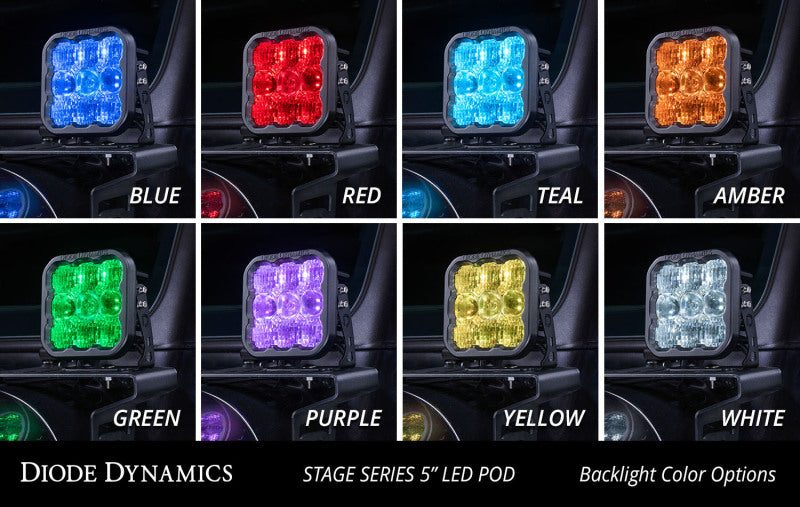

• Selectable Backlight: Includes an integrated backlight with eight different color options, easily cycled through by toggling the power for a custom styling accent.
• CrossLink Linking System: Patent-pending technology enables you to link multiple pods together using rigid CNC aluminum links, perfect for creating custom-sized straight or curved light bars.
• American-Assembled Quality: Designed and tested in the USA with a powdercoated aluminum housing and high-impact polycarbonate lens for extreme durability in any climate.

Specs

• Traffic Pattern : Spot
• Beam Spread : 20 Degrees
• Color Temperature : 6000K (Cool White)
• Measured Output : 9,600 Lumens
• Peak Beam Intensity : 286,000 Candela
• Wattage : 90W (Main Beam), 3.17W (Backlight)
• Current Draw : 6.7A @ 12.8V
• Operating Voltage : 9-16V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

Includes

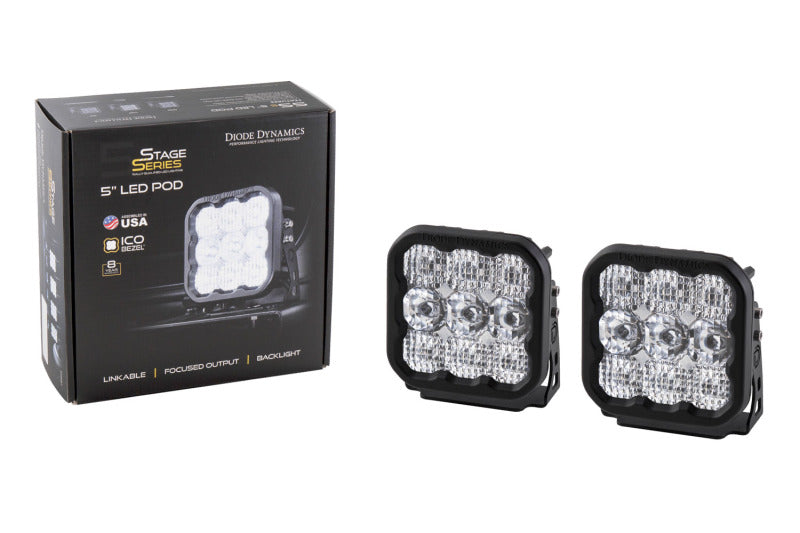

• LED Pods : One Pair of SS5 5 inch Pro LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Backlight color is selected by alternating power on and off until the desired color is reached
• Spot beam pattern is intended for off-road or auxiliary use only
