Universal Stage Series 2" Sport White Driving Standard ABL LED Pod (DIODD6382P)

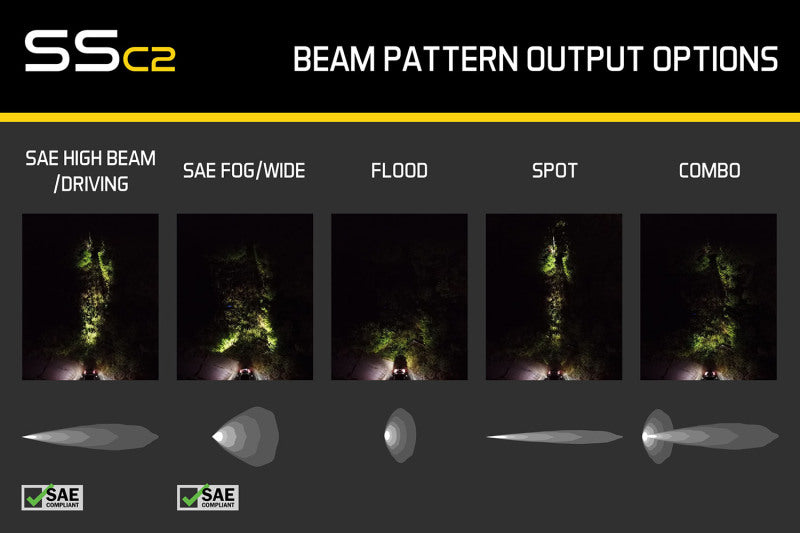

For drivers seeking to enhance their long-range visibility without compromising on-road legality, the Stage Series C2 1.0 White Sport Driving Pods are the ultimate high-speed upgrade. These compact 2 inch units are engineered to supplement your factory high beams by projecting a focused 18x8 degree rectangular beam pattern. This precision-tuned spread provides the distance needed to see far down the road while maintaining enough width to illuminate the shoulders. The secret to this performance lies in the custom-molded Total Internal Reflection optics, which capture every lumen from the high-intensity LEDs and direct it forward with maximum efficiency.

Features

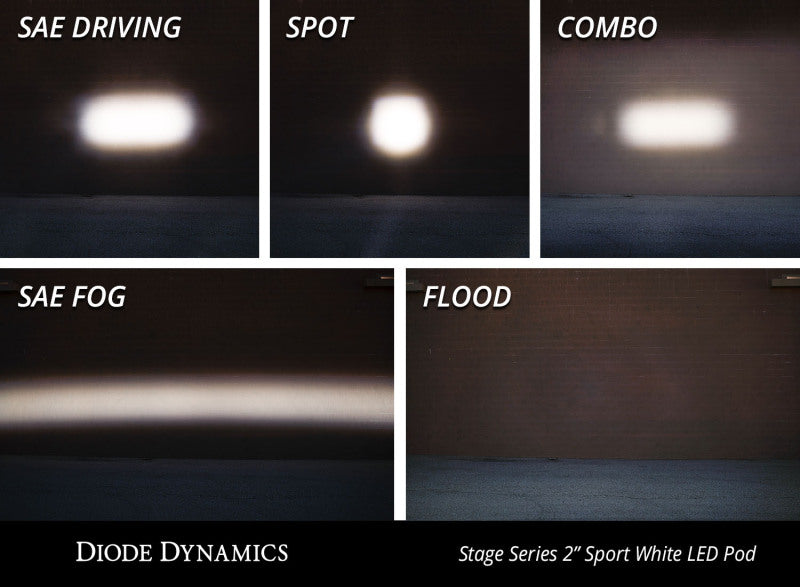

• Precision Driving Optics: Engineered with advanced optical simulation to create a functional 18x8 degree beam pattern for superior long-range illumination.
• Advanced TIR Technology: Custom-molded Total Internal Reflection optics serve as both the internal reflector and main lens, ensuring industry-leading efficiency and light collection.
• Street Legal Compliance: When installed as a pair and aimed correctly, the driving pattern meets SAE J581 standards as a Driving/Auxiliary High Beam Light for legal on-road use.

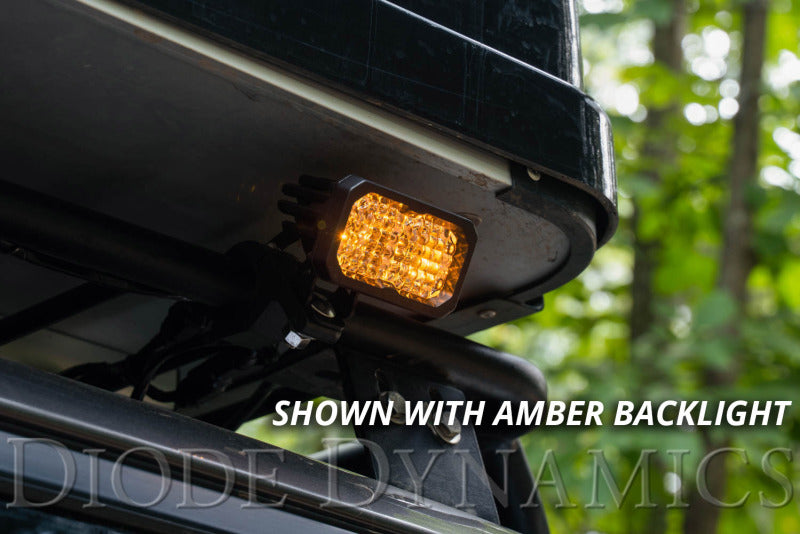

• Amber Backlight Accent: Features an integrated secondary amber glow that fully illuminates the TIR optic, providing a unique accent light even when the main beam is off.
• Torture-Tested Durability: Designed, tested, and assembled in the USA with a powdercoated aluminum housing and thick polycarbonate lens to survive extreme vibration and weather.

Specs

• Traffic Pattern : SAE/DOT Driving
• Beam Spread : 18 x 8 Degrees
• Color Temperature : 6000K (Cool White)
• Measured Output : 871 Lumens
• Peak Beam Intensity : 37,500 Candela
• Wattage : 12.8W (Main Beam), 0.7W (Backlight)
• Current Draw : 1A @ 12.8V
• Operating Voltage : 9-16V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

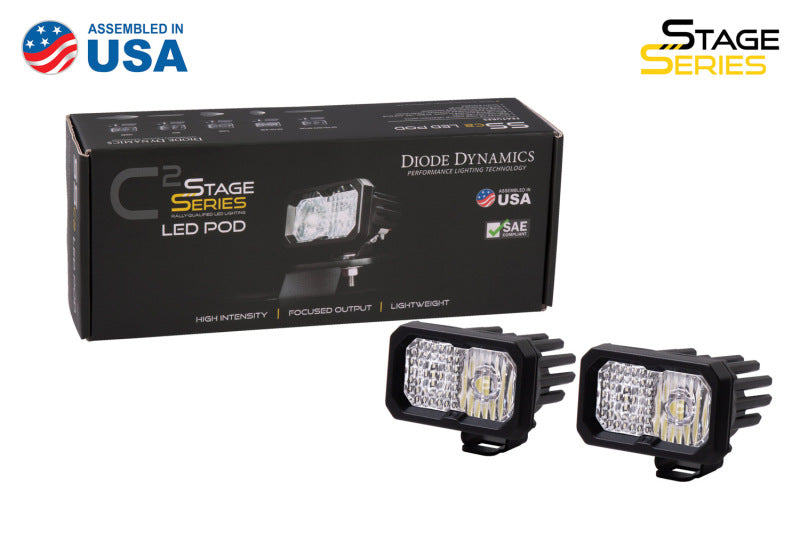

Includes

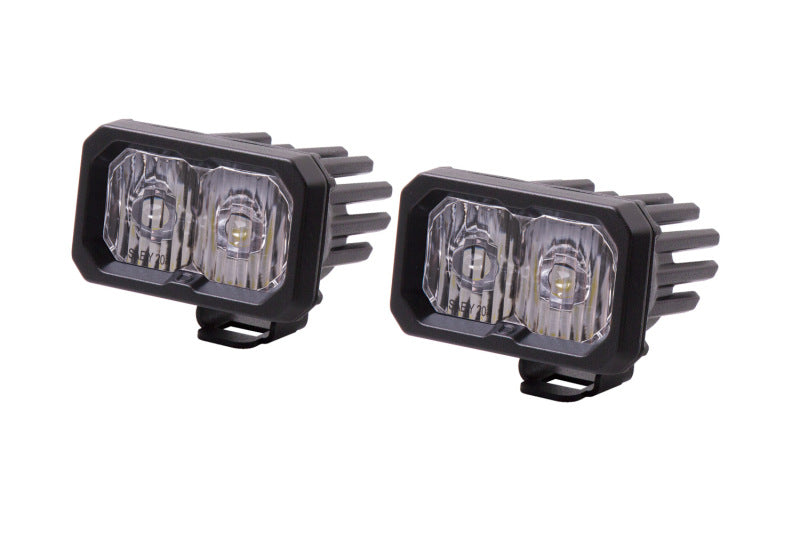

• LED Pods : One Pair of C2 2 inch Sport LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Maintains SAE J581 compliance when installed as a pair and aimed according to local regulations
• Amber backlight requires a separate 12V power source tap if not using a dedicated Diode Dynamics harness
