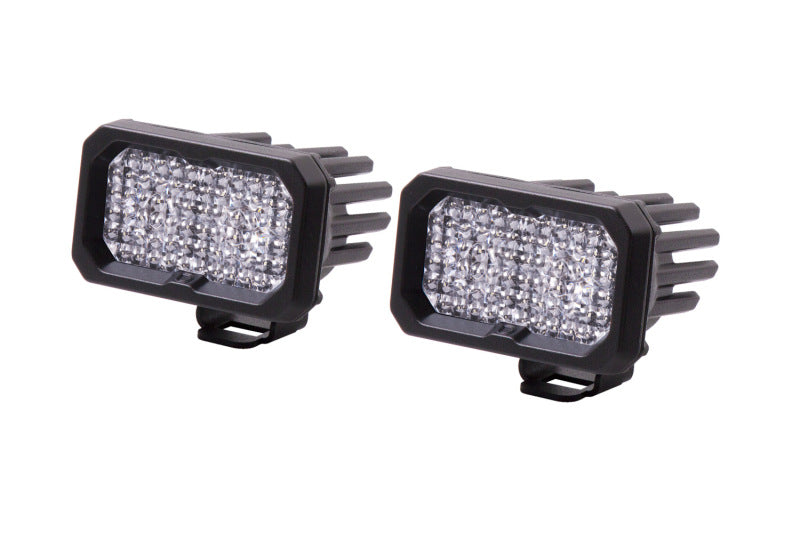

Universal Stage Series 2" Sport White Flood Standard RBL LED Pod (DIODD6394P)

When you need to turn the immediate area around your vehicle into a clear, usable workspace, the Stage Series C2 1.0 White Sport Flood Pods are the ideal choice. These ultra-compact 2 inch pods are engineered to deliver uniform, even illumination across a massive 60x60 degree spread, eliminating the hot spots and dark edges found in generic auxiliary lights. By utilizing custom-molded Total Internal Reflection technology, the C2 Sport captures light directly from the LEDs and projects it outward with incredible efficiency. This makes them perfect for use as backup lights, campsite illumination, or scene lighting on trailers and work trucks.

Features

• Uniform Flood Pattern: Features a true optically designed 60x60 degree spread using pillow optics on the lens surface for smooth, even area illumination.
• Advanced TIR Technology: Custom-engineered Total Internal Reflection optics serve as both the internal reflector and main lens, ensuring maximum light collection and focus.

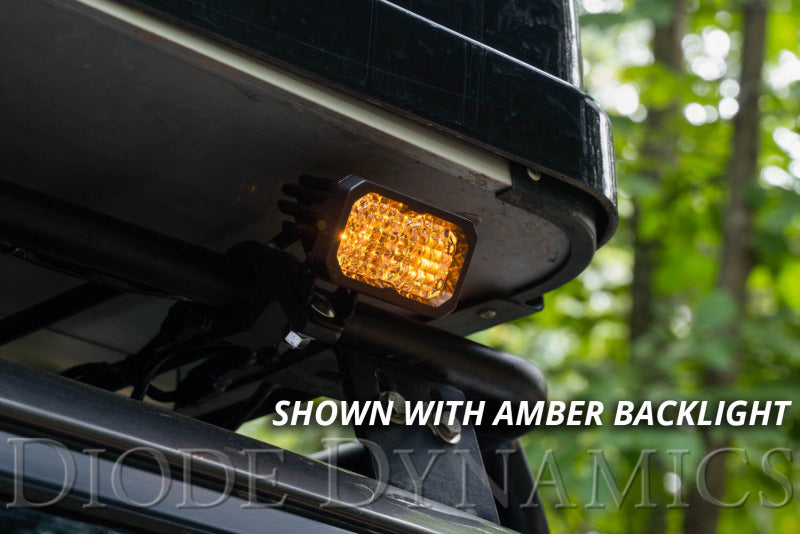

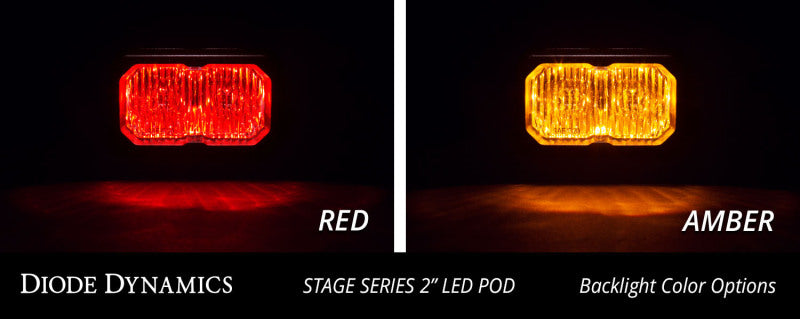

• Red Backlight Accent: Features a distinctive integrated red secondary glow that illuminates the TIR optic for a modern styling element or rear-facing marker.
• Compact Versatility: The small 2 inch form factor allows for seamless mounting in tight locations like bumpers, roof racks, or behind grilles where larger pods won't fit.
• USA Assembled Durability: Built to handle the toughest environments with a powdercoated aluminum housing and high-impact polycarbonate lens, torture-tested to SAE standards.

Specs

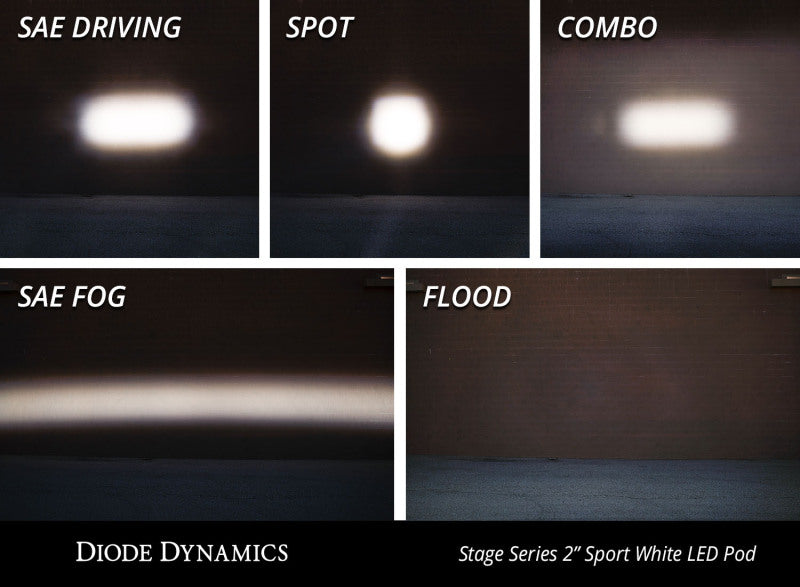

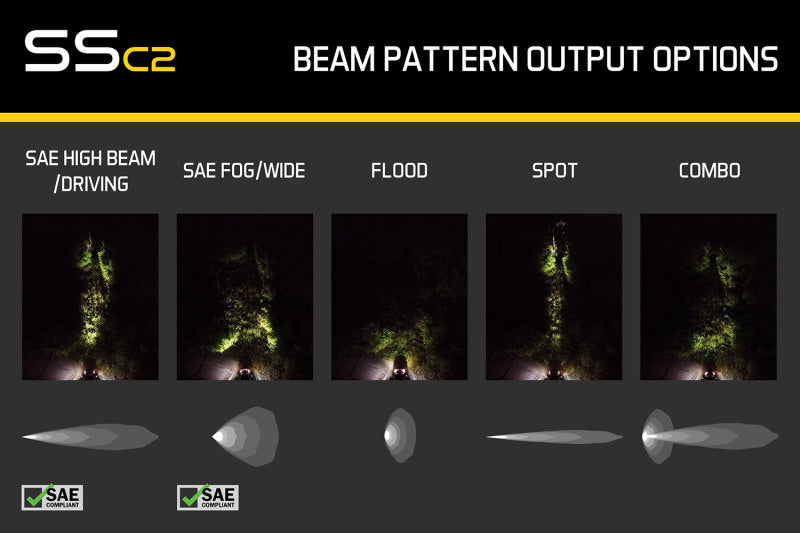

• Traffic Pattern : Flood
• Beam Spread : 60 x 60 Degrees
• Color Temperature : 6000K (Cool White)
• Measured Output : 871 Lumens
• Peak Beam Intensity : 375 Candela
• Wattage : 12.8W (Main Beam), 0.7W (Backlight)
• Current Draw : 1A @ 12.8V
• Operating Voltage : 9-16V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

Includes

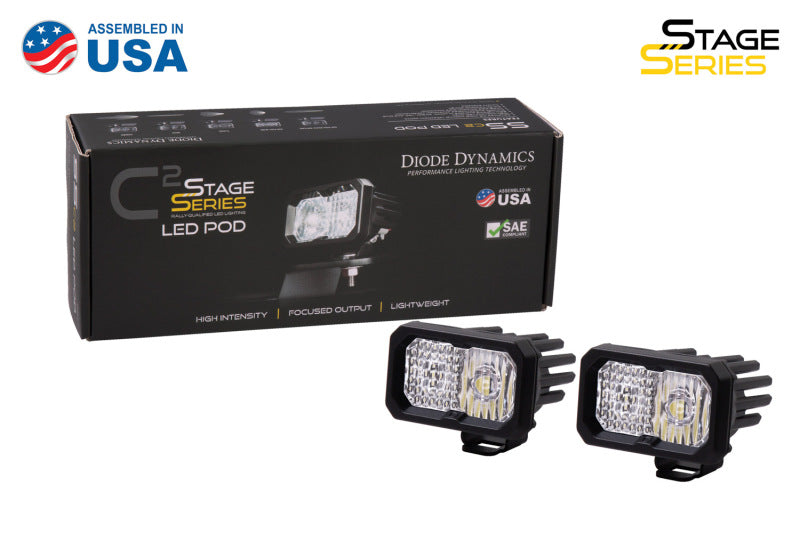

• LED Pods : One Pair of C2 2 inch Sport LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Flood beam pattern is intended for off-road or auxiliary use only
• Red backlight requires a separate 12V power source tap if not using a dedicated Diode Dynamics harness
