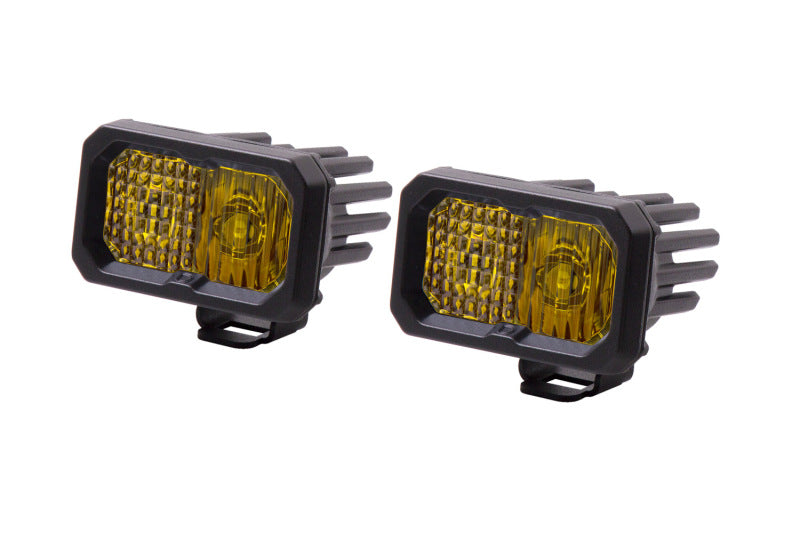

Universal Stage Series 2" Sport Yellow Combo Standard ABL LED Pod (DIODD6391P)

When your off-road adventures demand a versatile lighting solution in a small package, the Stage Series C2 1.0 Yellow Sport Combo Pods provide the perfect tactical edge. This hybrid optic design is a master of multitasking, blending the long-range reach of a driving beam with the wide-angle spread of a flood light. The result is a highly functional 40x20 degree rectangular pattern that illuminates obstacles far down the trail while simultaneously highlighting the immediate foreground and shoulders. By utilizing high-intensity LEDs and custom-molded Total Internal Reflection technology, these pods achieve an efficiency level that traditional reflectors cannot match. The selective yellow output is specifically engineered to cut through airborne particles like dust, rain, and silt by providing high contrast and reducing eye-straining glare.

Features

• Hybrid Combo Beam: Features a unique lens design that combines driving and flood optics for a balanced 40x20 degree spread of distance and width.
• Advanced TIR Optics: Custom-engineered Total Internal Reflection technology serves as both the optic and the main lens, maximizing light collection and reducing internal efficiency loss.
• Selective Yellow Performance: The 3000K color temperature is optimized for foul weather and high-dust environments, offering superior contrast compared to standard white lighting.

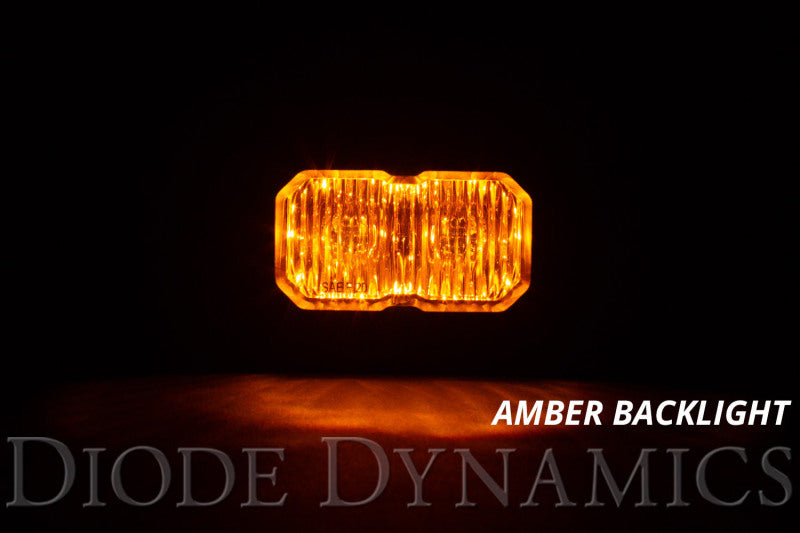

• Integrated Accent Backlight: Includes a distinctive secondary glow that fully illuminates the internal TIR optic for a modern, high-end styling accent.
• Torture-Tested Durability: Designed and assembled in the USA with a powdercoated aluminum housing and thick polycarbonate lens to survive extreme vibration and weather.

Specs

• Traffic Pattern : Combo (Driving and Flood Hybrid)
• Beam Spread : 40 x 20 Degrees
• Color Temperature : 3000K (Selective Yellow)
• Measured Output : 871 Lumens
• Peak Beam Intensity : 16,000 Candela
• Wattage : 12.8W (Main Beam), 0.7W (Backlight)
• Current Draw : 1A @ 12.8V
• Operating Voltage : 9-16V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

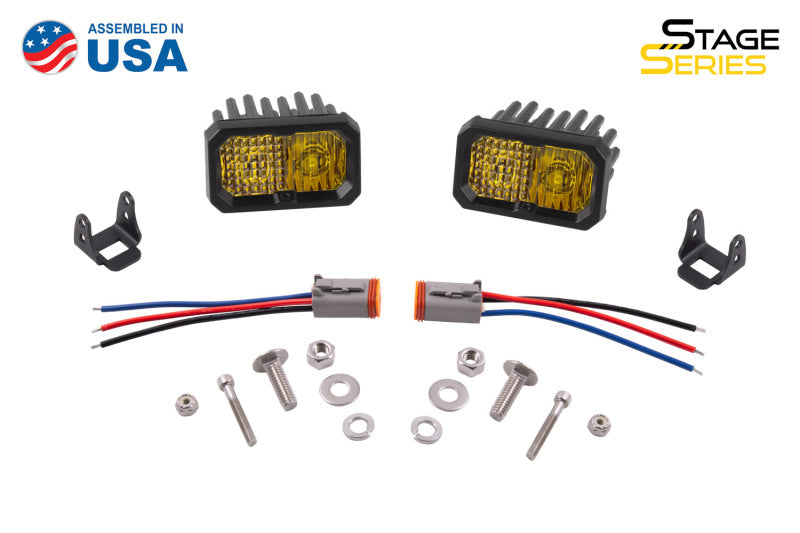

Includes

• LED Pods : One Pair of C2 2 inch Sport LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Combo beam pattern is intended for off-road or auxiliary use only
• Backlight functionality requires a separate 12V power source tap if not using a dedicated Diode Dynamics harness
